Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Roof panel rear trim

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Internal trim › Roof panel rear trim
BodyworkRoof panel rear trim

Refit the roof panel by reversing the procedure followed for removal and note the following:

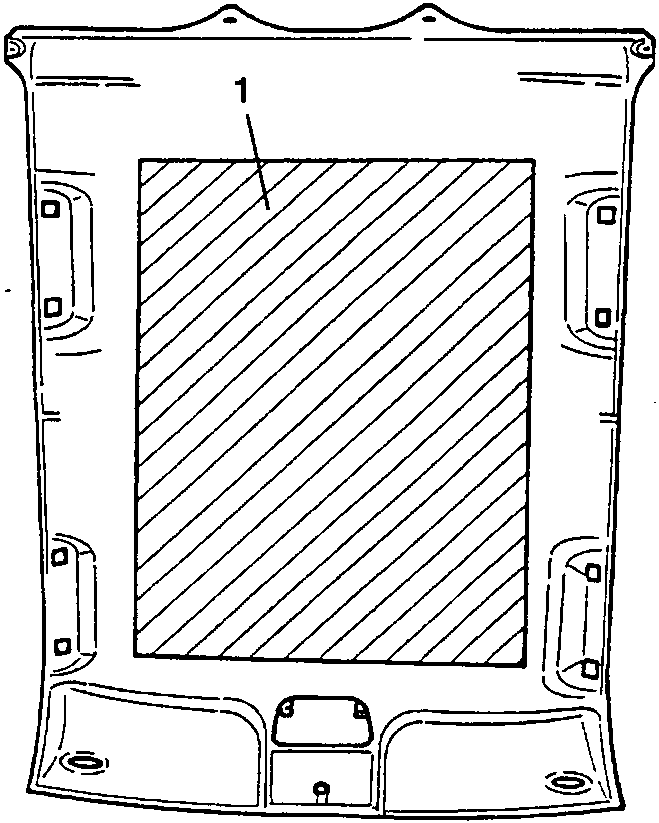

  1. Apply the specified glue to the new inner and outer roof panels as shown in the diagram.
Diagram showing roof panel with glued area marked 1.

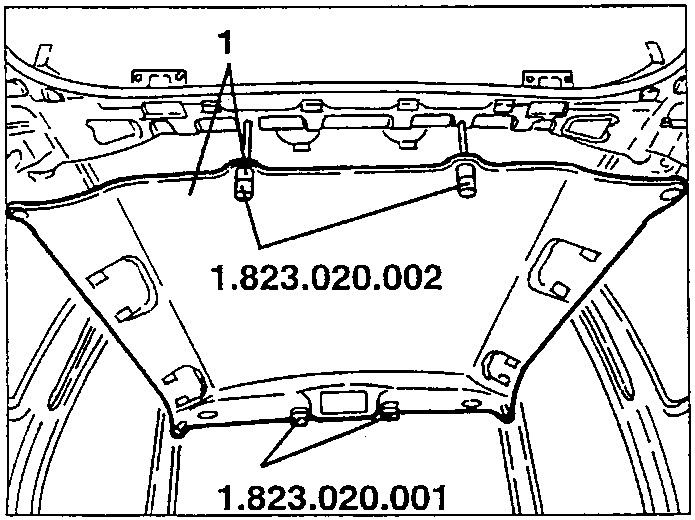

  1. Position the roof panel using guide pins 1.823.020.002 and 1.823.020.001 as shown in the diagram and press it using your hand around the glued parts.
Diagram showing roof panel with guide pins 1.823.020.002 and 1.823.020.001 marked.
  • Remove the centering pins and install the plastic nails in their place to secure the roof panel.

ROOF PANEL REAR TRIM

REMOVAL/REFITTING

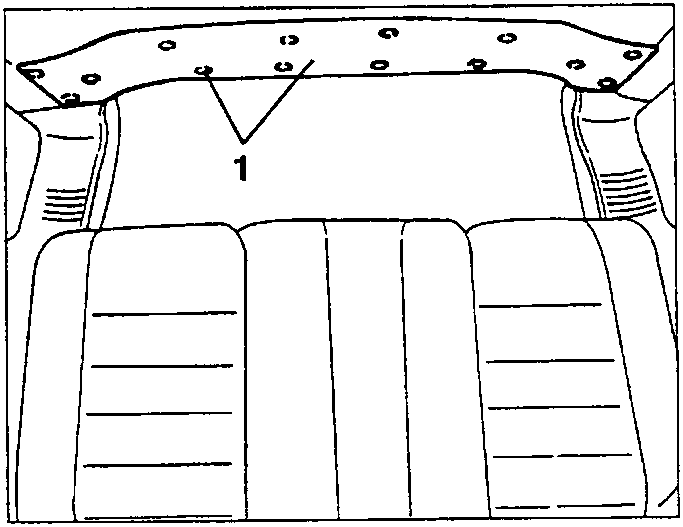

  1. Pull the rear trim on the roof panel away from the plastic nails positioned as shown in the diagram and remove .
Diagram showing rear trim with plastic nails marked 1.

HEEL REST

REMOVAL/REFITTING

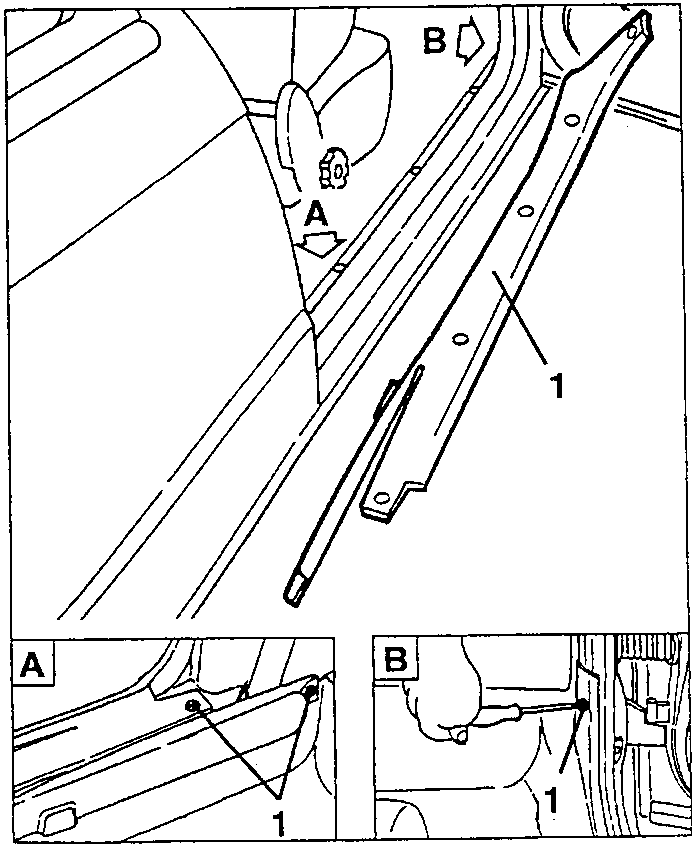

  1. Loosen the six screws securing the heel rest and remove .
Diagram showing heel rest with screws marked A and B.
