Disassembling/reassembling driver’s seat (without height adjustment)

NOTE: The following components can be removed/refitted from/to the seat whilst it is in the vehicle by following the operations described in the section relative to the bench disassembly of the seat and extrapolating the relative operations: • Headrest • Height adjustment device • Backrest tilt handle.

DISASSEMBLING/REASSEMBLING DRIVER’S SEAT (WITHOUT HEIGHT ADJUSTMENT)

Disassemble as described for the seat with height adjustment except for the procedure relative to the removal of the guide runners which is described below.

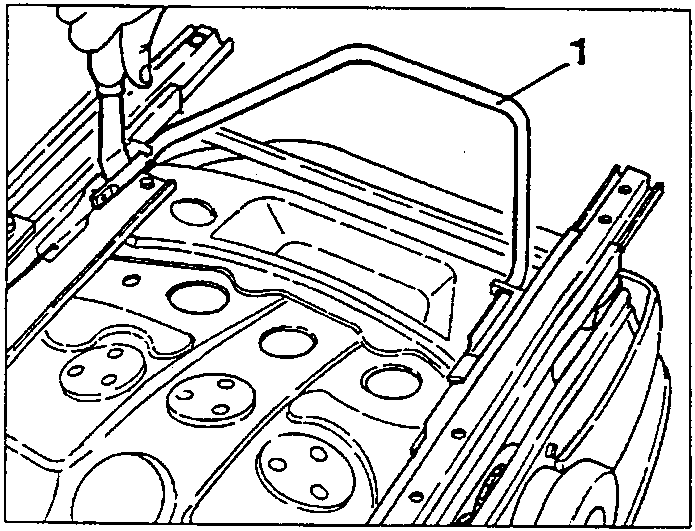

1. Remove the seat runner lever and pull it away from its attachments.

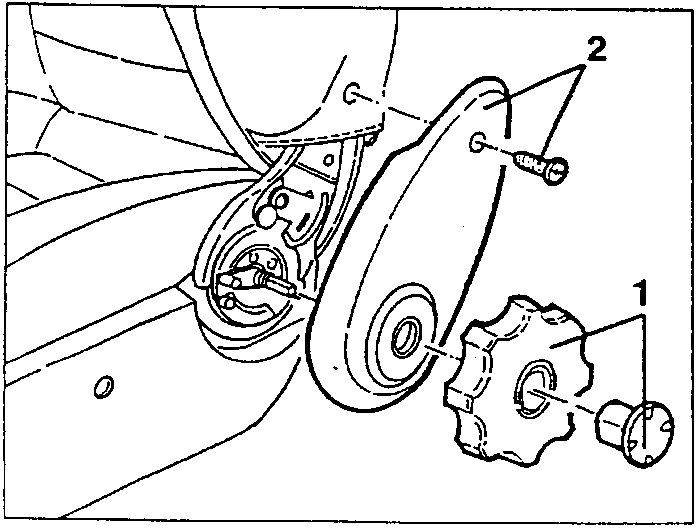

1. Pull off the cap and remove the backrest tilt handle. 2. Loosen the screw and remove the left-hand hinge moulding pulling it away from the clips.

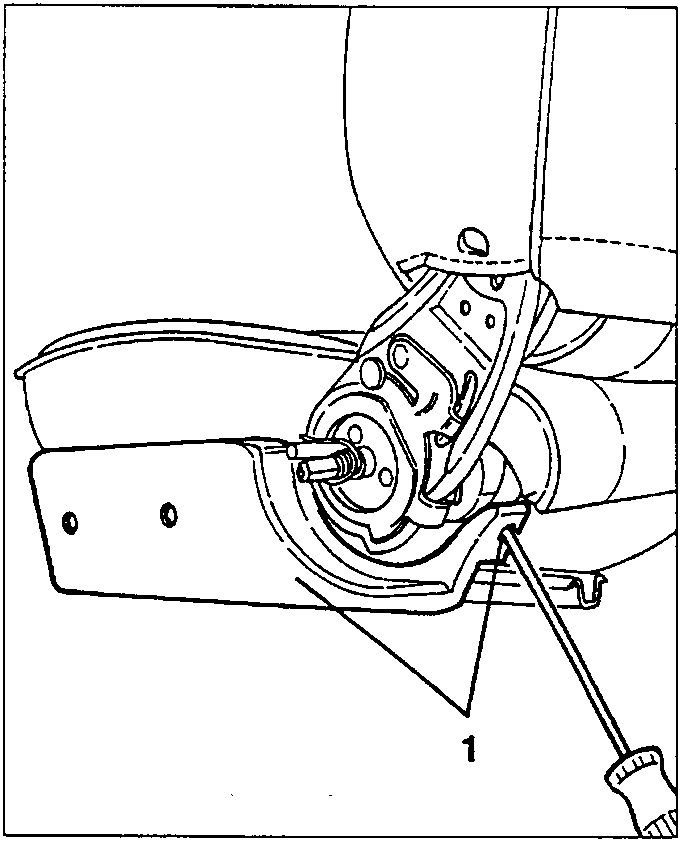

1. Loosen the three screws and remove the lower moulding from the cushion.

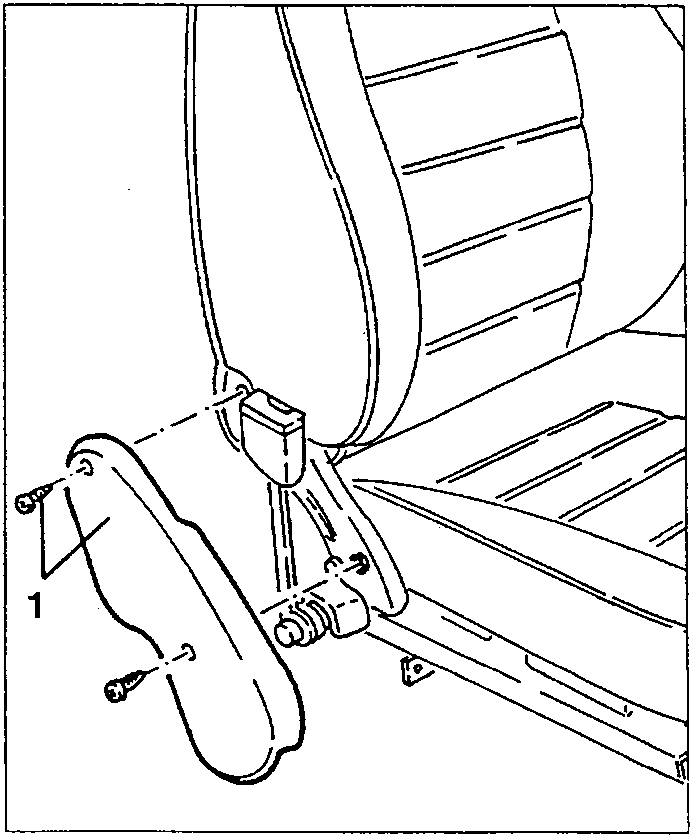

1. Loosen the two screws and remove the right-hand hinge moulding pulling it away from the clips.
