LUGGAGE COMPARTMENT SIDE TRIM

REMOVAL/REFITTING

  • Remove the side shelves supporting the hatshelf (see specific paragraph).
  • Tip the luggage compartment lower trim forward.
  1. Loosen the two screws securing the luggage compartment side trim.
  2. Pull off the plastic buttons and remove the luggage compartment side trim.
Luggage compartment lower trim with callout 1

SIDE SHELVES SUPPORTING THE HATSHelf

REMOVAL/REFITTING

  • Remove the hatshelf (see specific paragraph).
  • Tip the rear seat back-rest forward.
  1. Pull the roof light from its seating and without disconnecting the electrical connections, replace it in the attachment hole freeing it from the shelf.

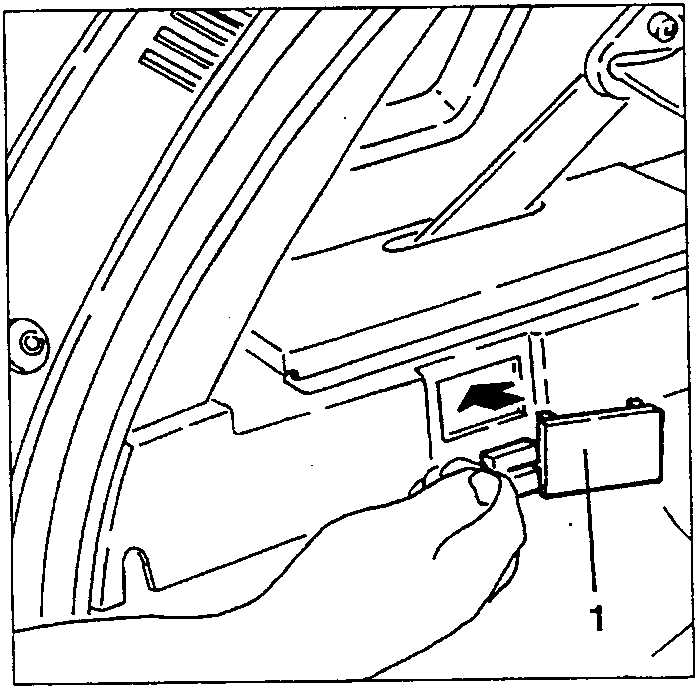

Hand pulling a roof light from its seating with callout 1

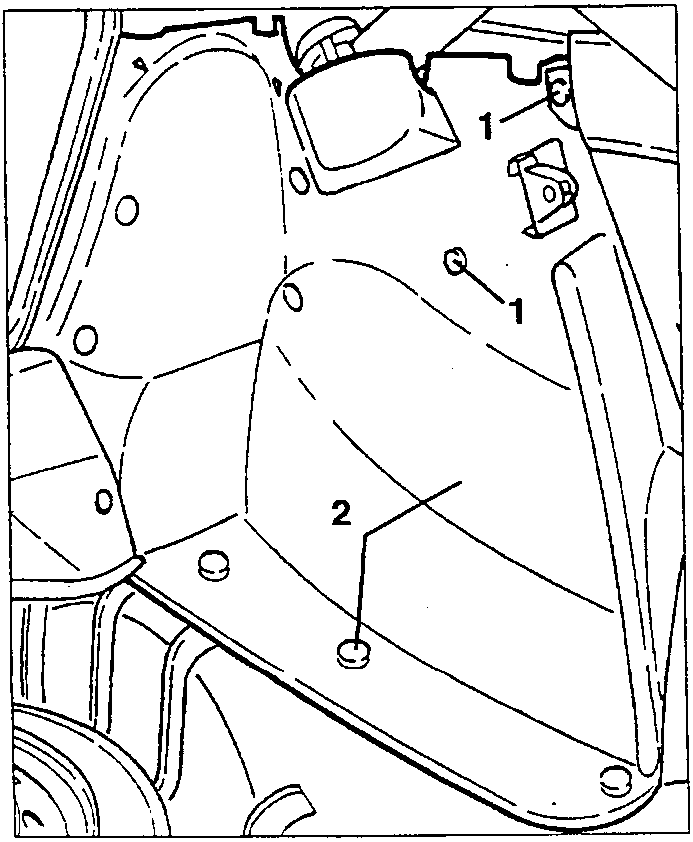

Luggage compartment side trim with screws and plastic buttons, callouts 1 and 2

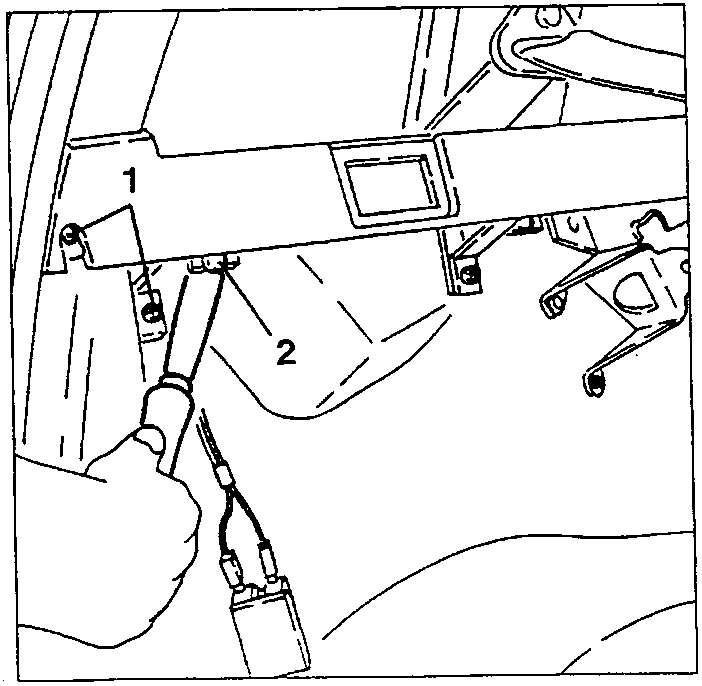

Loosening three screws and pulling off two plastic buttons securing the shelf, callouts 1 and 2
