BodyworkWindow moulding

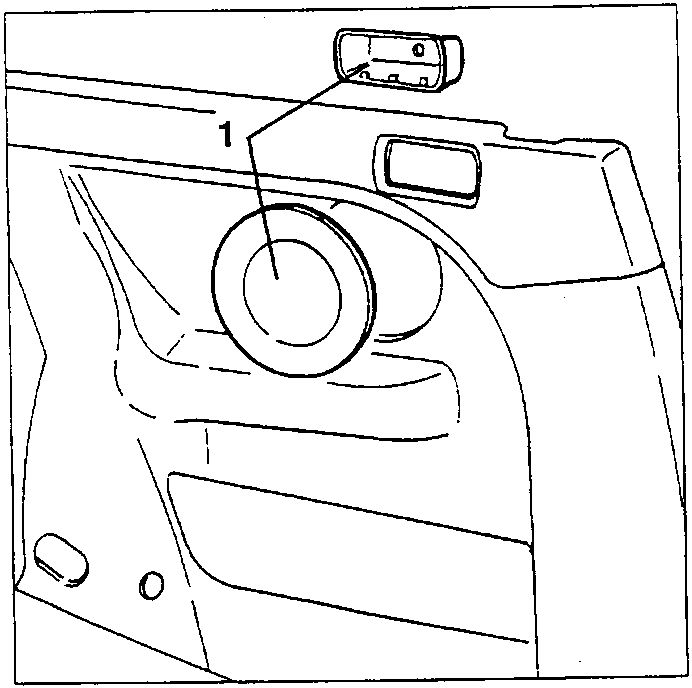

  1. On the bench, if necessary, remove the ashtray support and speaker grille.
Diagram showing removal of ashtray support and speaker grille with callout 1 pointing to the component.

WINDOW MOULDING

REMOVING/REFITTING

  • Remove the parcel shelf side support (see specific paragraph).

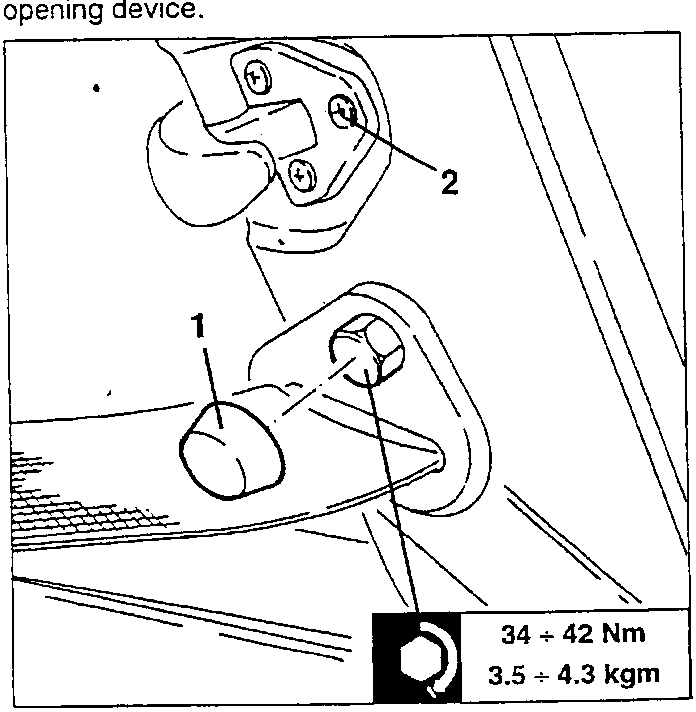

  1. Remove the cap and slacken the screw fastening the rear seat belt runner.
  2. Slacken the three screws fastening the quarter light opening device.
Diagram showing quarter light opening device with callout 1 pointing to a screw and callout 2 pointing to a cap. Torque specification box: 34 ÷ 42 Nm, 3.5 ÷ 4.3 kgm.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

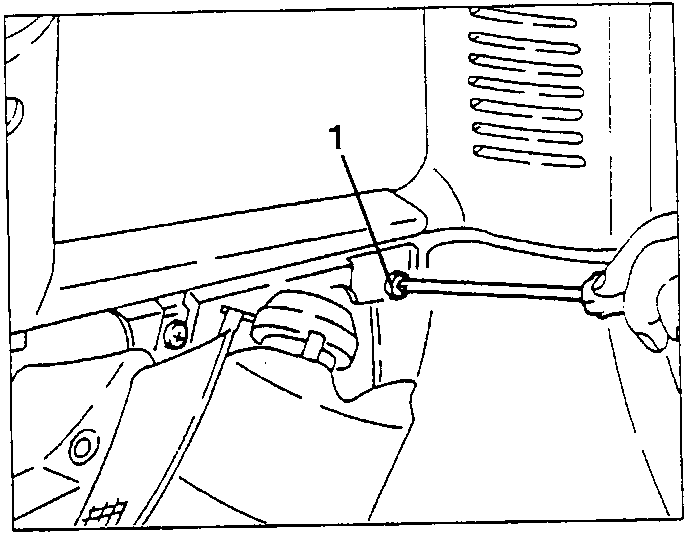

  1. Slacken the three lower screws fastening the window moulding.
Diagram showing upper screw fastening the window moulding with callout 1 pointing to the screw.
  • Remove the rear roof lining (see specific paragraph).

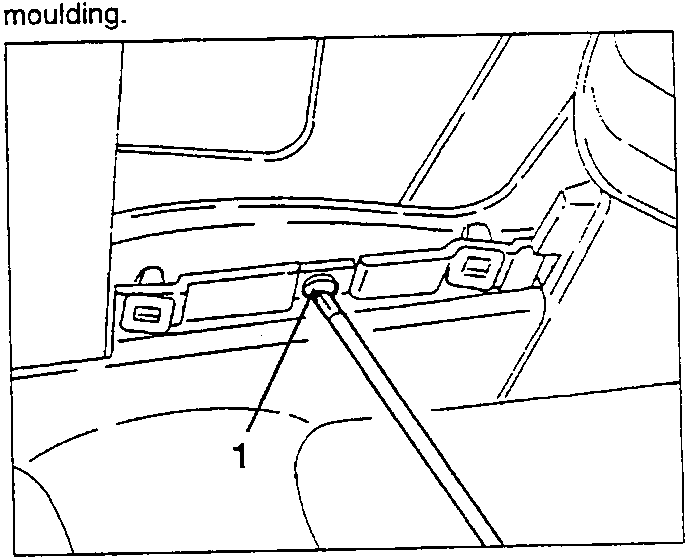

  1. Slacken the upper screw fastening the window moulding.
Diagram showing rear roof lining with callout 1 pointing to a screw.

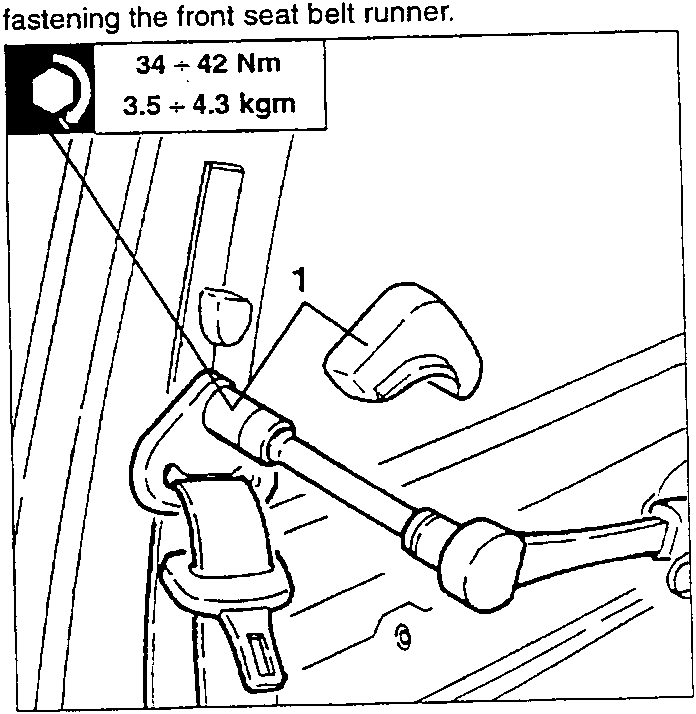

  1. Remove the trim plate and slacken the screw fastening the front seat belt runner.
Diagram showing front seat belt runner with callout 1 pointing to a screw. Torque specification box: 34 ÷ 42 Nm, 3.5 ÷ 4.3 kgm.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm
