  • Prise off the door surround moulding as necessary.

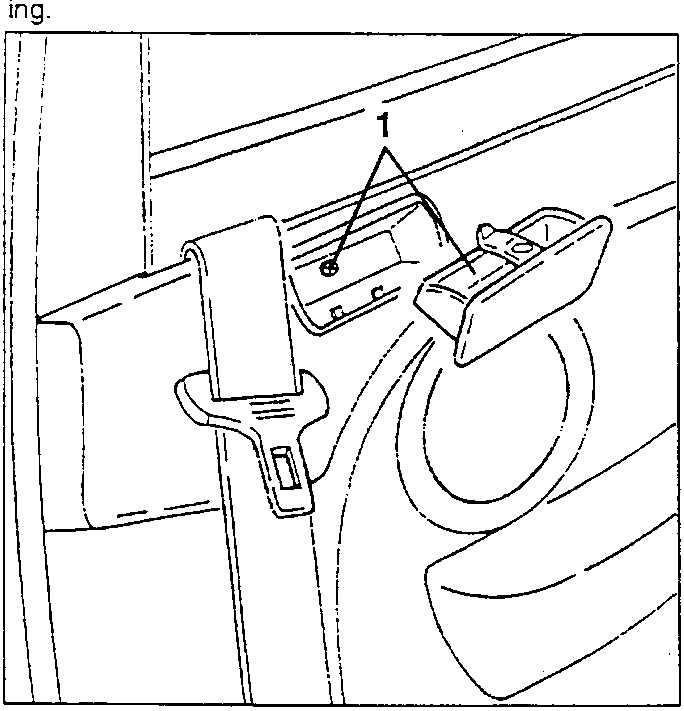

  1. Prise and remove the ashtray from its housing, then slacken the screw below fastening the window moulding.

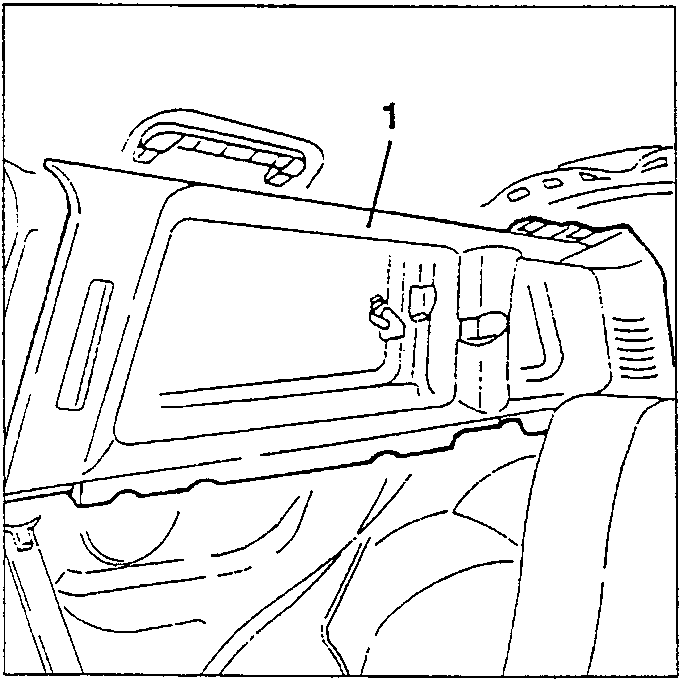

  2. Prise the upper part of the side panel, then remove the window moulding prising it off the plastic rivets.
Illustrates door handle mechanism assembly with labeled components
Side panel with window moulding

DASHBOARD

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.
  • Remove the centre console (see specific paragraph).

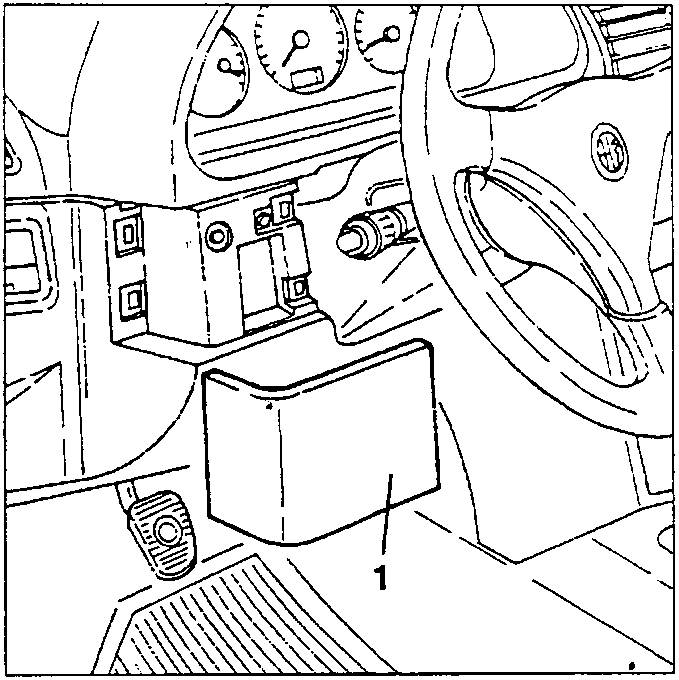

  1. Prise and remove the lefthand side dashboard trim.
Driver's air vent on dashboard

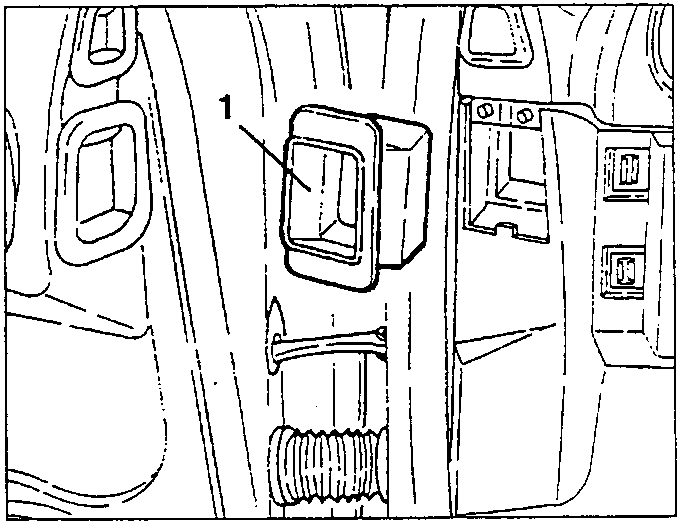

  1. Remove the driver’s air vent from the dashboard.
Air vent being removed from dashboard

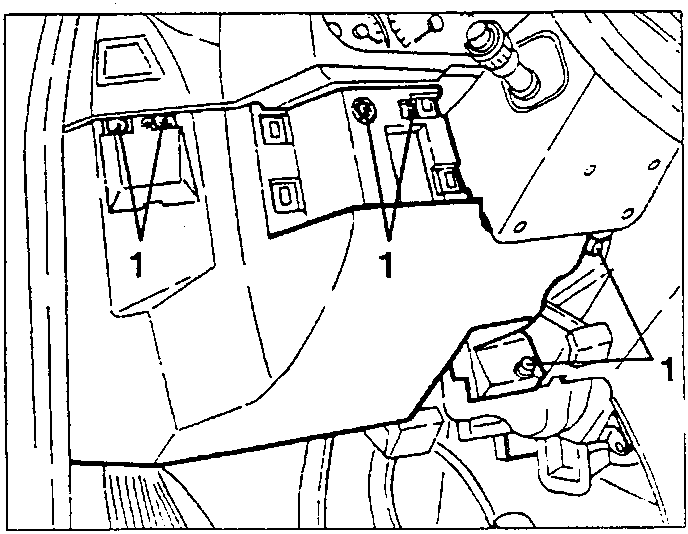

  1. Slacken the six fastening screws and remove the fusebox trim.
Fusebox trim with screws
