Removing/refitting the passenger's side module

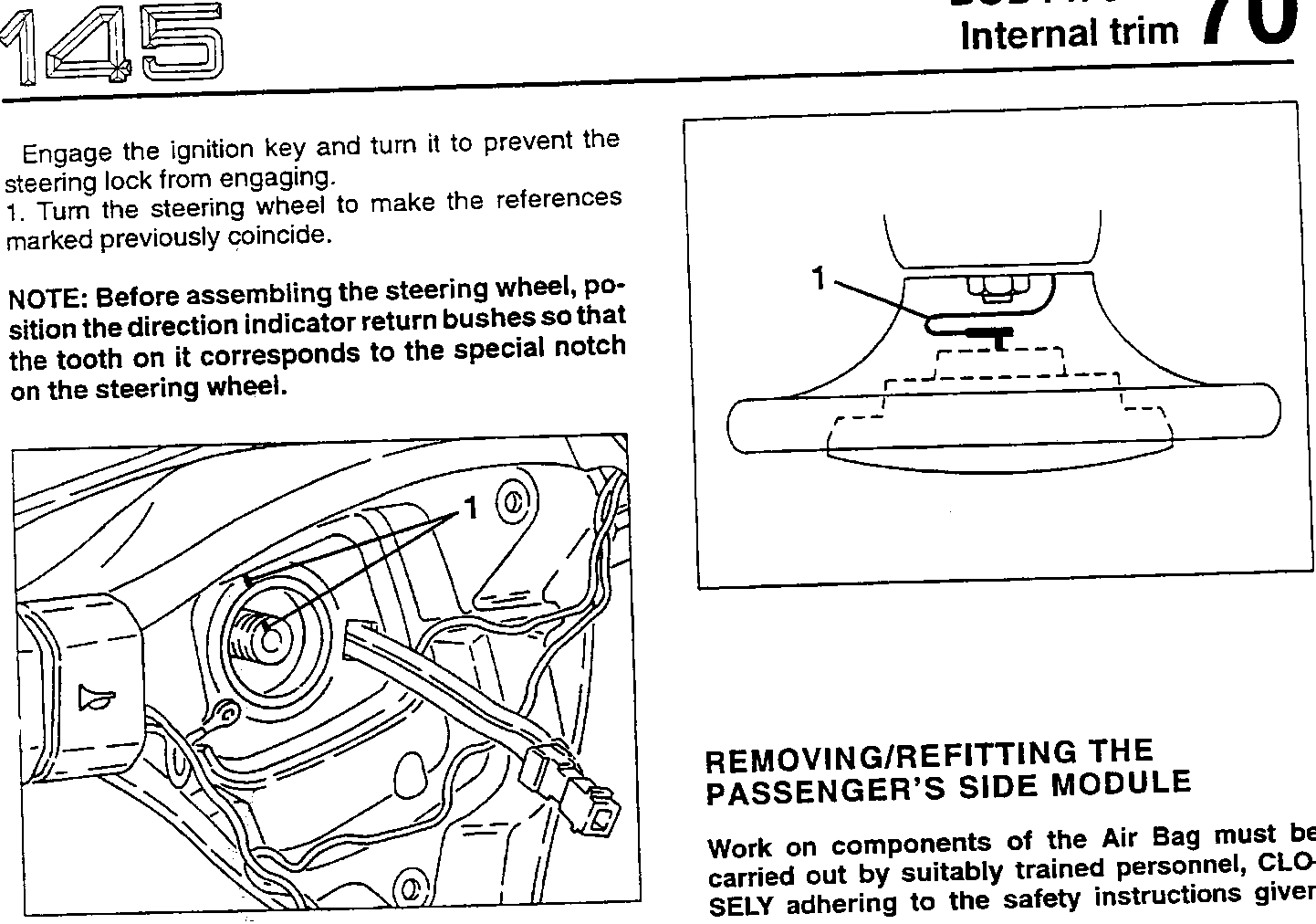

Engage the ignition key and turn it to prevent the steering lock from engaging.

1. Turn the steering wheel to make the references marked previously coincide.

NOTE: Before assembling the steering wheel, position the direction indicator return bushes so that the tooth on it corresponds to the special notch on the steering wheel.

• Push the steering wheel in the taper housing; it will automatically lock the upper ring of the clock spring device.
• Tighten the steering wheel fastening nut to the specified torque.
• Connect the electrical connection for supplying the horns.

NOTE: Pass horn cable in the special notches on the edges of the steering wheel to avoid any interferences.

• Reconnect the battery terminals, on the white Air Bag module supply connector, assemble the electrical resistance (2 Ohm), supplied with the Alfa Tester, then using the Tester check that the system is working properly.
• After testing, disconnect the electrical resistance, remove the battery terminals and wait for 10 minutes.

1. Connect the electrical connection to the Air Bag module, then assemble it in its housing checking that the cable follows the routing illustrated.

Before making the electrical connection of the Air Bag the ignition key must be in the OFF position.

• Fasten the Air Bag module tightening the three fastening screws

REMOVING/REFITTING THE PASSENGER'S SIDE MODULE

Work on components of the Air Bag must be carried out by suitably trained personnel, CLO-SEL Y adhering to the safety instructions given below.

• For removal or replacement operations polyethylene gloves and protective goggles must be used.
• Before removing the Air Bag device, disconnect the battery terminals, suitably isolate them and wait for 10 minutes.
• Do not use naked flames in the vicinity of the Air Bag and other components of the system.
• Single damaged or faulty components must not be repaired or tampered with, they must be changed wholly.

For further explanations on the safety instructions see "Safety Measures" at the beginning of this chapter

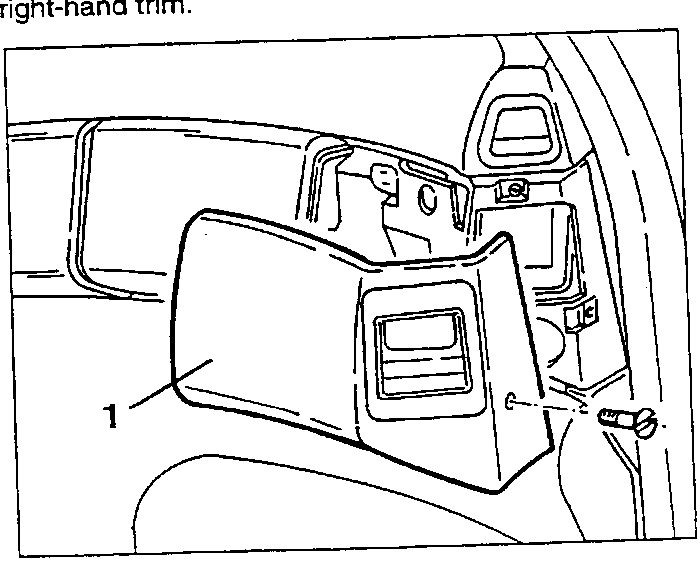

1. Slacken the fastening screw, then remove the right-hand trim.
