BodyworkAir vent on dashboard

AIR VENT ON DASHBOARD

REMOVAL/REFITTING

  1. Loosen the two screws securing the air vent to the dashboard.
  2. Pull the air vent from the dashboard as shown in the diagram.

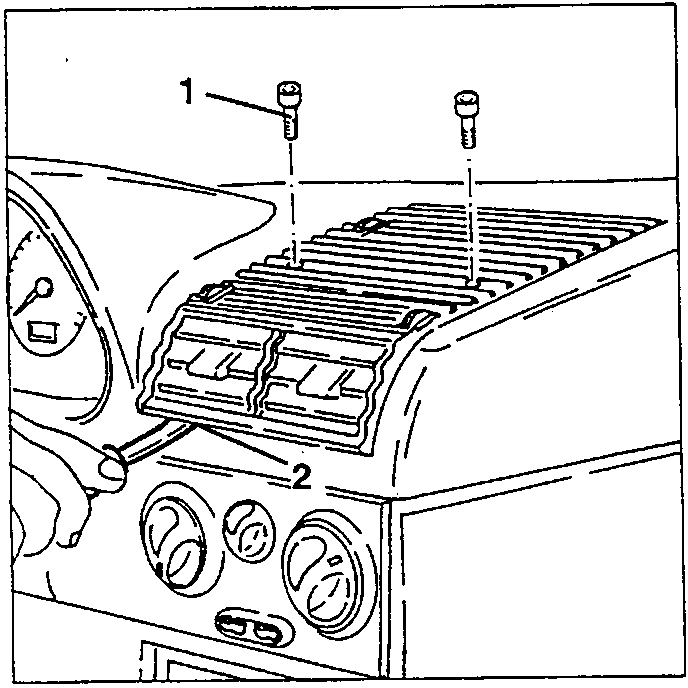

Air vent with two screws labeled 1 and 2
  1. Remove the air vent from the dashboard.
Air vent being removed from dashboard

REAR FLOOR AIR VENTS

REMOVAL/REFITTING

  • Slide the front seat forwards on the relative side.

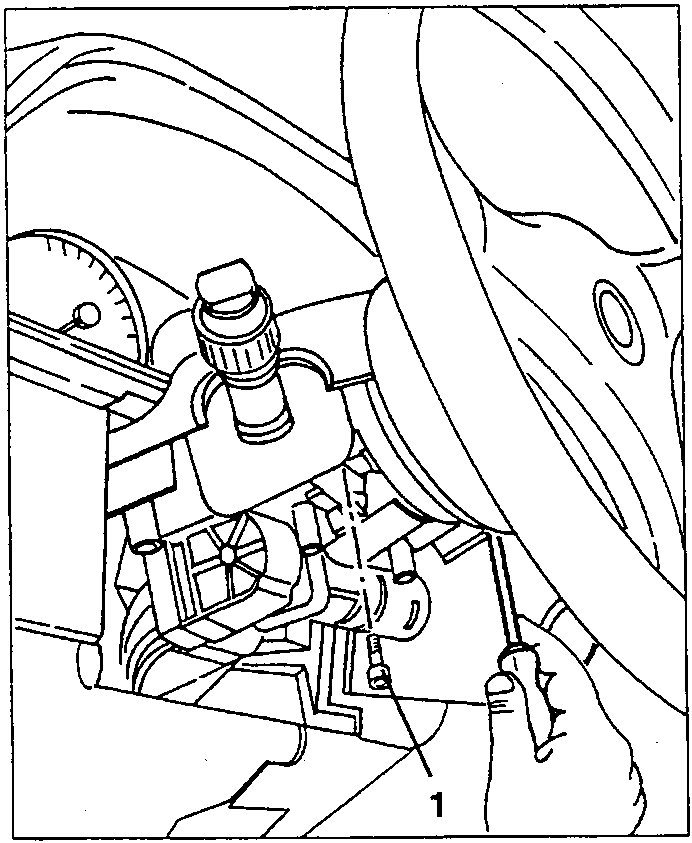

Hand loosening two screws on steering column upper casing half
  1. Loosen the two screws securing the steering column upper casing half.

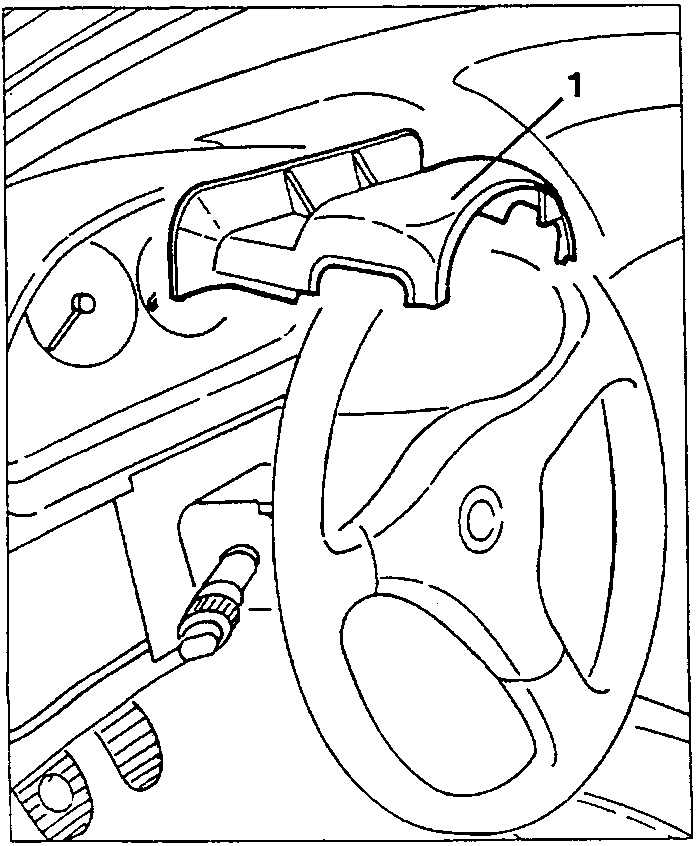

Steering column upper casing half being removed
  1. Remove the steering columns upper casing half.
