BodyworkDismantling/reassembly side bag supply cable
  • Lift up the backrest fabric and remove the upholstery in the area of the Side Bag module.

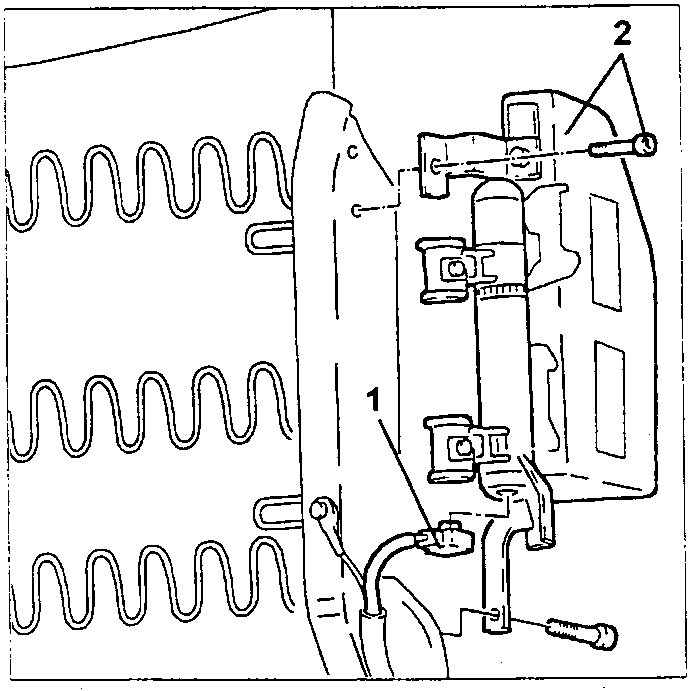

  1. Disconnect the electrical connection from the Side Bag module.
  2. Undo the fixing bolts and remove the Side Bag module.
Diagram showing side bag module with numbered parts 1 and 2

DISMANTLING/REASSEMBLY SIDE BAG SUPPLY CABLE

  • Remove the front seat (see specific procedure).
  • Remove the Side Bag module (see specific procedure).
  • Remove the cushion from the seat (see "Dismantling-Reassembling front seat cushion" procedure).

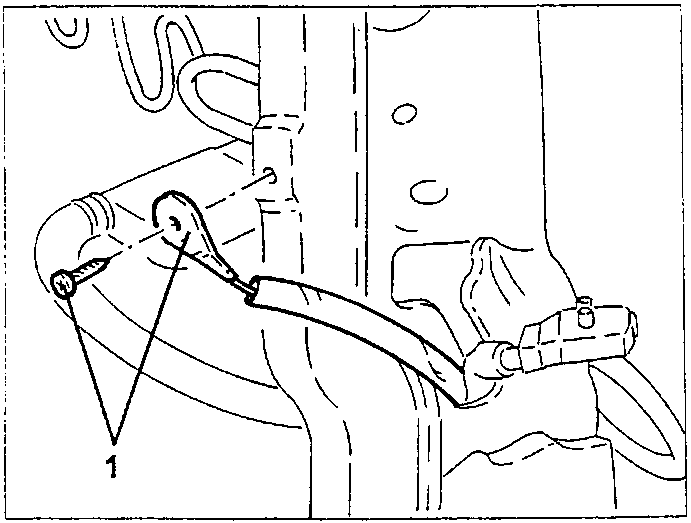

  1. Disconnect the earth lead from the backrest frame.
Diagram showing side bag supply cable with numbered part 1

DISMANTLING/REASSEMBLING PASSENGER PRESENCE SENSOR (Device present until June '99)

  • Remove the front seat (see specific procedure).

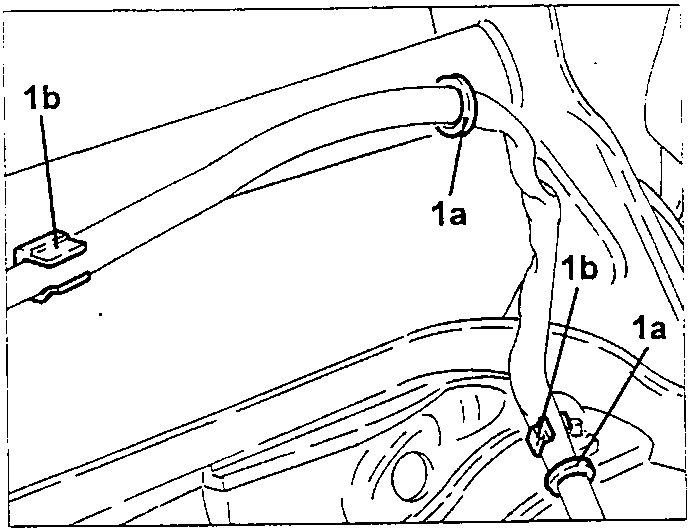

Diagram showing side bag module with numbered parts 1a and 1b

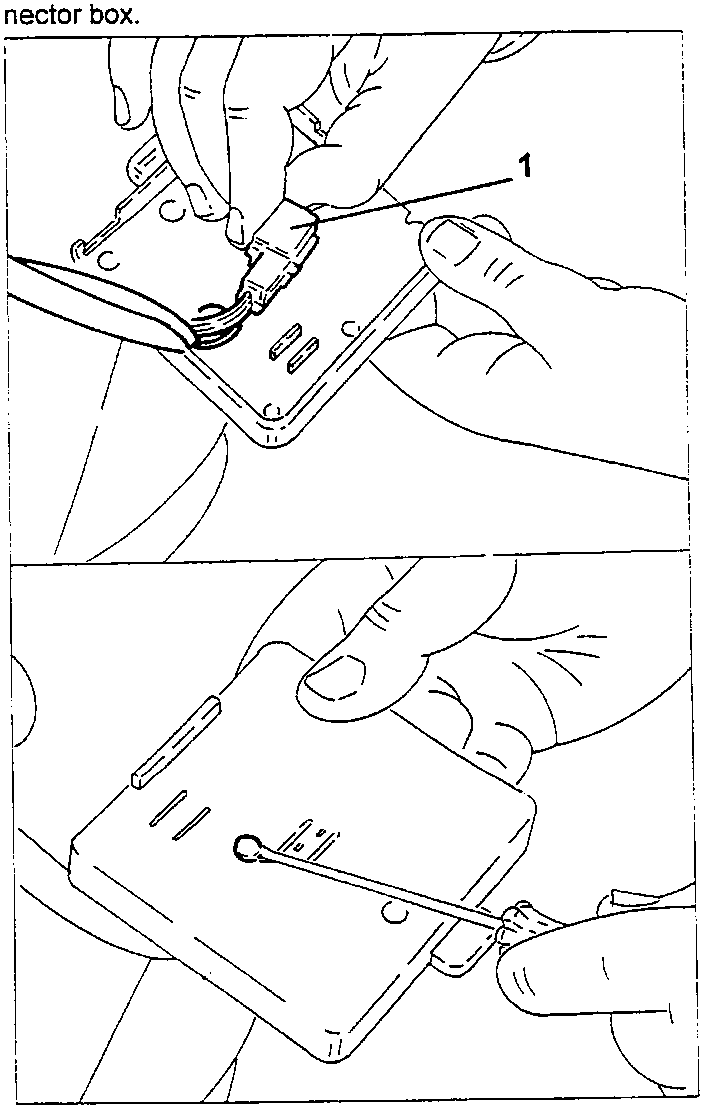

  1. Release the electrical connections from the connector box.
Illustration of hands releasing electrical connection from connector box
  • Remove the Side Bag supply cable, releasing it.
