BodyworkFloor trim

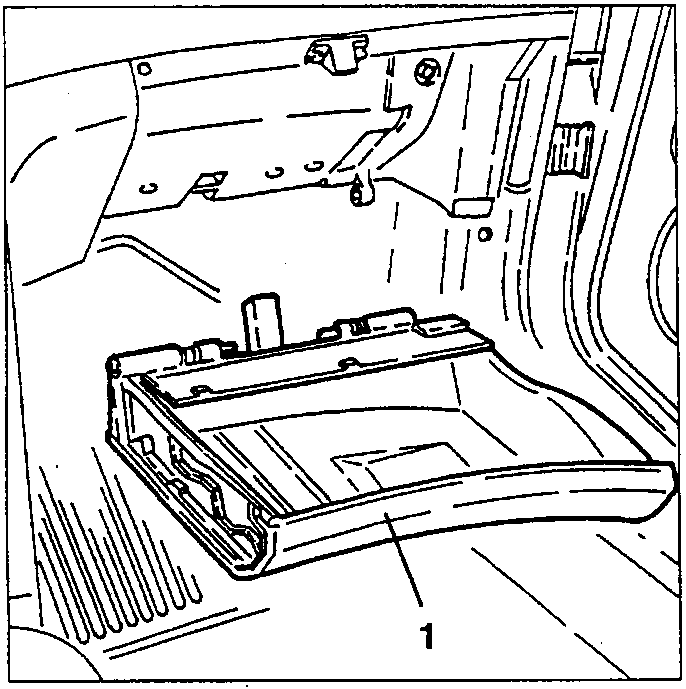

  1. Remove the glove compartment.
Glove compartment removal diagram showing the interior of the glove box area with a labeled part 1

FLOOR TRIM

REMOVAL/REFITTING

  • Remove the front seats (see specific paragraph).
  • Remove the rear seat cushion (see specific paragraph).
  • Remove the heel pads (see specific paragraph).
  • Remove the lower part of the dashboard (see specific paragraph).

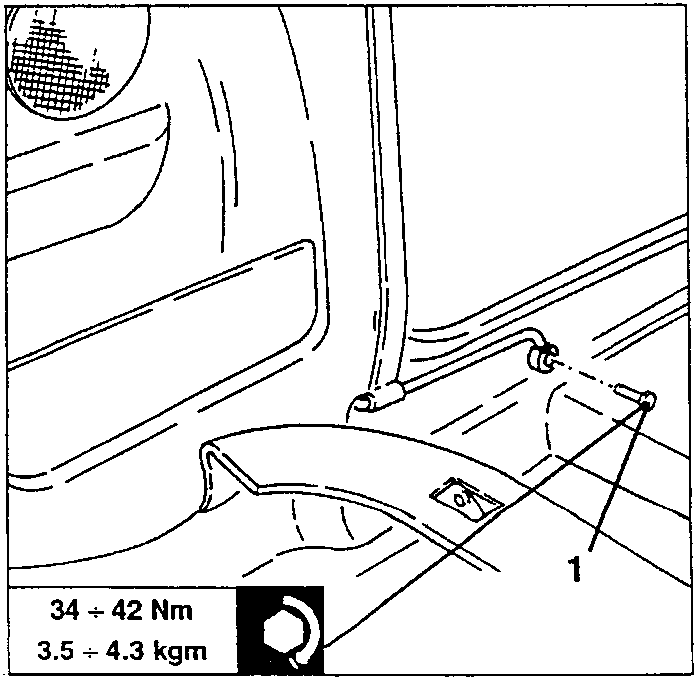

  1. Loosen the front screws securing the front seat belt sliding attachments.
Diagram showing front seat belt sliding attachment screws with torque specification box

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

  • Remove the gear lever cover and the central console (see specific paragraphs).

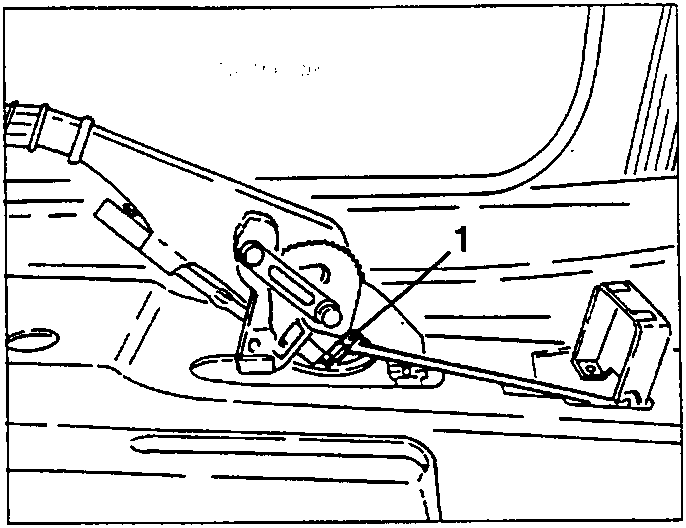

  1. Disconnect the electrical connections from the handbrake switch.
Handbrake switch disconnection diagram showing the handbrake mechanism with labeled part 1

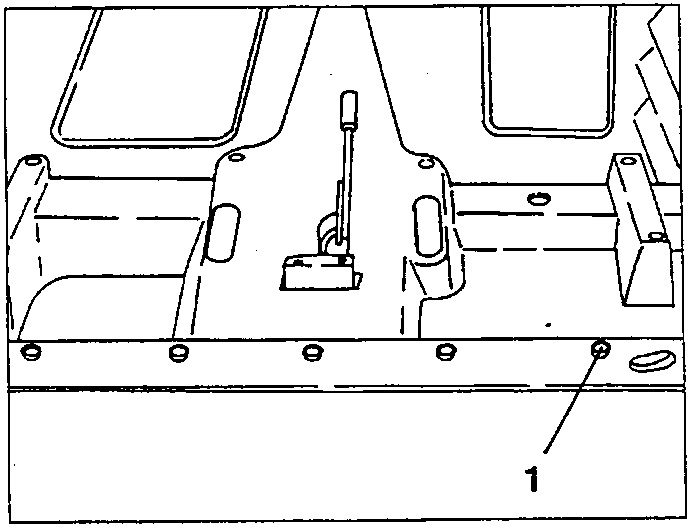

  1. Pull off the five plastic nails securing the rear floor trim.
Diagram showing rear floor trim with five plastic nails labeled as 1

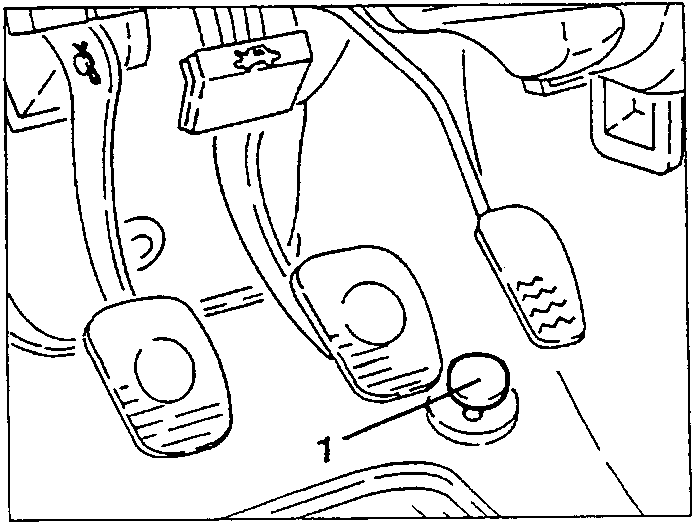

  1. Unscrew and remove the accelerator pedal stop limit.
Accelerator pedal stop limit removal diagram showing the pedal assembly with labeled part 1
