Refitting

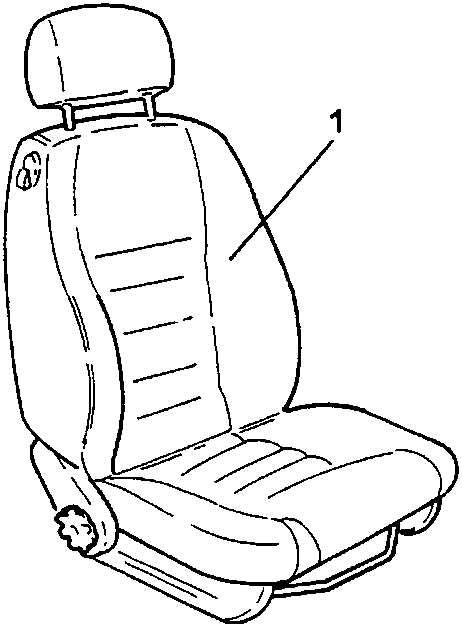

1. Remove the seat from the vehicle.

NOTE: Do not extract the seat from its housing using the seat lever shown by the arrow in the diagram or else the guides will not be aligned.

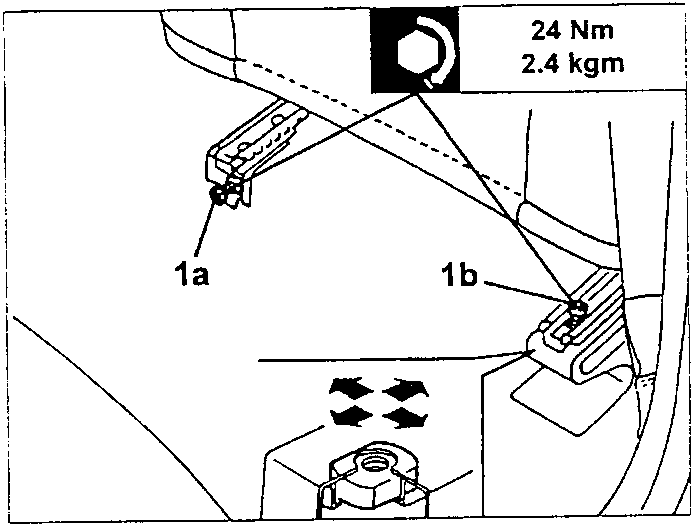

1. Tighten the rear fixing bolts starting from the one on the inside (1a) and continuing with the one on the outside (1b).

The seat should be fixed to the floor without the guides being distorted; if necessary, adjust the nuts shown in the diagram making sure that they are free.

NOTE: During this stage do not lift up the seat to fit the fixing bolts.

24 Nm
2.4 kgm

REFITTING

• Place the seat in its housing in the vehicle.
• Connect the electrical connections.

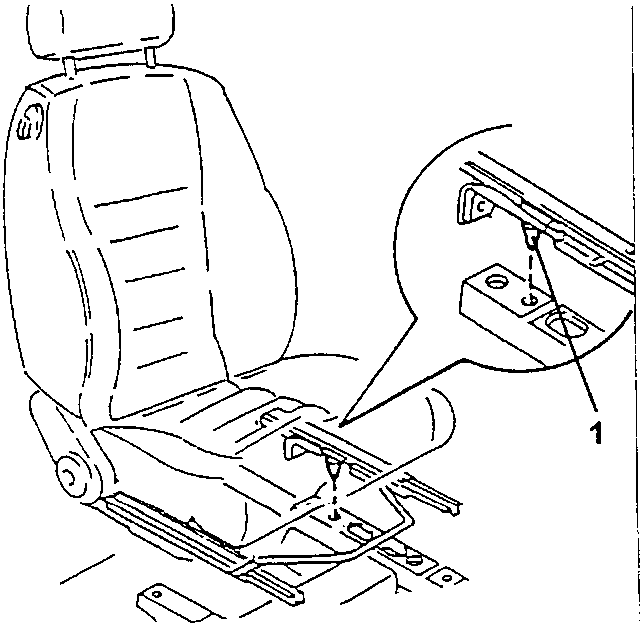

1. Check that the centering pin on the seat guide is correctly positioned.

NOTE: Check that the carpet does not interfere with the seat guide support areas.

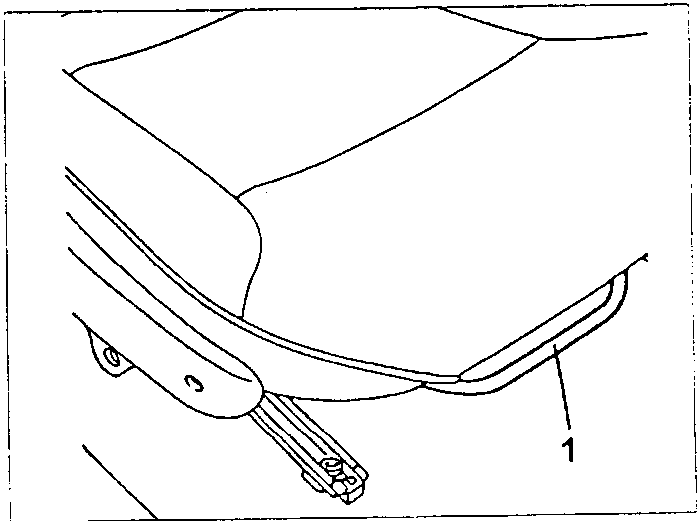

1. Place the seat in the fully retracted end of travel position using the guide control lever.

Always make sure that the guide control lever is correctly attached.

NOTE: For 145 version avoid folding the backrest when sliding the seat in order not to free the guides and prevent them from being out of alignment.
