Dismantling/reassembling head restraint

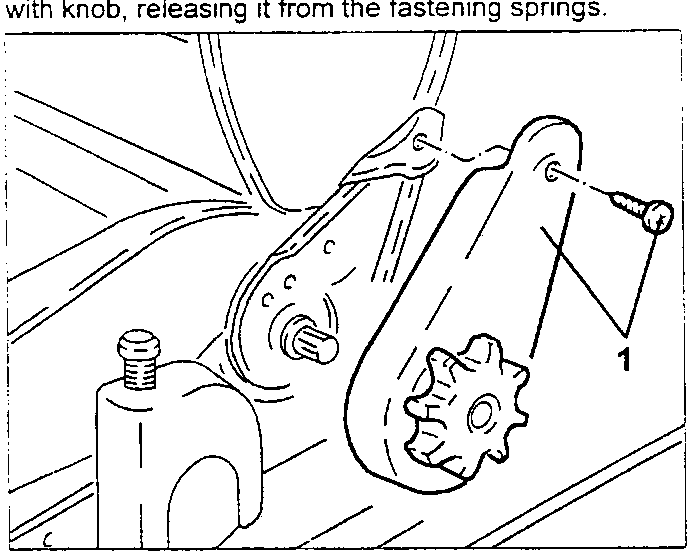

Undo the bolt and remove the hinge trim, complete with knob, releasing it from the fastening springs.

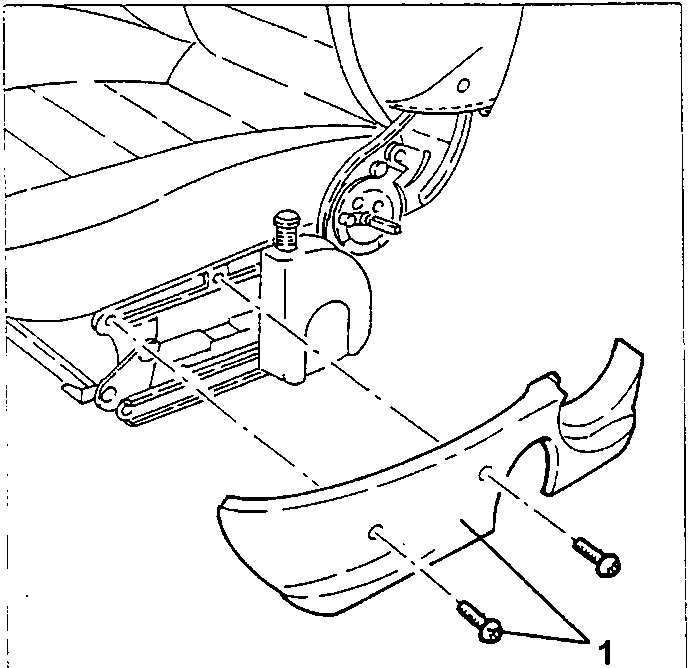

Undo the fixing bolts and remove the right hinge trim.

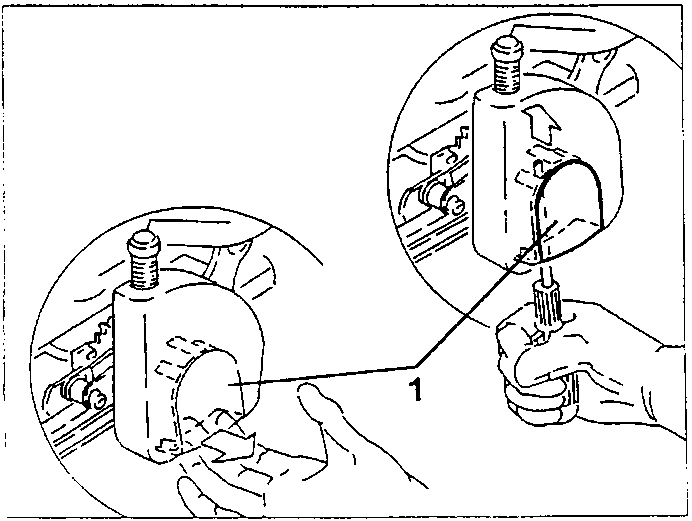

1. Remove the seat lifting lever trim, firstly detaching the lower part by hand and then using a screwdriver on the upper tab.

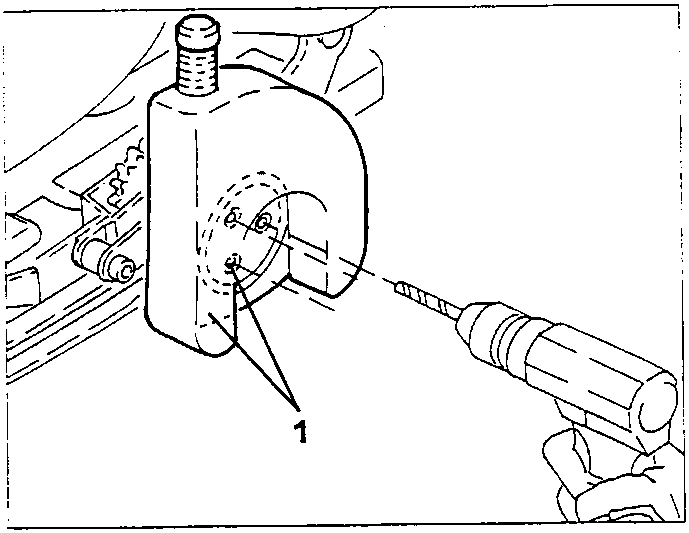

1. Remove the head of the rivets using a drill with a 4 mm bit and remove the lifting device.

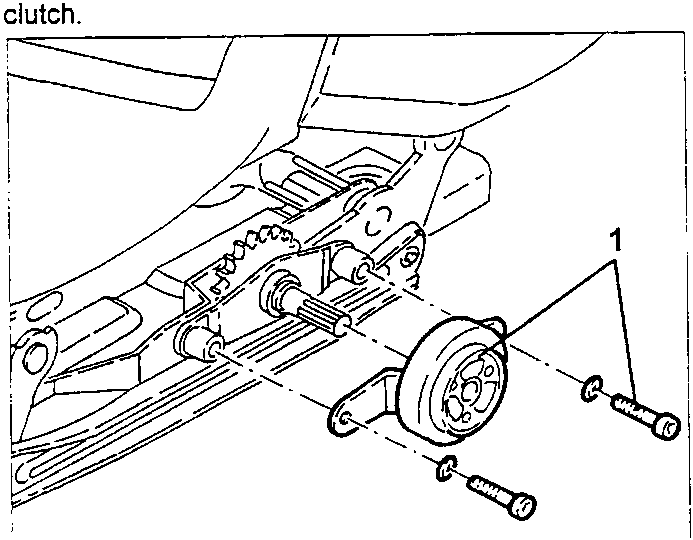

1. Undo the fixing bolts and remove the seat lifting clutch.

DISMANTLING/REASSEMBLING HEAD RESTRAINT

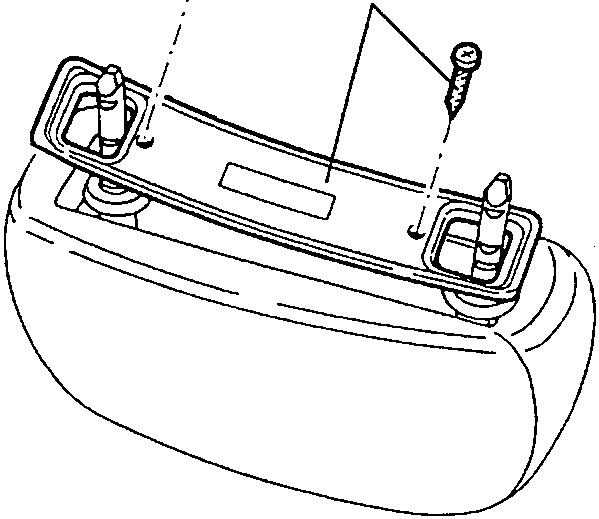

1. Undo the bolts and remove the trim.
