Dismantling/reassembling driver's seat guides

• Place the guides forwards until they are heard to lock.

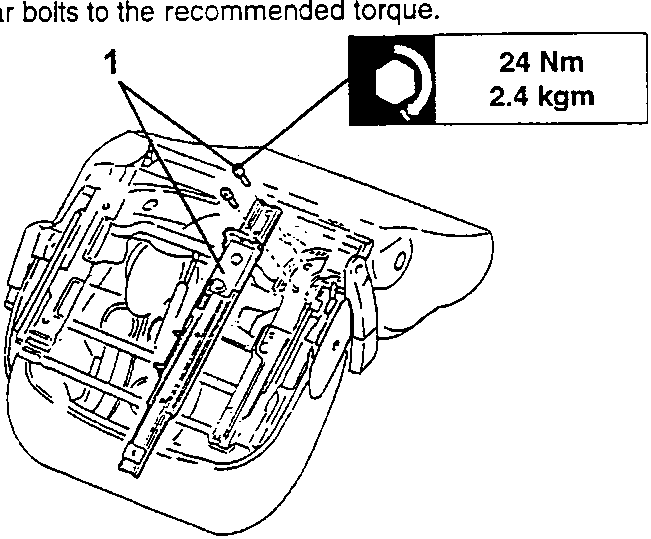

  - Tighten the nuts fixing the guides to the recommended torque.

24 Nm
2.4 kgm

DISMANTLING/REASSEMBLING DRIVER'S SEAT GUIDES

• Remove the front seat (see specific procedure).
  - At the bench, move the guides forwards with the runner.

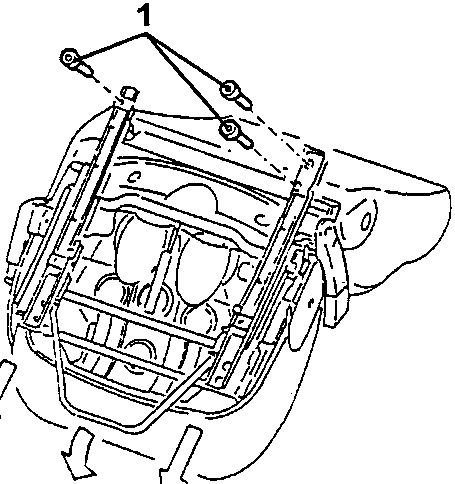

1. Undo the rear guide fixing bolts.

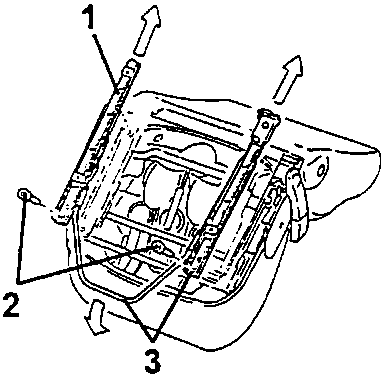

1. Retract the guides with the runner.
   2. Undo the front guide fixing bolts.
   3. Remove the guides complete with runner.

The runner should not be removed before dismantling the guides to prevent distortions which could adversely affect operation.

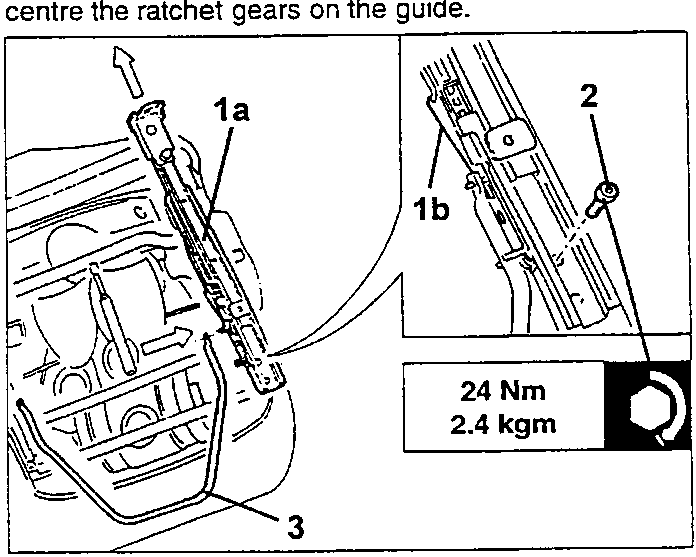

1. Retract the inner guide (1a) manually using the bolt (1b).
   2. Tighten the front bolt fixing the guide to the recommended torque.
   3. Place the runner back in its housing, taking care to centre the ratchet gears on the guide.

24 Nm
2.4 kgm

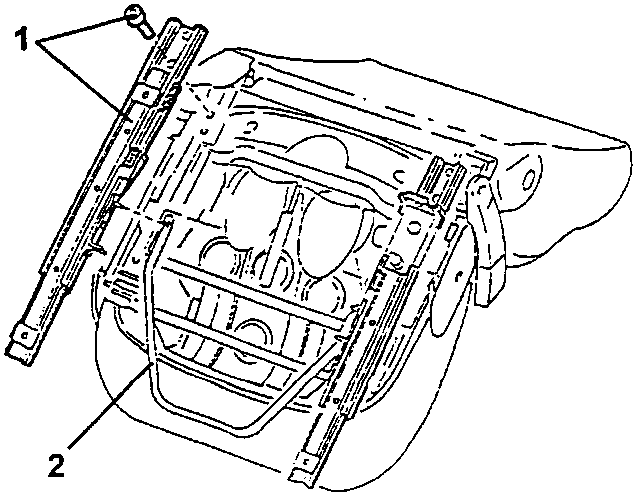

1. Fit the outer guide and secure it without tightening the rear bolt.
   2. Attach the runner.
