BodyworkFront seat belts height adjustment device
  1. Remove the seat belt runner cover.
    2. Slacken the seat belt runner screw.

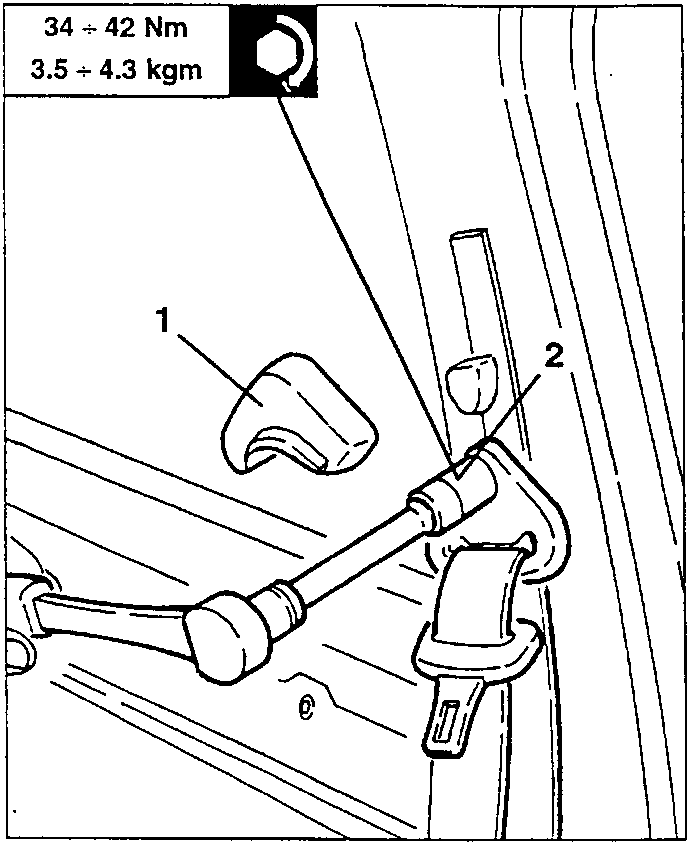

Seat belt runner with components 1 and 2 shown

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

  1. Slacken the seat belt pre-tensioner fastening screw.

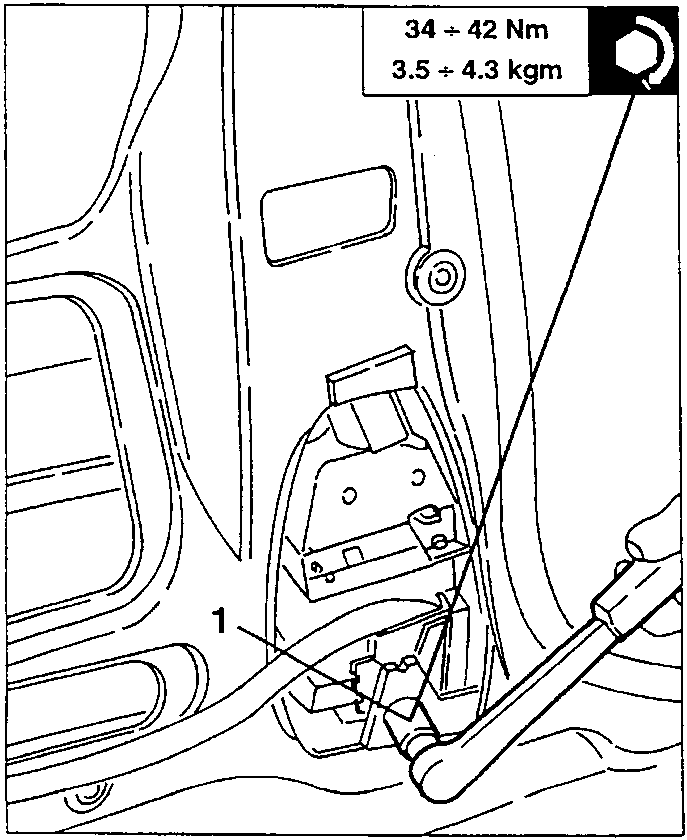

Seat belt pre-tensioner with components 1 and 2 shown

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

  1. Remove the seat belt pre-tensioner withdrawing it from its housing.

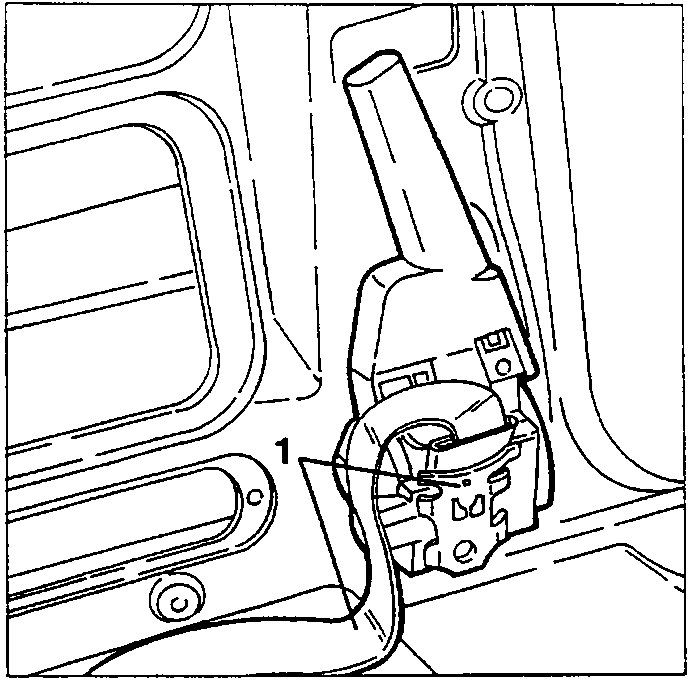

Arm rod mechanism with component 1 shown

For refitting, reverse the sequence described for removal taking care to install the arming rod. For this operation follow the cautions given in "Removing/refitting the arming rod".

FRONT SEAT BELTS HEIGHT ADJUSTMENT DEVICE

REMOVAL/REFITTING

  • Remove the window winder moulding (see specific paragraph).
    1. Remove the seat belt height adjustment device knob and retrieve the corresponding plate.
    2. Slacken the two fastening screws and remove the front seat belt height adjustment device.

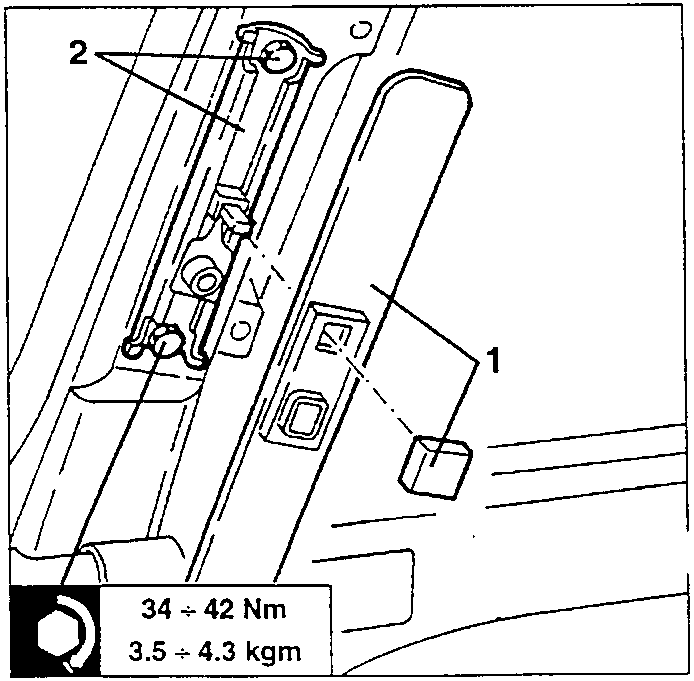

Front seat belt height adjustment device with components 1 and 2 shown

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm
