Air delivery ducts

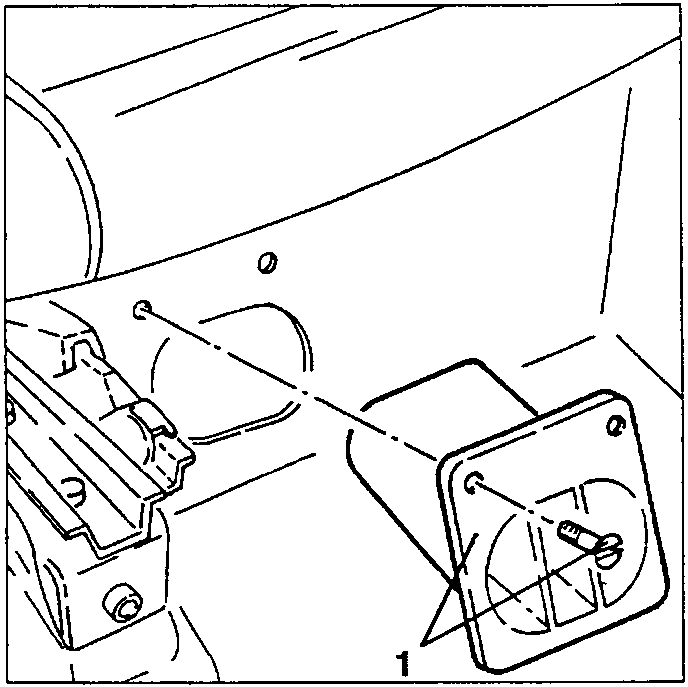

1. Loosen the two screws securing the air vent and remove it.

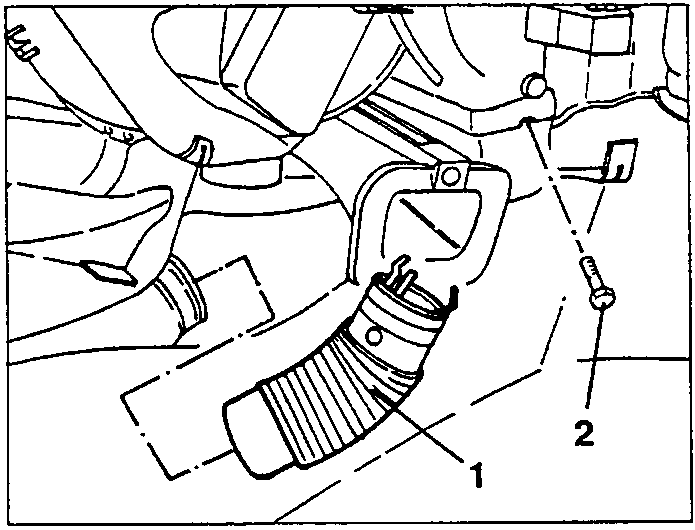

1. Remove the right air delivery elbow to the rear passenger feet from the climate control unit.

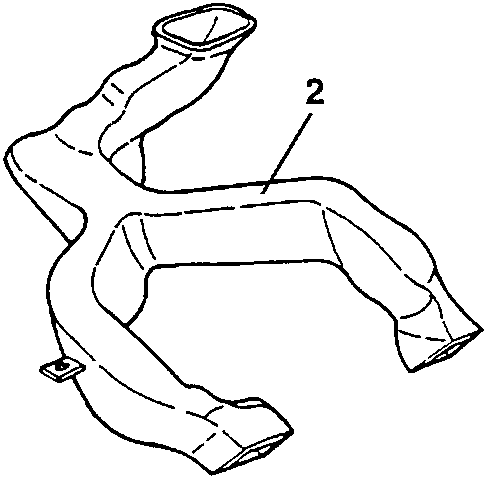

2. Slacken the fastening screw and remove the front section of the air delivery duct to rear passenger face level.

AIR DELIVERY DUCTS

REMOVAL/REFITTING

• Remove the centre console (see specific paragraph).
• Remove the lower dashboard (see specific paragraph).

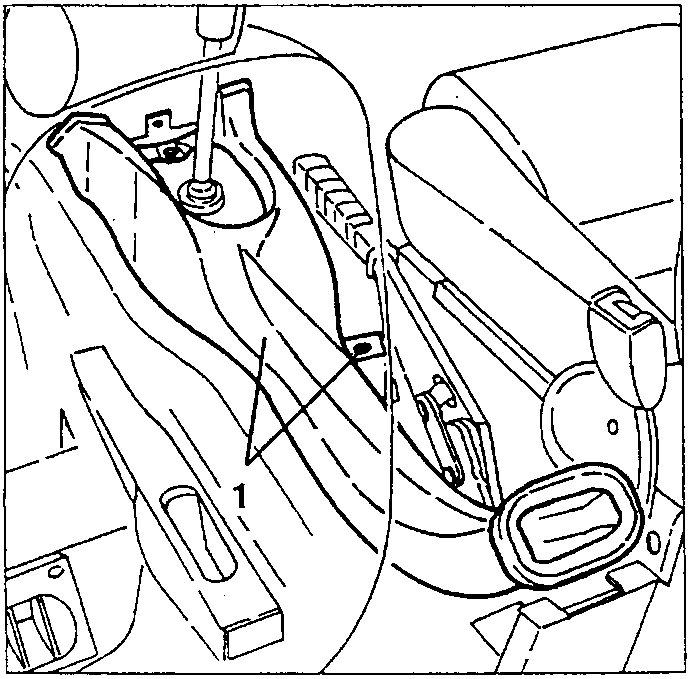

1. Slacken the fastening screws and remove the air delivery duct to rear passenger face level.

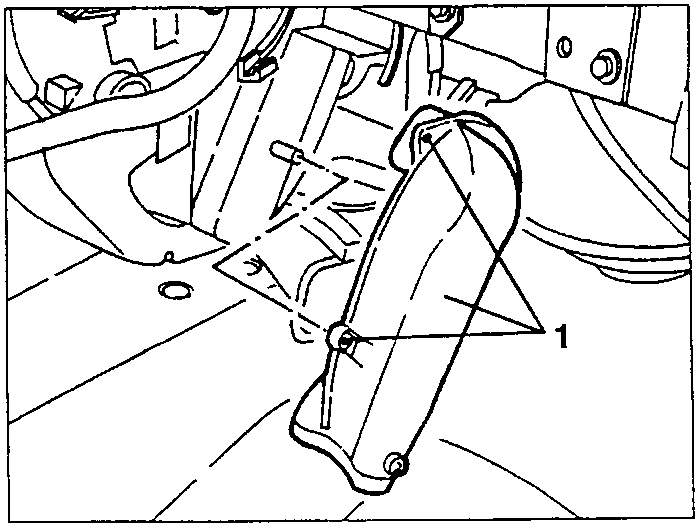

1. Slacken the remaining fastening screw and remove the air delivery duct to rear passenger face level from the climate control unit.
