ROOF PANEL SIDE SEALS

REMOVAL/REFITTING

  • Remove the upper window strip (see specific procedure).
  1. Pull off and remove roof panel side seal.

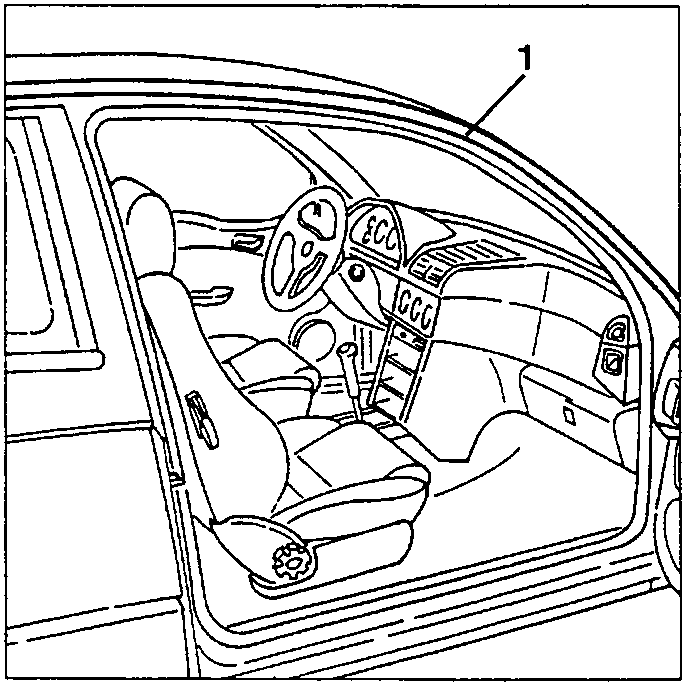

Interior view showing roof panel side seal being removed

FRONT FLOOR VENT MOULDINGS

REMOVAL / REFITTING

  1. Loosen the two screw and remove the floor vent moulding by backing it off from the retaining bracket.

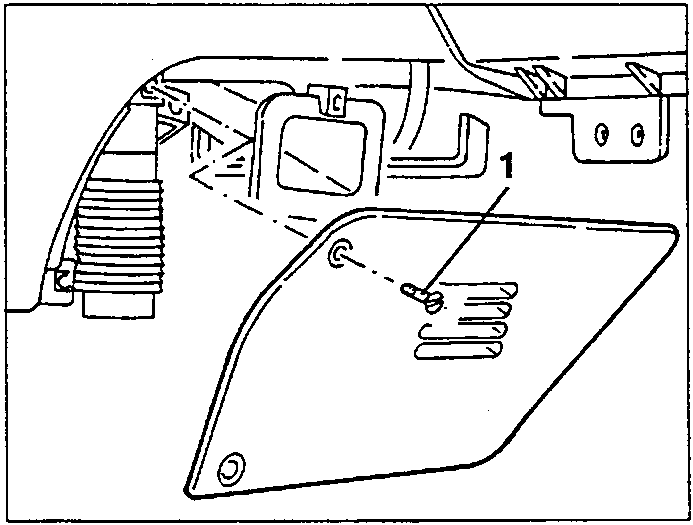

Close-up of front floor vent moulding removal

DOOR SEALS

REMOVAL/REFITTING

  • Remove the heel rest (see specific paragraph).
  1. Remove the join from the ends of the seal.
  2. Pull off the seal starting from the join.

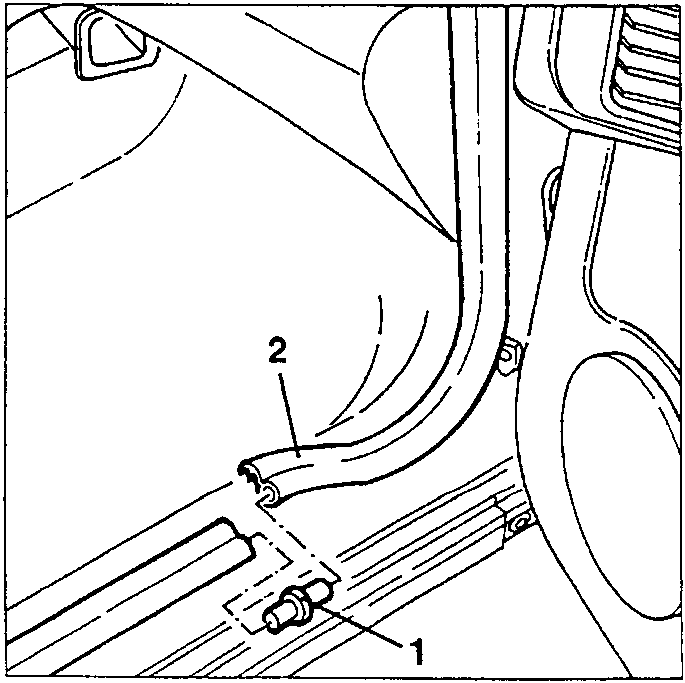

Close-up of door seal removal process

CENTRAL CONSOLE

REMOVAL / REFITTING

  • Disconnect the negative (-) cable from the battery .
  1. Pull off the plastic cap, loosen the screws and lift the moulding just enough to allow the electrical connection of the electric mirrors to be removal .

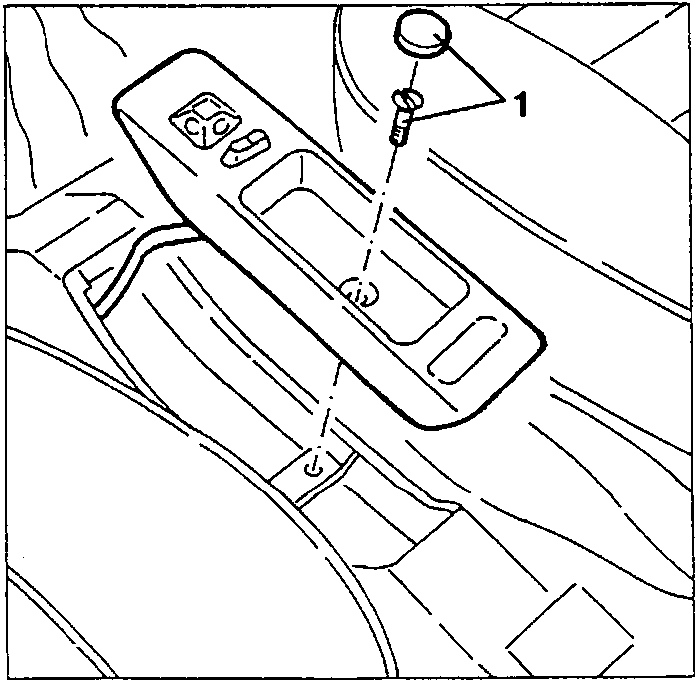

Central console with electric mirror connections

Refit by reversing the procedure followed for removal ensuring that the inner edge of the seal covers the internal trim.
