CAPS ON DRIVER’S SIDE

REMOVAL/REFITTING

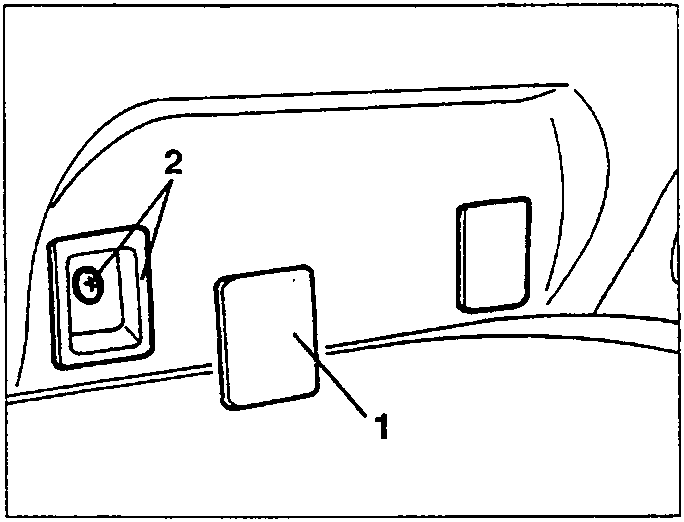

  1. Pull off the protective cap.
  2. Loosen the screw and remove the cap for the handle on the driver’s side.
Diagram showing two caps: one with a screw (labeled 2) and one plain (labeled 1).

TRIM ON FRONT PILLARS

REMOVAL/REFITTING

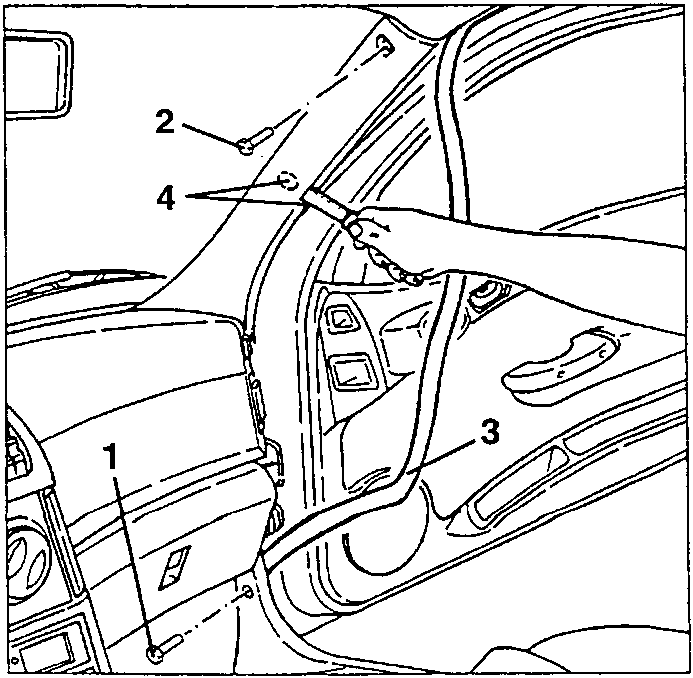

  1. Loosen the screw securing the heel rest as shown in the diagram.
  2. Loosen the screw securing the trim to the front pillar.
  3. Pull the door seal from its seating as required.
  4. 4. Pull the on the front pillar away from the plastic nail.
Diagram showing a hand pulling a trim piece (labeled 1) away from a pillar, with screws labeled 2 and 4, and a door seal labeled 3.

STEERING COLUMN CASING HALF

REMOVAL/REFITTING

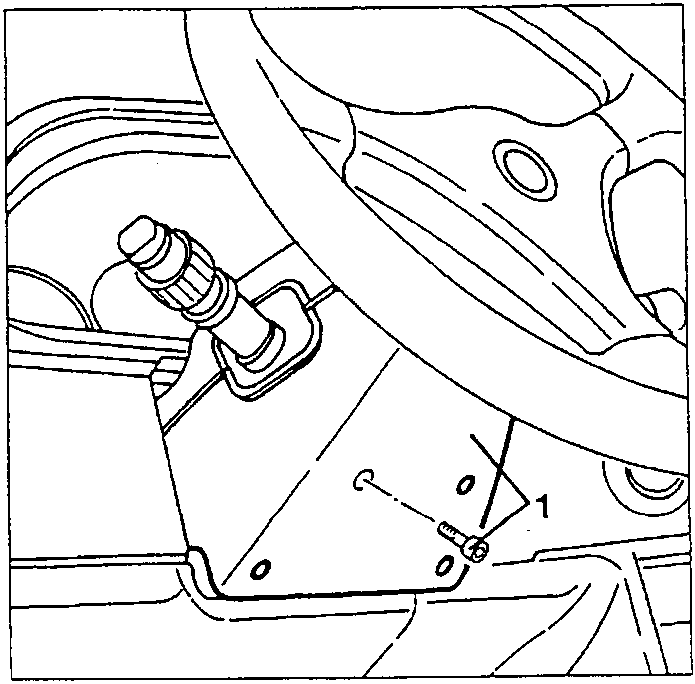

  1. Loosen the four screws and remove the steering column lower casing half.
Diagram showing a steering column with four screws (labeled 1) securing the lower casing half.

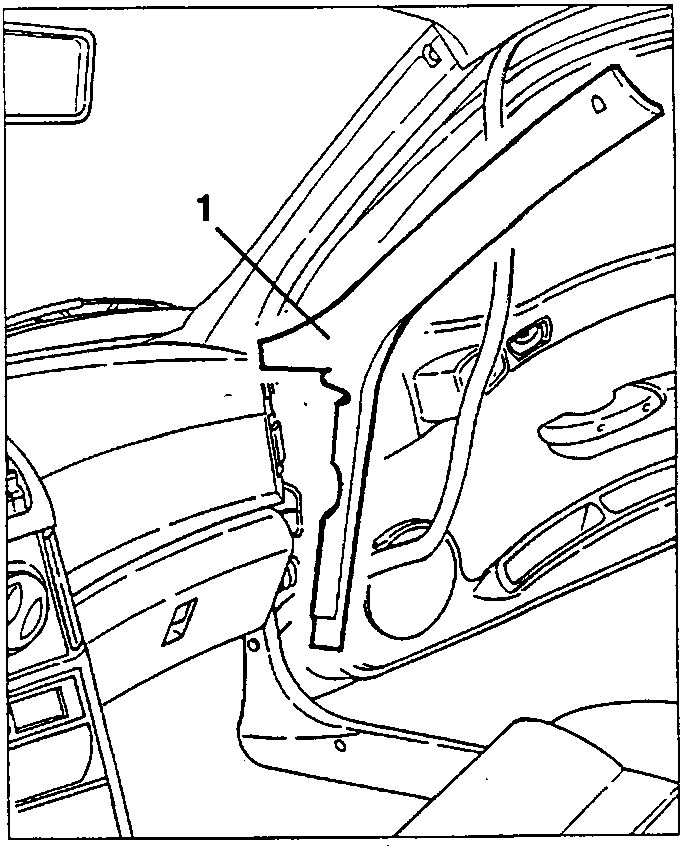

  1. Remove the trim from the front pillar.
Diagram showing the front pillar trim being removed, labeled 1.
