REAR SEATS (split version)

Refit by reversing the procedure followed for disassembly and note the following:

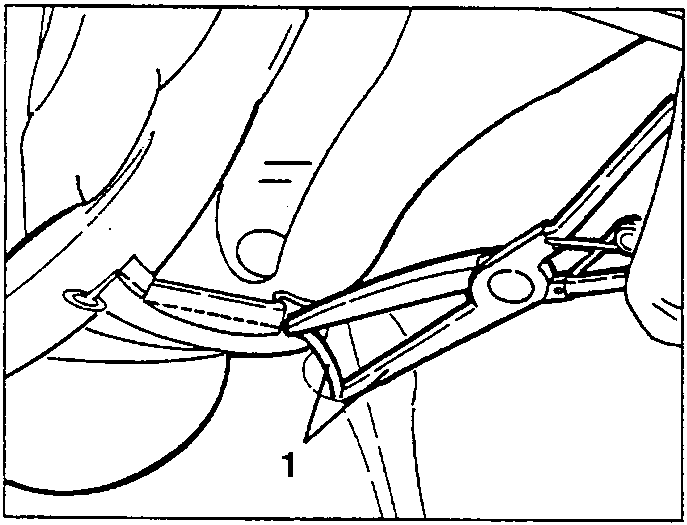

1. Fix the covering with the clips using the appropriate pliers supplied as a spare part.

• Using a plastic mallet, clinch the edge of the covering.

REAR SEATS (split version)

REMOVAL/REFITTING

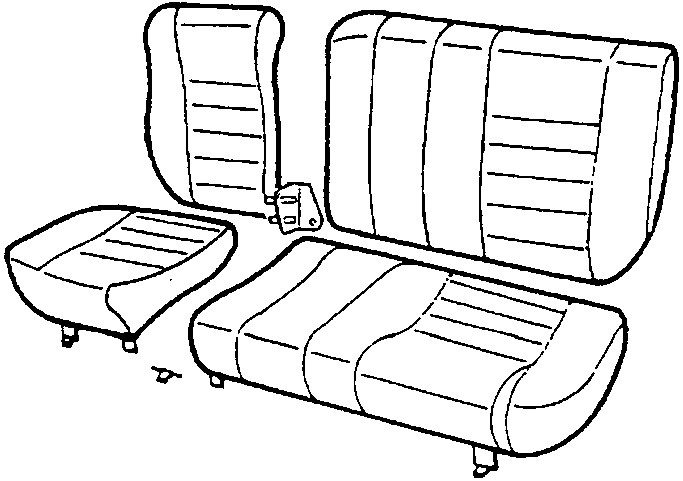

• Remove the seats as described in the section relative to the bench-type seats ensuring that the screws securing the central hinges are loosened and that the backrests and cushions are withdrawn from their pins.

DISASSEMBLY/REASSEMBLY

• Proceed as described for the bench-type seat and make the modifications required by the shape of the seat.

FRONT SEATS

REMOVAL/REFITTING

• Slide the seat fully forwards.

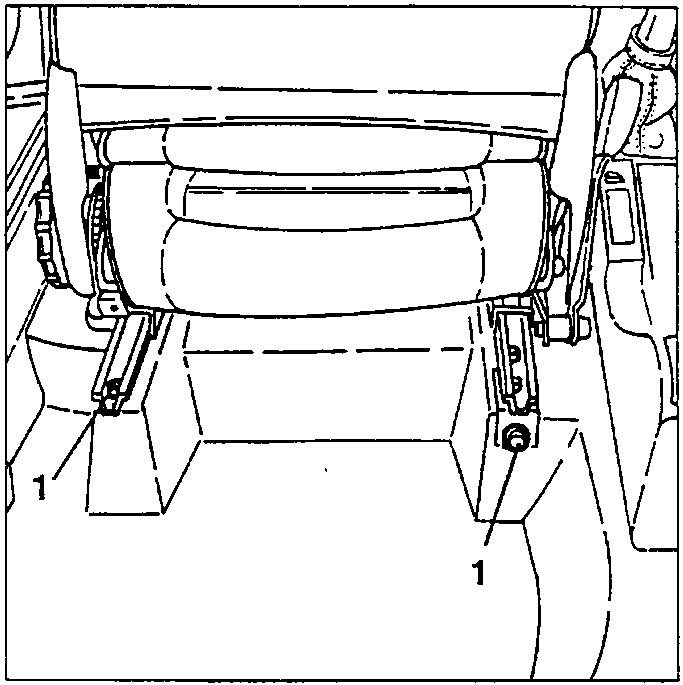

1. Loosen the two rear screws securing the runner to the floor.

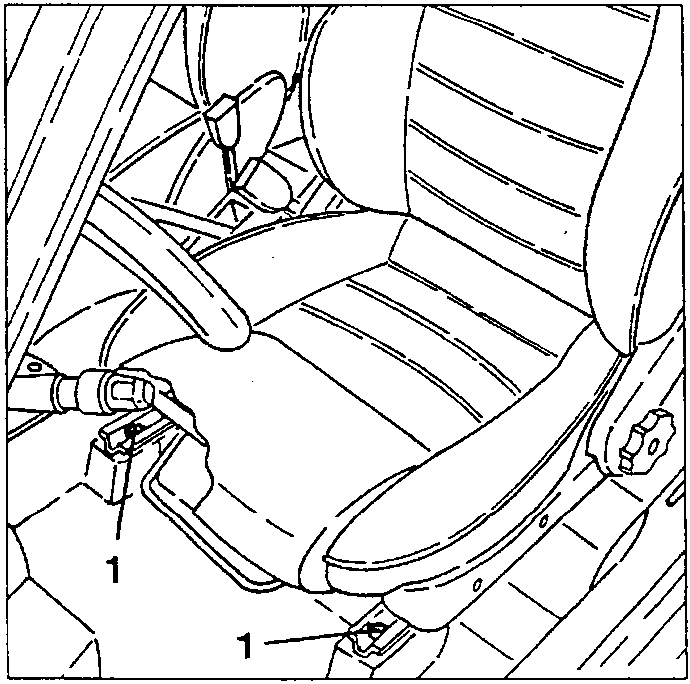

1. Slide the seat fully backwards, loosen the two front screws securing the runners to the floor and remove the seat.
