Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Roof panel (for versions with sunroof)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Internal trim › Roof panel (for versions with sunroof)
BodyworkRoof panel (for versions with sunroof) · page 1 of 2

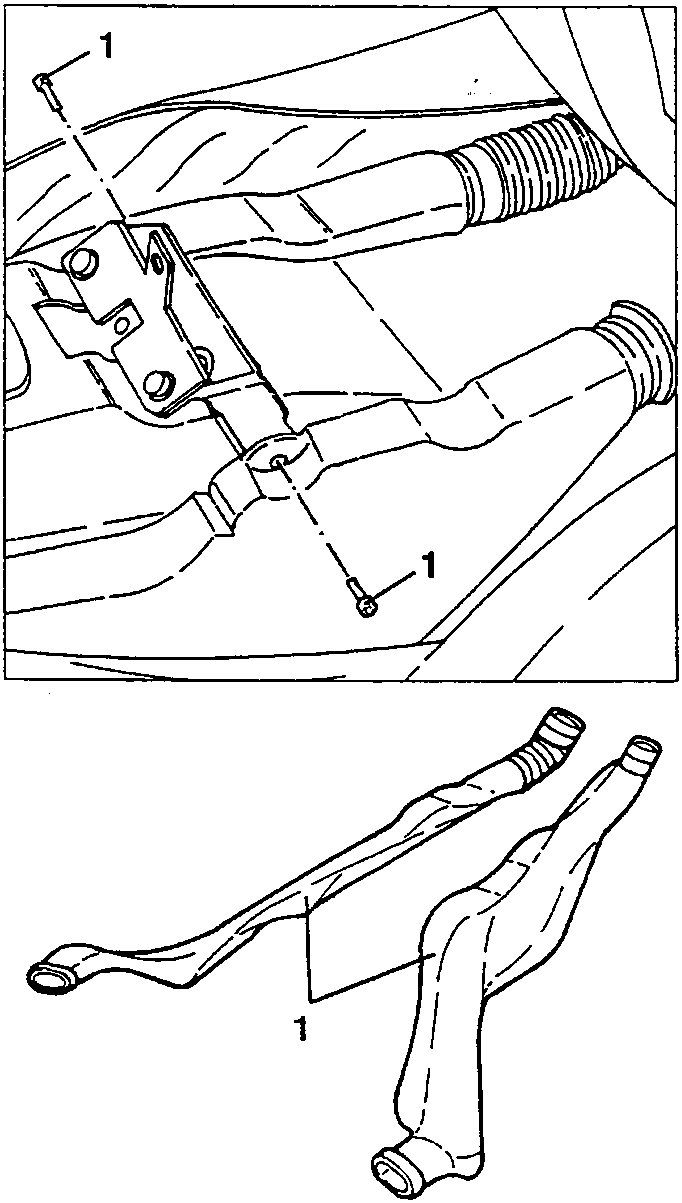

  1. Slacken the screw at each side and remove the two air delivery ducts to the rear passenger feet area.
Air delivery ducts with screws labeled '1'

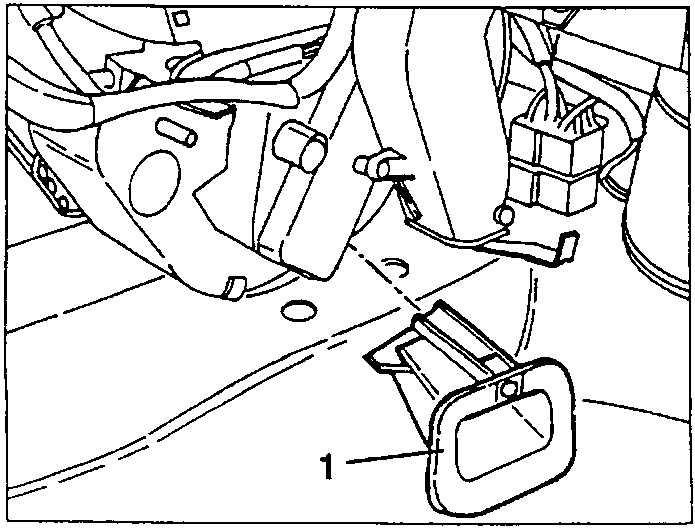

  1. Slacken the fastening screws and remove the air flow vents driver and front passenger feet area .
Air flow vents with screw labeled '1'

ROOF PANEL (FOR VERSIONS WITH SUNROOF)

REMOVAL/REFITTING

  • Disconnect the negative cable from the battery.
  • Remove the passenger grab handles and the caps on the driver’s side (see specific paragraphs).
  • Remove the rear trim from the roof panel (see specific paragraph).
  • Remove the sun visors (see specific paragraph).
  • Remove the front roof light (see GROUP 55).
  • Remove the trim from the front pillars (see specific paragraph).

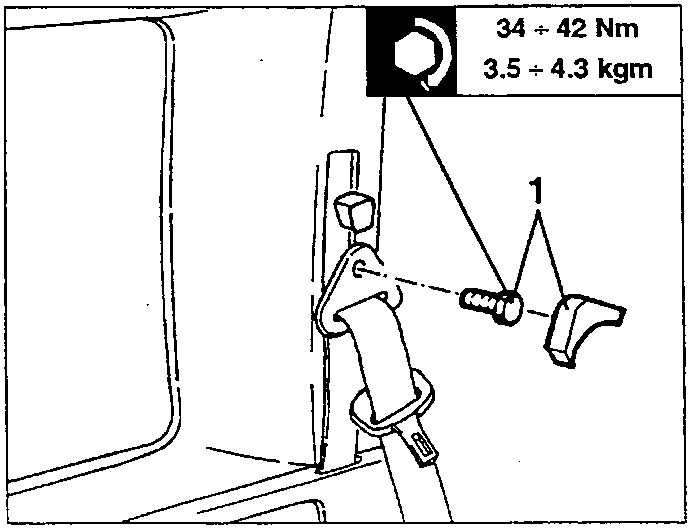

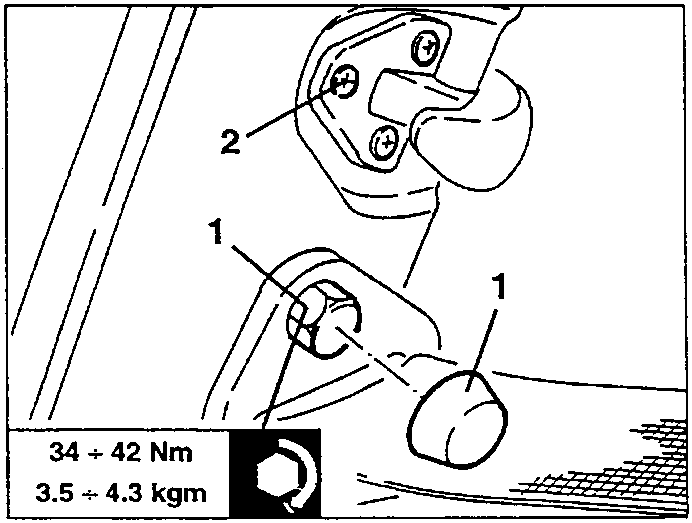

  1. Pull off the covers and unscrew the screws securing the rear seat belt runners.
  2. Loosen the screws securing the quarterlight opening catches on the rear windows.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

Screw assembly with labels '1' and '2'

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

Illustrates door hinge bolt torque specification for vehicle repair
