BodyworkRoof panel (for versions with sunroof) · page 2 of 2
  • Pull the door and boot seals away from their seatings as required.
  1. Loosen the screw securing the window surround.

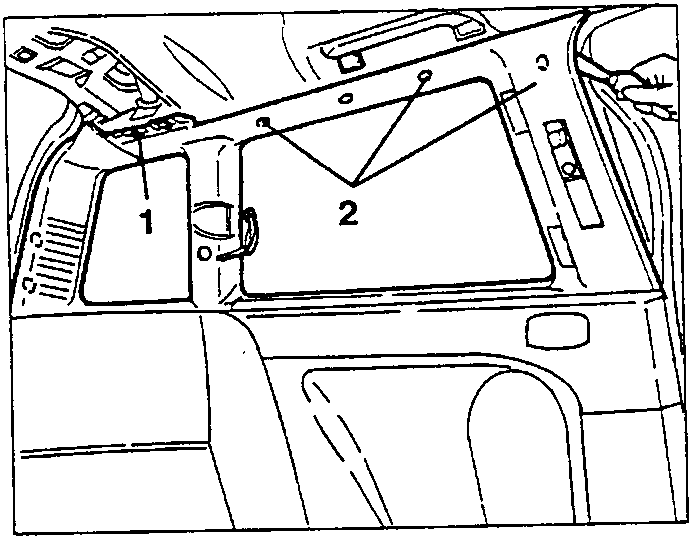

  2. Pull the window mouldings away from the plastic nails positioned as shown in the diagram.
Diagram showing window mouldings being pulled away from plastic nails, with labels 1 and 2 pointing to components.

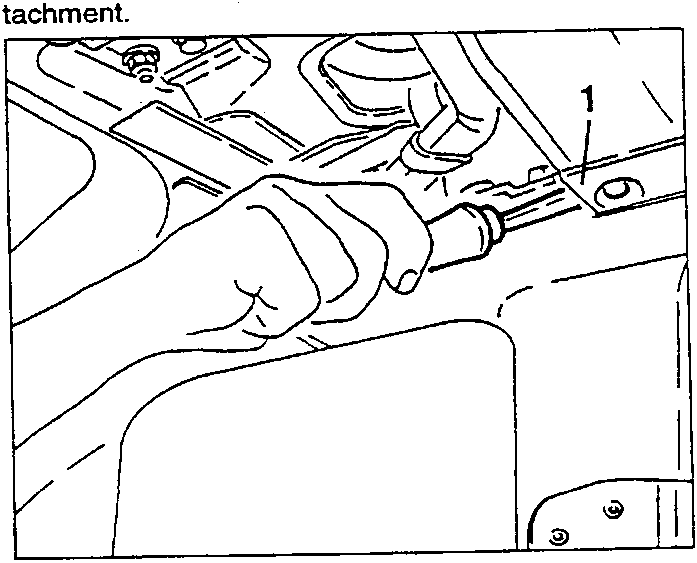

  1. Pull off the button on the roof panel rear attachment.
Hand using tool to remove or install engine mount bolt

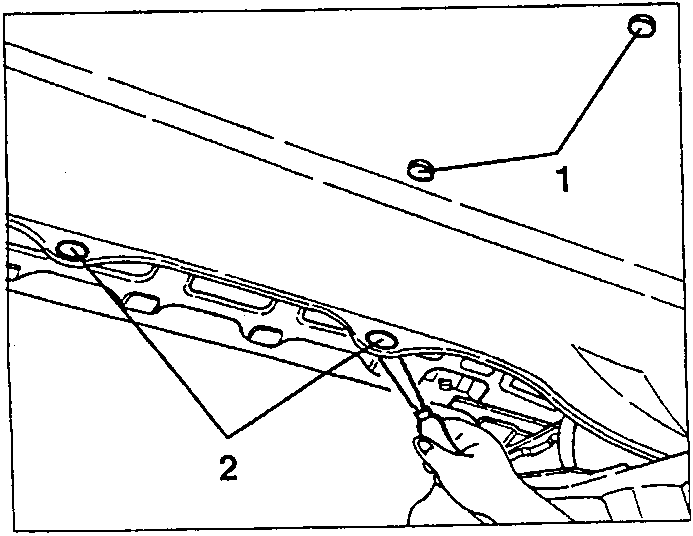

Diagram showing removal of central and rear buttons from a roof panel, with labels 1 and 2 pointing to components.
  1. Loosen and remove the two central buttons.
  2. Pull off and remove the two rear buttons.

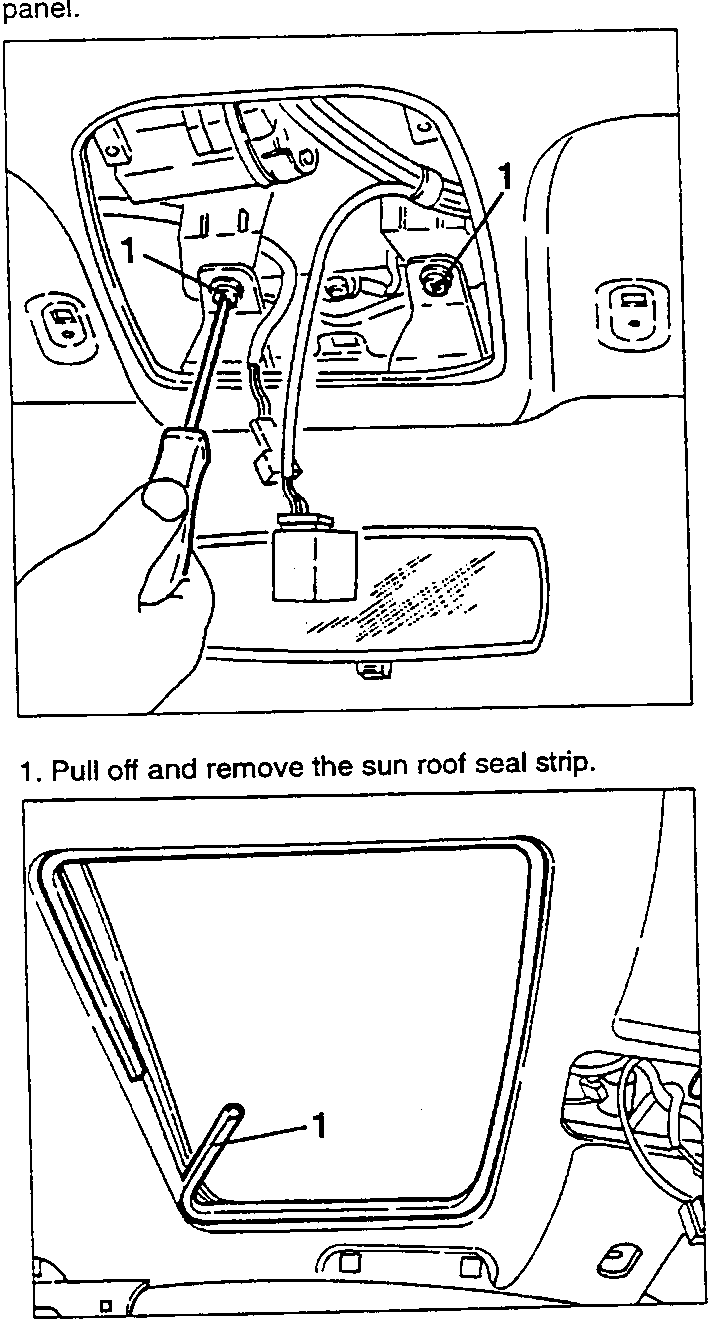

Diagram showing loosening of two front screws securing the roof panel, with label 1 pointing to a screw.
  1. Loosen the two front screws securing the roof panel.
  2. Remove the roof panel moving it first to one side to free it and then to the other and remove from the vehicle through the right-hand door.
Diagram showing removal of the sun roof seal strip, with label 1 pointing to the strip.
  1. Pull off and remove the sun roof seal strip.
