5) duration of the airbag system

The detonated modules should be kept in sealed plastic bags ready for disposal.

If the vehicle is to be sold, the new owner must be informed of the presence of the AIRBAG module.

Check the labels and if necessary have them replaced.

5) DURATION OF THE AIRBAG SYSTEM

The AIRBAG module should last for 10 years (see expiry date on specific label). It must be replaced when this period expires and a new label showing the new date of expiry (month and year) written in indelible ink should be applied.

6) IDENTIFICATION LABELS

On vehicles fitted with an AIRBAG two adhesive labels are present which warn the owner of the presence of the device and its date of expiry.

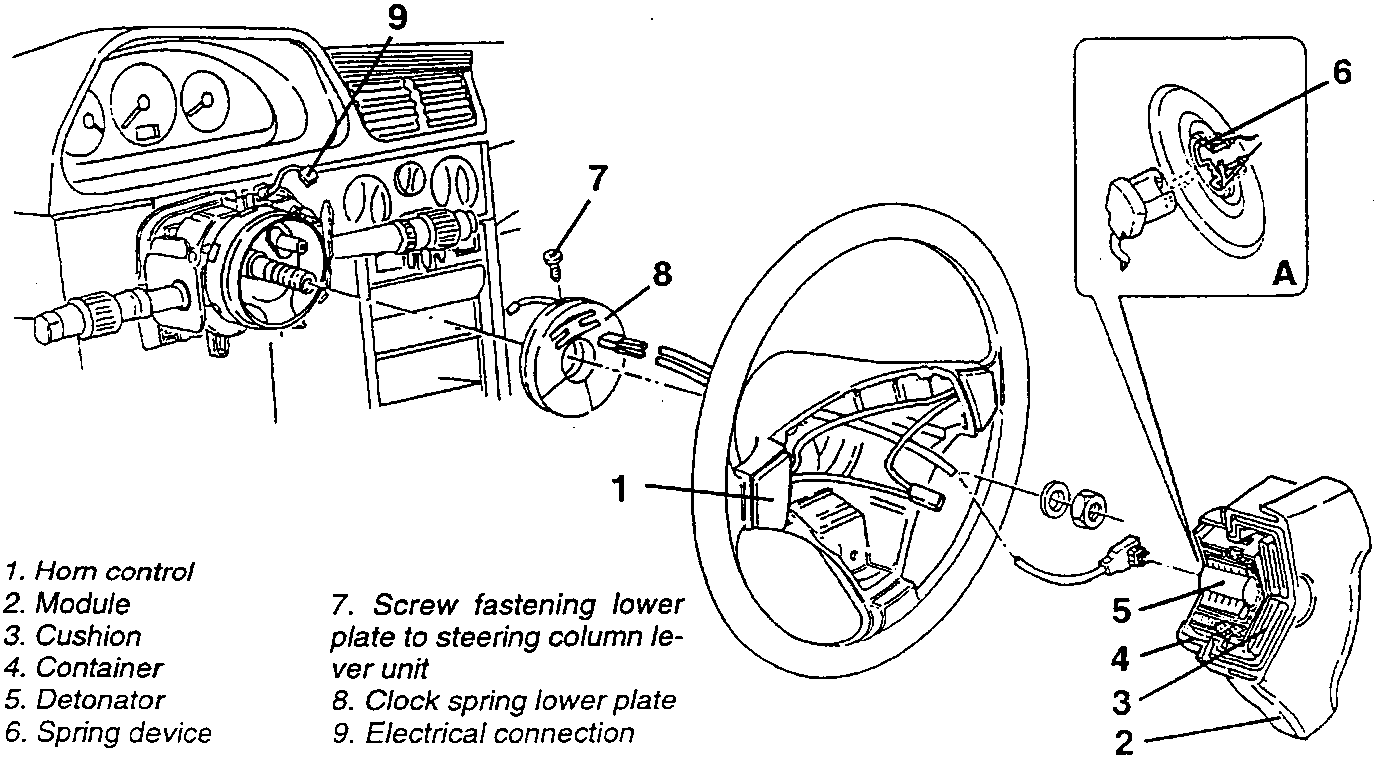

AIR MBAG MODULE ON DRIVERS’S SIDE

The new type of steering wheel is fitted with lateral commands for the horns. The centre of the steering wheel houses the AIR BAG module. It is fixed with three screws to the rear part of the steering wheel. The module is composed of a steel plate covered with a plastic container which forms the hub of the steering wheel.

The container holds a folded cushion and the inflation device. The inflation device contains a detonator which is activated electrically producing a chemical copound (sodium azide) forming nitrogen gas. The rear part of the cushion has holes of a suitable size to allow the cushion to deflate immediately after inflation.

WARNING ! The operators authorized to handle the AIRBAG modules, in addition to scrupulously respecting the indications given above, must be extremely attentive and informed regarding the potential danger resulting from the involuntary intervention of the module.

ATTENTION: consultare il libretto di manutenzione. sostituire la carica entro il

CAUTION: see owner's manual. replace gas generator by

ATTENTION: consulter la notice d'entretien. remplacer la charge avant le

ACHTUNG: Bedienungsanleitungen nachsehen. Ladung ersetzen vor
