Dismantling-reassembling front seat backrest upholstery

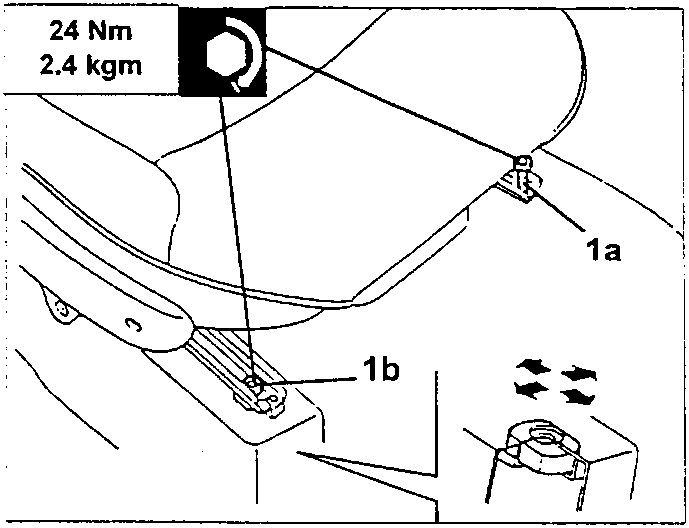

1. Tighten the front fixing bolts, starting from the one on the inside (1a) and continuing with the one on the outside (1b).

The seat should be fixed to the floor without distorting the sliding guides; if necessary, adjust the nuts shown in the diagram making sure that they are free.

NOTE: Each time operations are carried out on the Air Bag system the operation of the system MUST be checked using the diagnostic equipment.

24 Nm
2.4 kgm

DISMANTLING-REASSEMBLING FRONT SEAT BACKREST UPHOLSTERY

• Remove the front seat (see specific procedure).

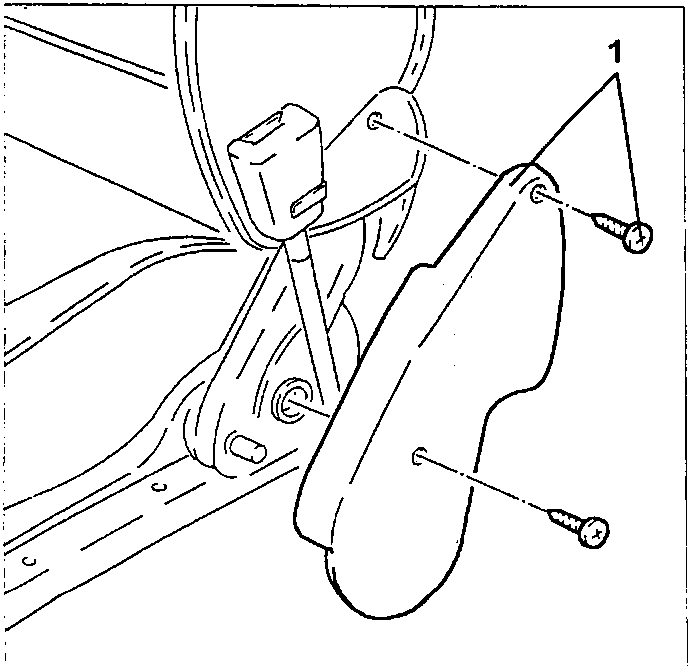

1. Undo the two fixing bolts and remove the hinge trim releasing it from the fastening springs.

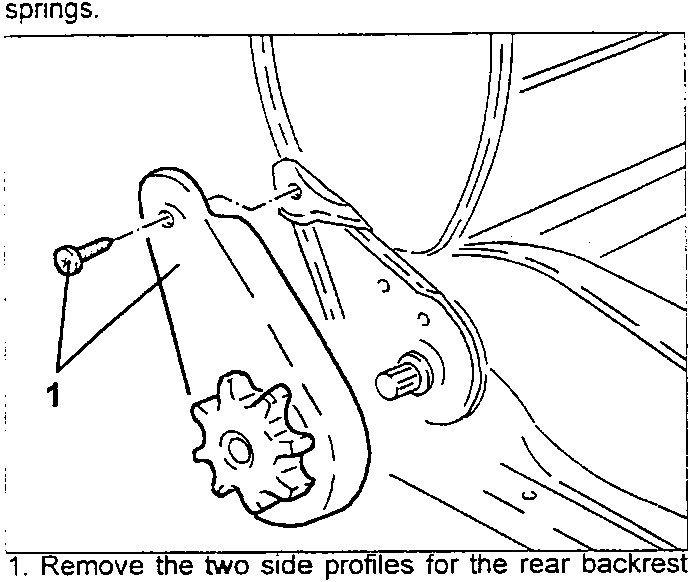

1. Undo the fixing bolt and remove the hinge trim complete with knob releasing it from the fastening springs.

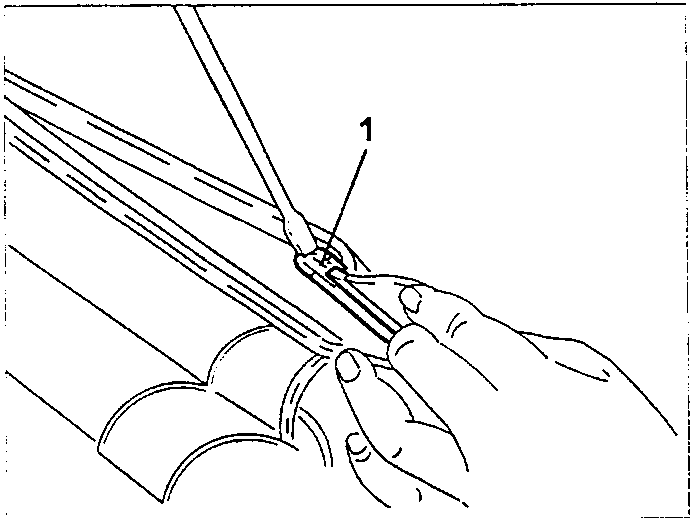

1. Remove the two side profiles for the rear backrest fabric.

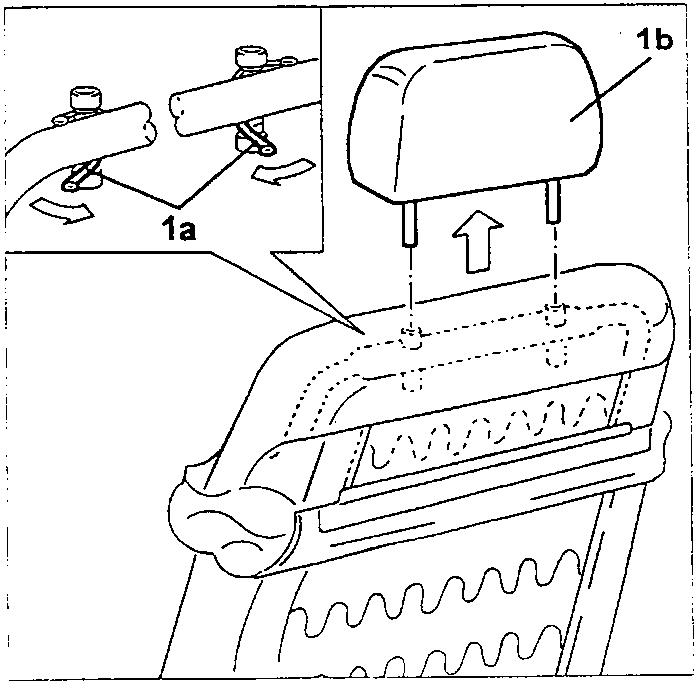

1. Rotate the springs (1a) and remove the head restraint (1b).
