BodyworkAir vent on dashboard
  1. Remove the glovebox from the lower part of the dashboard and slacken the centre console front screw.

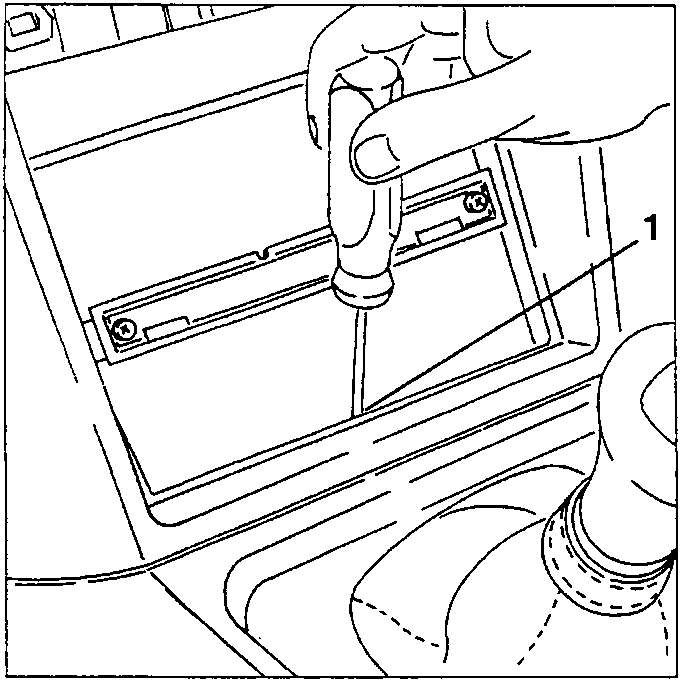

Hand using screwdriver to slacken a screw on the centre console front screw, with a label '1' pointing to the screw
  • Remove the wing mirror adjustment switch from the centre console, then remove it after disconnecting the associated electrical connection.
  1. Release the gearshift lever from its protective cover and remove the centre console.

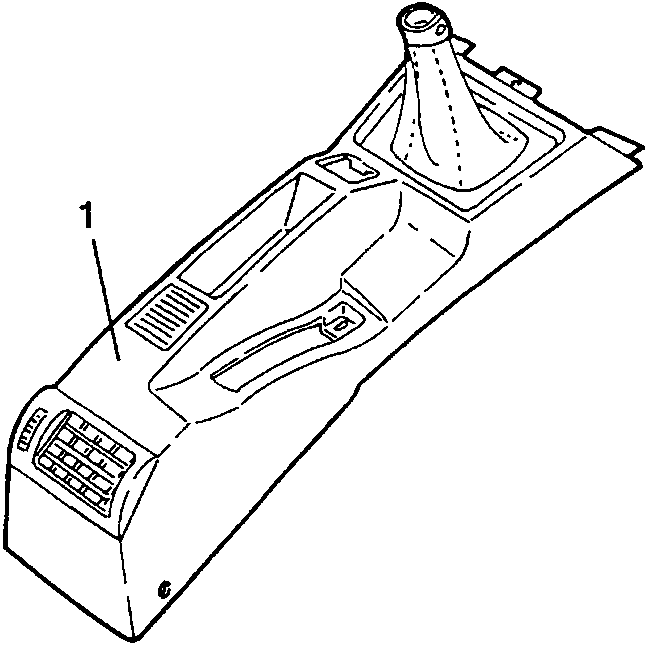

Centre console with a label '1' pointing to the gearshift lever

AIR VENT ON DASHBOARD

REMOVING/REFITTING

  1. Slacken the two fastening screws, then prise and remove the air vent from the dashboard.

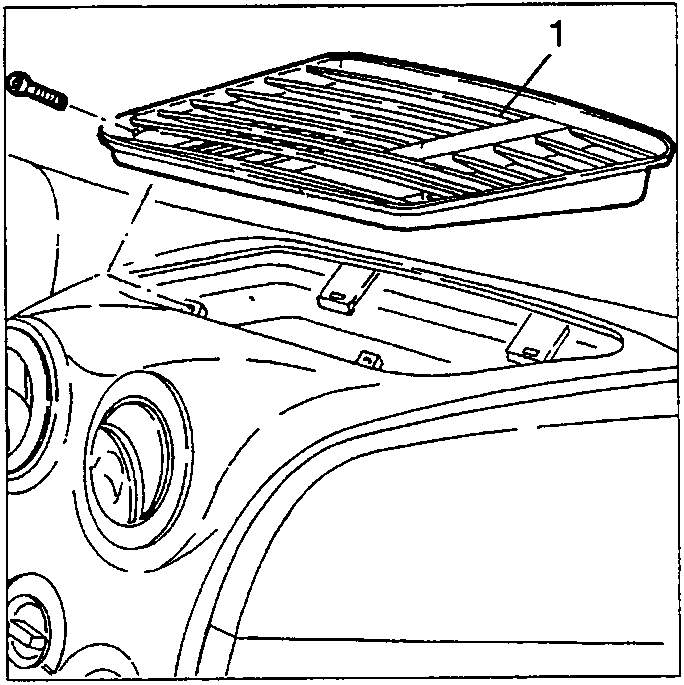

Air vent on dashboard with a label '1' pointing to the air vent

FOOT LEVEL AIR VENT TRIMS

REMOVING/REFITTING

  1. Slacken the two fastening screws, prise the plastic rivet, then remove the foot level air vent trims.

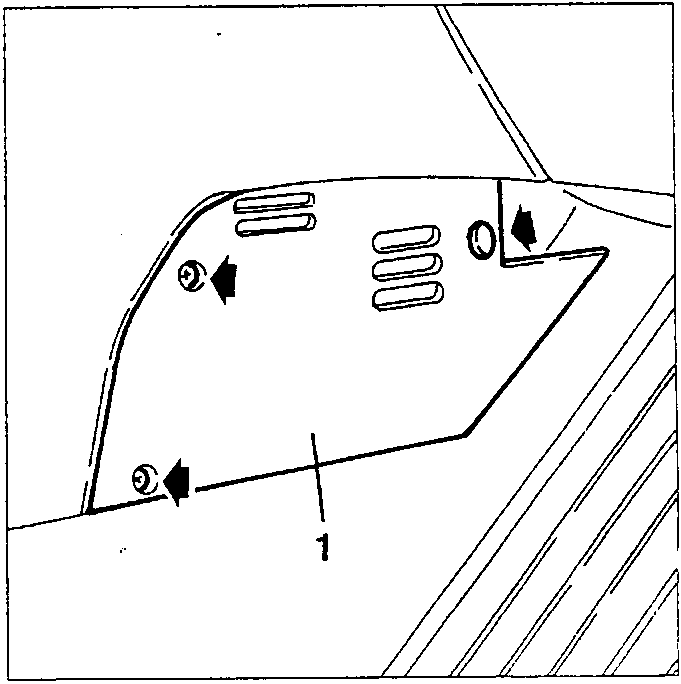

Foot level air vent trims with arrows indicating removal direction and a label '1' pointing to the trim
