LUGGAGE GUARD

REMOVING/REFITTING

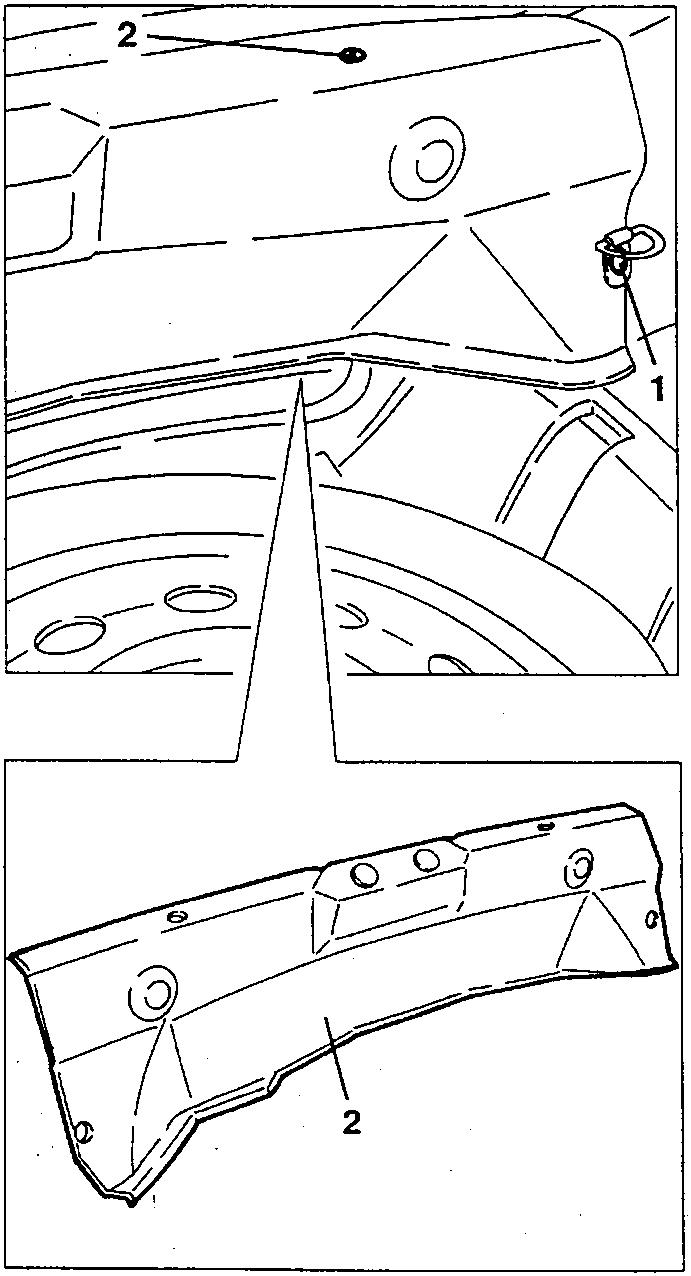

  1. Working from the luggage compartment, prise the two plastic rivets fastening the luggage check strap. 2. Slacken the two fastening screws and remove the luggage guard.
Luggage guard removal diagram showing rivets and screws

FUSEBOX COVER TRIM

REMOVING/REFITTING

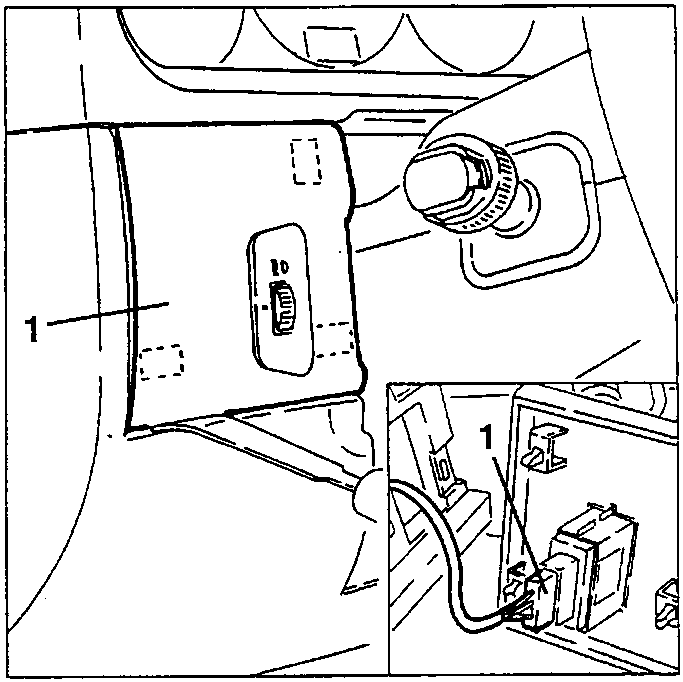

  • Disconnect the battery (-) terminal. 1. Prise the dashboard left hand trim and move it back just enough to disconnect the electrical connection from the headlamp aiming device switch, then remove it.
Fusebox cover trim removal diagram showing dashboard trim and electrical connection

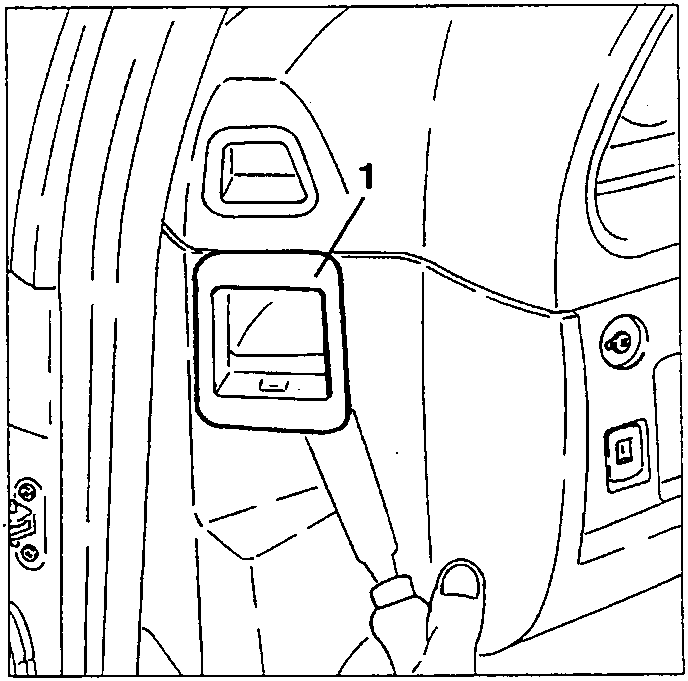

  1. Remove the air delivery vent to the driver’s door from the dashboard.
Air delivery vent removal diagram showing dashboard vent
