LUGGAGE COMPARTMENT SEAL

REMOVAL/REFITTING

  • Remove the protective covering (see specific paragraph).
  1. Remove the joins from the ends of the seal.
  2. Pull away the seal beginning from the join.

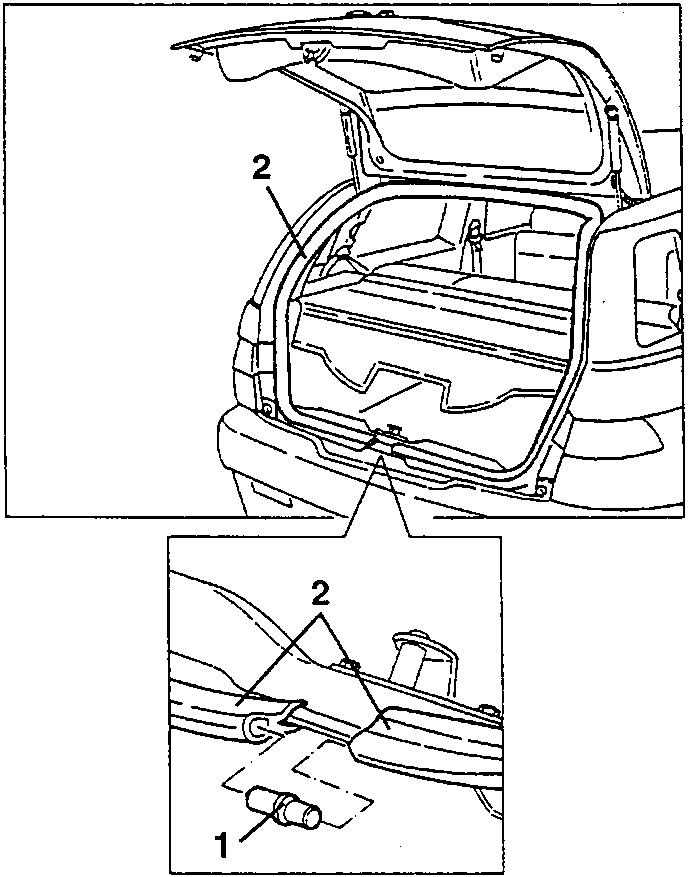

Luggage compartment seal removal: 1. Seal, 2. Join

SEAL ON QUARTERLIGHT WINDOW

REMOVAL/REFITTING

  • Remove the window mouldings (see specific paragraph).
  • Remove the quarterlight window (see specific procedure).
  1. Pull off and remove the quarterlight seal.

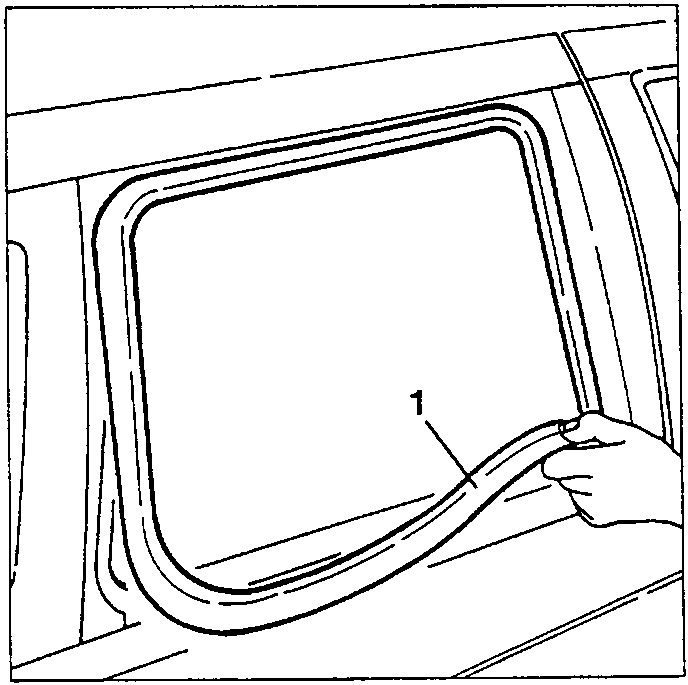

Quarterlight window seal removal: 1. Seal

SIDE WINDOW LOWER SEAL

REMOVAL/REFITTING

  1. Pull off and remove the side window lower seal.

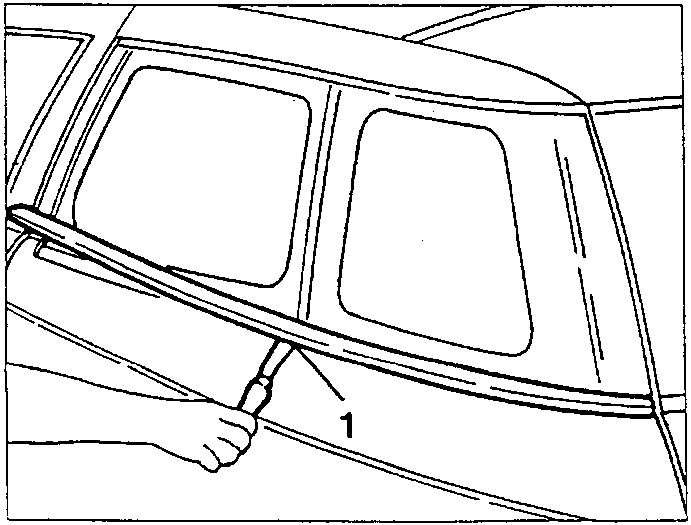

Side window lower seal removal: 1. Seal

SERVICES TANK SEAL

REMOVAL/REFITTING

  • Remove the air intake grille (see specific procedure).
  1. Pull off and remove the services tank seal.

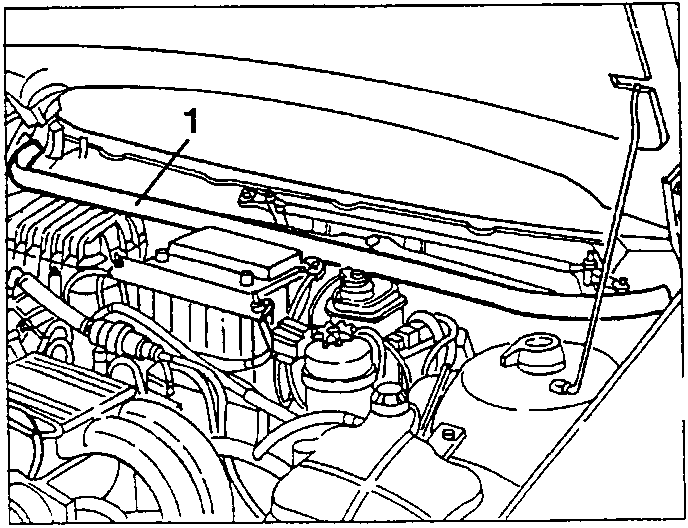

Services tank seal removal: 1. Seal
