BodyworkRear seat belts

REAR SEAT BELTS

REMOVAL/REFITTING

  • Remove the side shelves supporting the haltshelf (see specific paragraph).

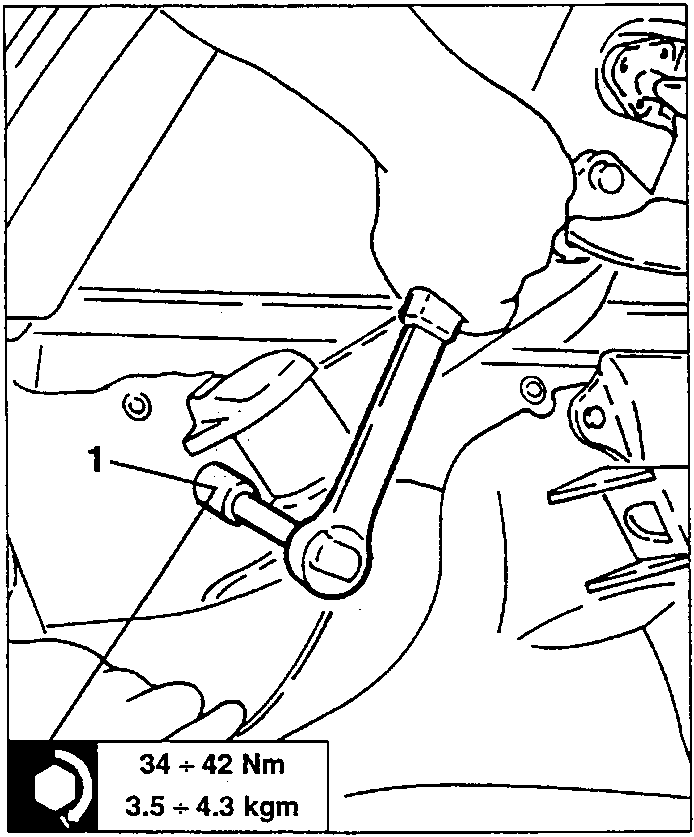

  1. Lower the covering and loosen the re-winding mechanism attachment screw.
Diagram showing a screw being loosened on a re-winding mechanism attachment.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

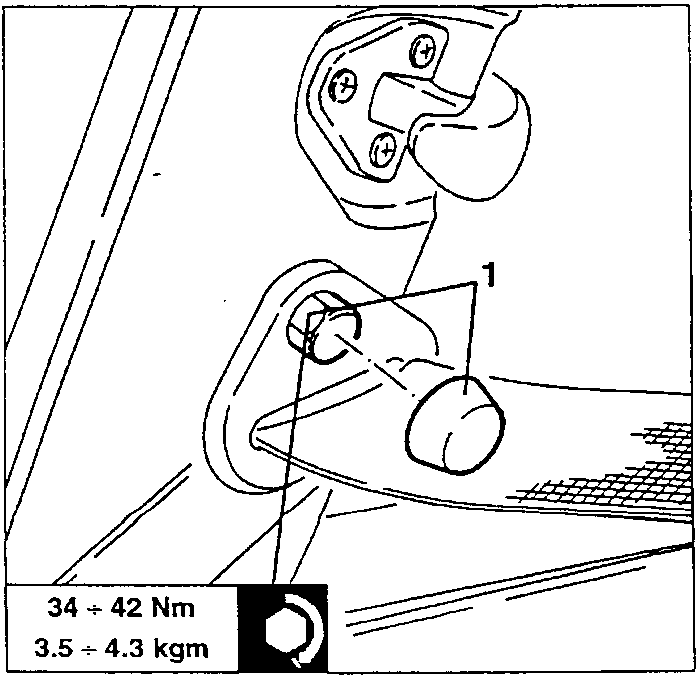

  1. Pull off the cover from the rear seat belt runner attachment screw and then loosen the screw.
Diagram showing a cover being pulled off a screw on a rear seat belt runner attachment.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

  • Return the rear seat backrest to the vertical position.
  • Tip the rear seat cushion forwards.

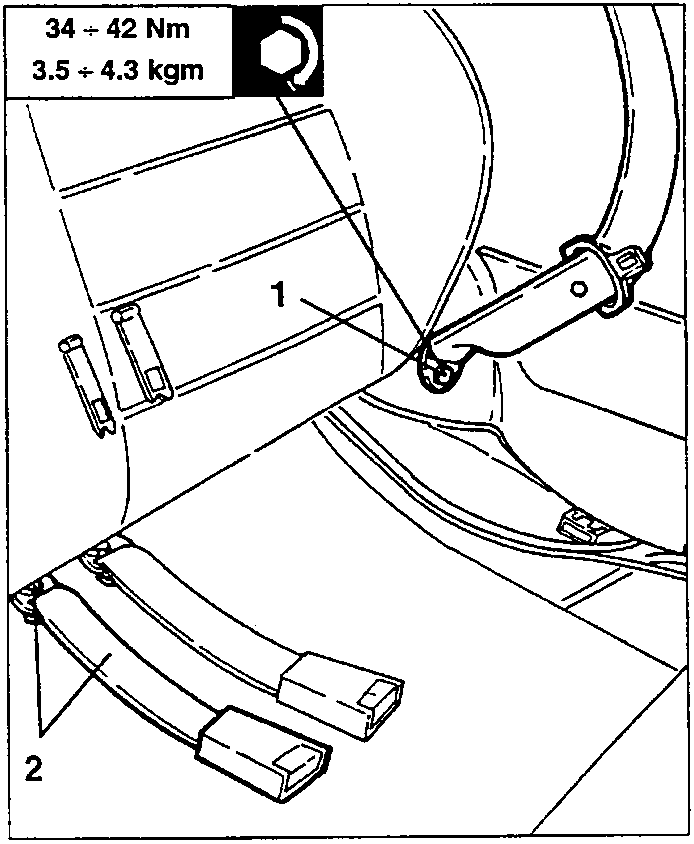

  1. Loosen the screw on the seat belt lower attachment and remove the screw.
  2. Loosen the screw and remove the seat belt stalk.
Diagram showing a seat belt stalk being removed from a rear seat cushion.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

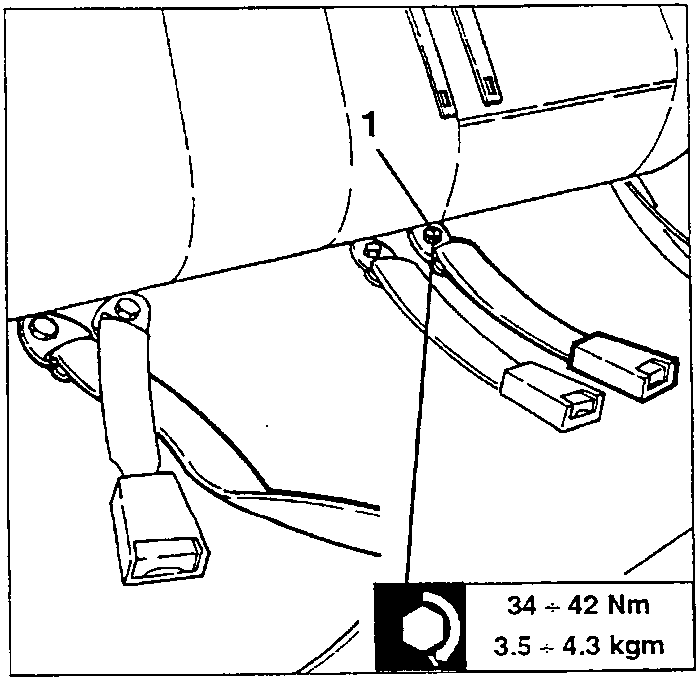

  1. Loosen the screws and remove the lap-belt from the central rear seat position.
Diagram showing a lap-belt being removed from a central rear seat position.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm
