SIDE PANELS

REMOVING/REFITTING

  • Remove the rear seats (see specific paragraph).

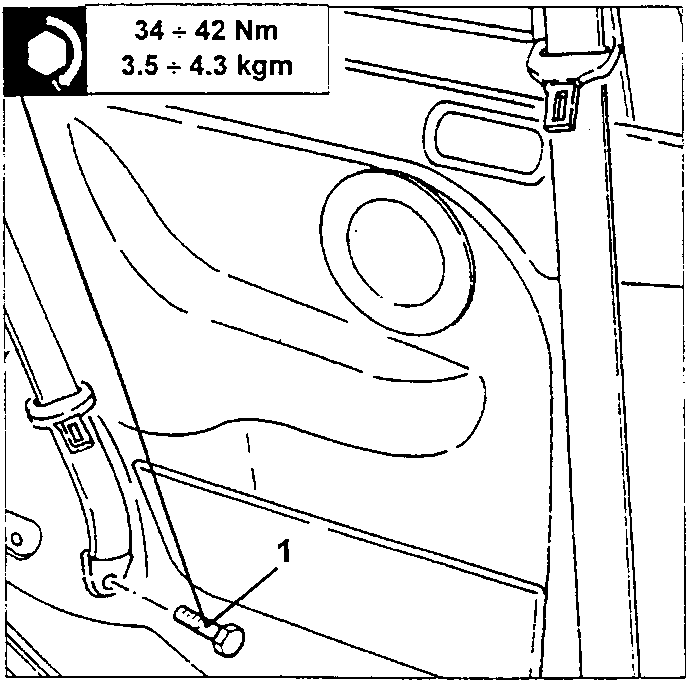

  1. Undo the bolt fixing the rear seat belt lower mounting.
Diagram showing bolt for rear seat belt lower mounting

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

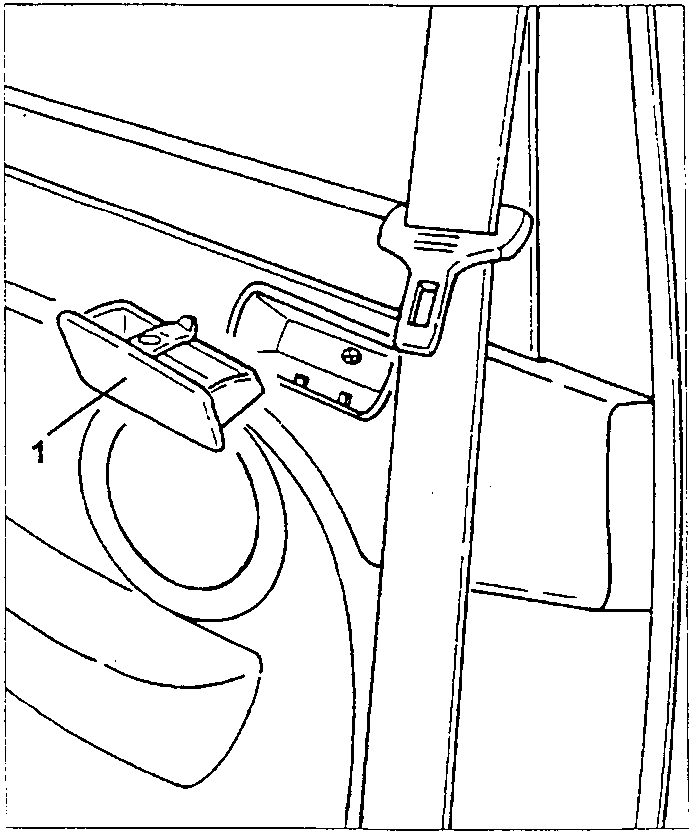

  1. Release and remove the ashtray from the housing.
Diagram showing ashtray release mechanism

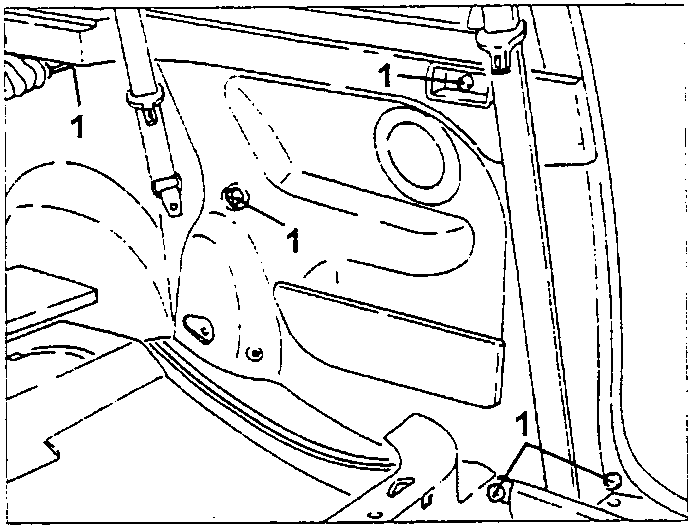

  1. Undo the five bolts fixing the panel to the bodyshell.
Diagram showing five bolts securing side panel to bodyshell

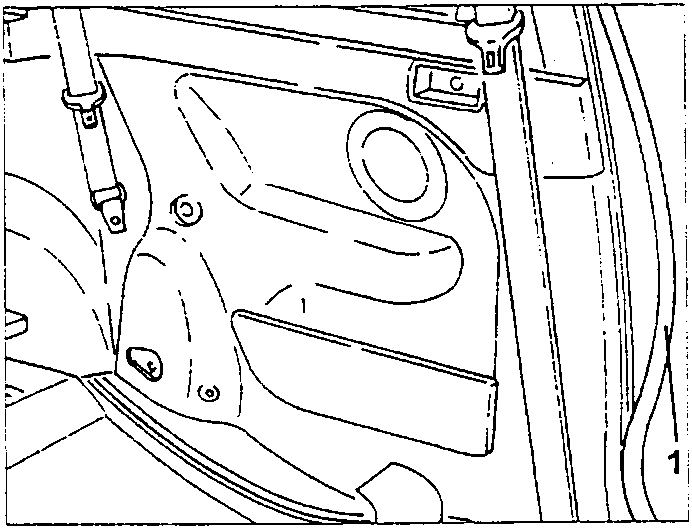

  1. Remove the door trim, as necessary.
Diagram showing door trim removal

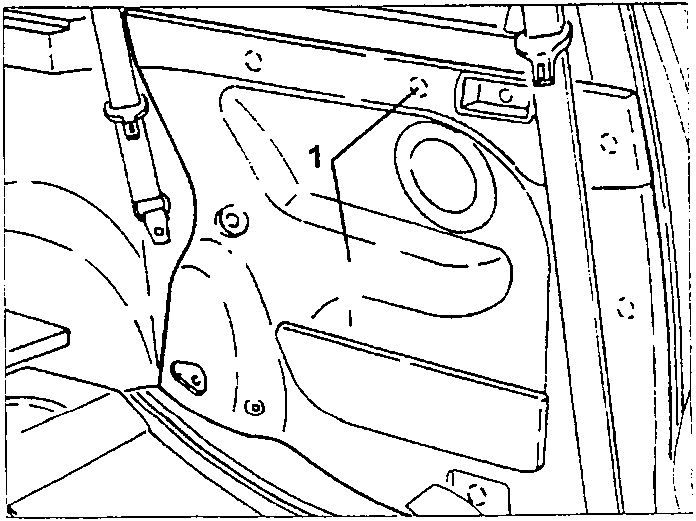

  1. Remove the five plastic nails positioned as illustrated in the diagram and remove the side panel.
Diagram showing five plastic nails for side panel removal
