Dismantling/reassembling front seat cushion cover

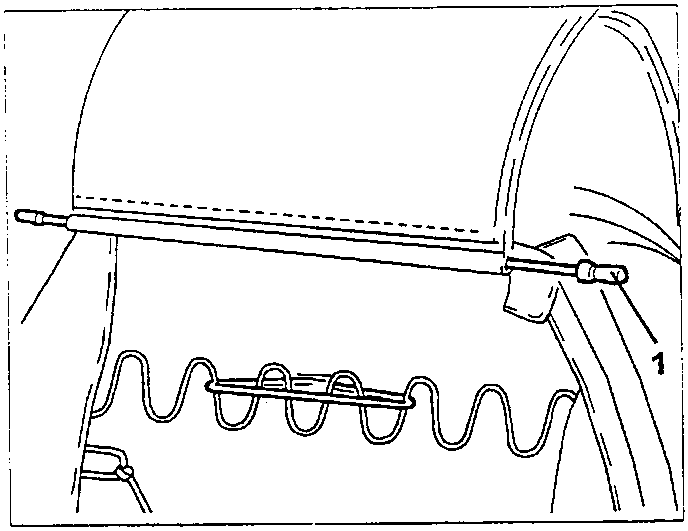

1. Remove the upper backrest cover retaining rod.

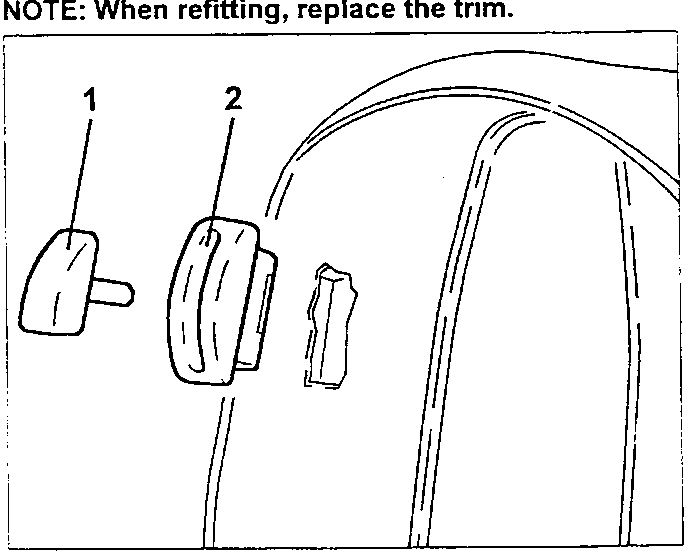

1. Remove the seat folding lever.
   2. Remove the trim.

NOTE: When refitting, replace the trim.

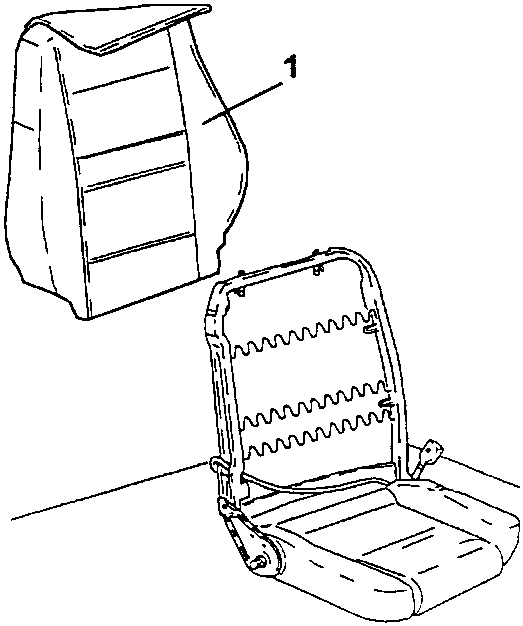

1: Remove the front seat backrest cover complete with upholstery.

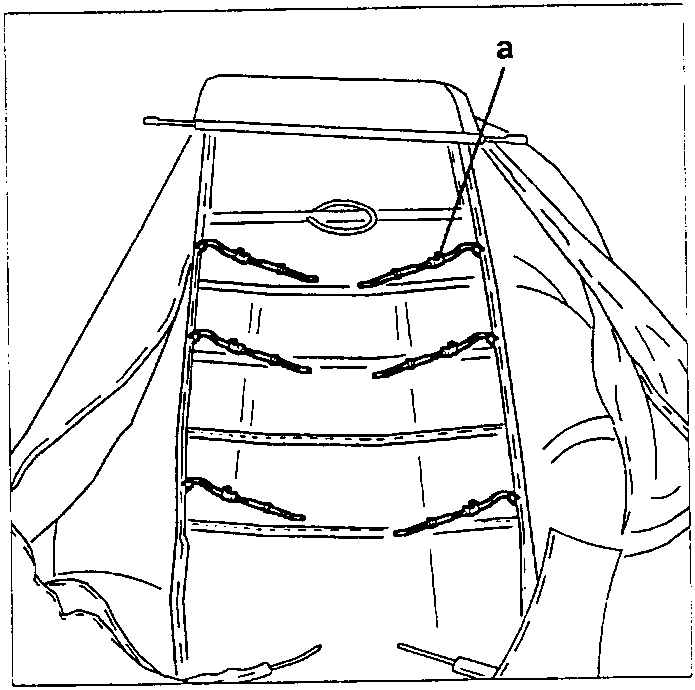

NOTE: When refitting, check that the seat rods are correctly positioned.

If the rods (a) are incorrectly fitted this will adversely affect the operation of the Side Bag.

NOTE: Before fitting a new backrest cover on the seat, make the openings for the head restraint pins and the folding lever.

DISMANTLING/REASSEMBLING FRONT SEAT CUSHION COVER

• Remove the front seat (refer to the specific procedure).

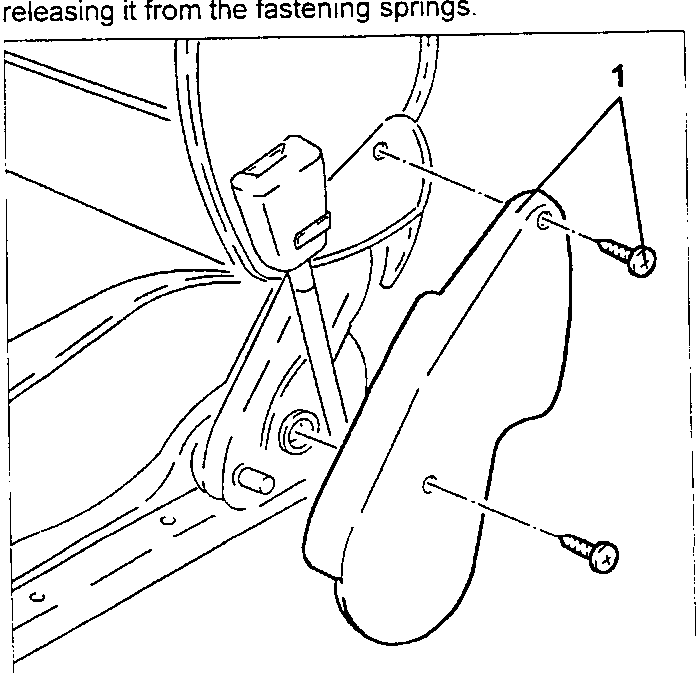

1. Undo the two fixing bolts and remove the hinge trim releasing it from the fastening springs.
