BodyworkDismantling/reassembling front seat cushion cover · page 2 of 2

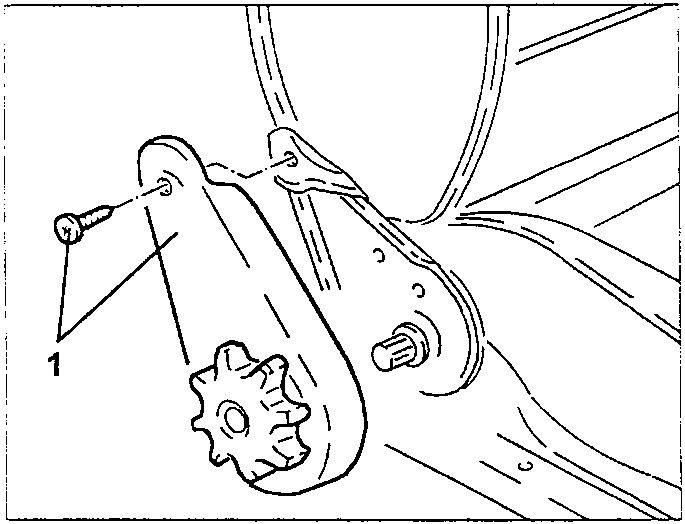

  1. Undo the fixing bolt and remove the hinge trim complete with knob releasing it from the fastening springs.
Diagram showing a fixing bolt and hinge trim being removed from a car's interior panel.

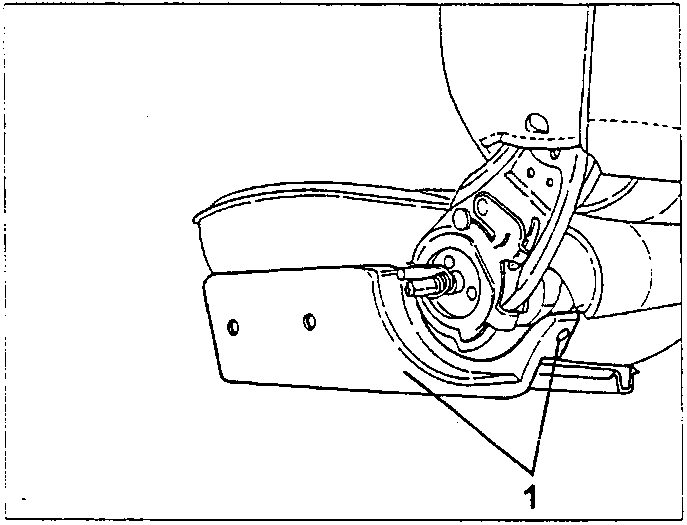

  1. Undo the fixing bolts and remove the right and left hinge trim.
Diagram showing a close-up of a hinge mechanism with bolts being loosened.

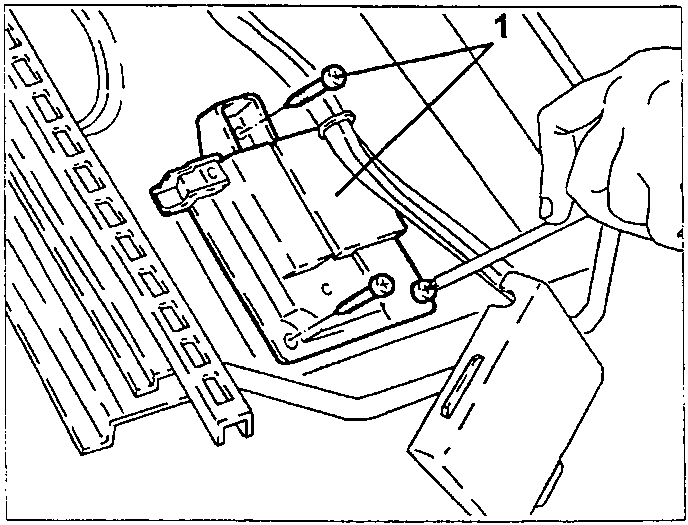

  1. Remove the connector box fastened to the base of the seat.
Diagram showing a hand removing a connector box from the base of a car seat.

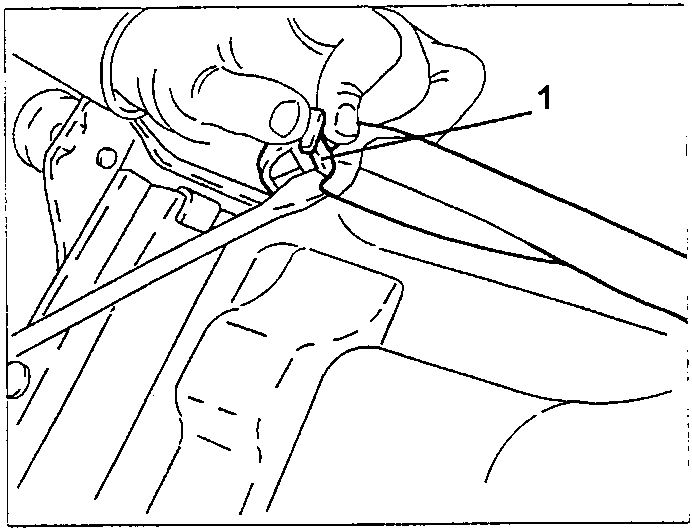

  1. Release the seat cover from the base of the rear of the seat.
Diagram showing hands releasing the seat cover from the rear base of the seat.

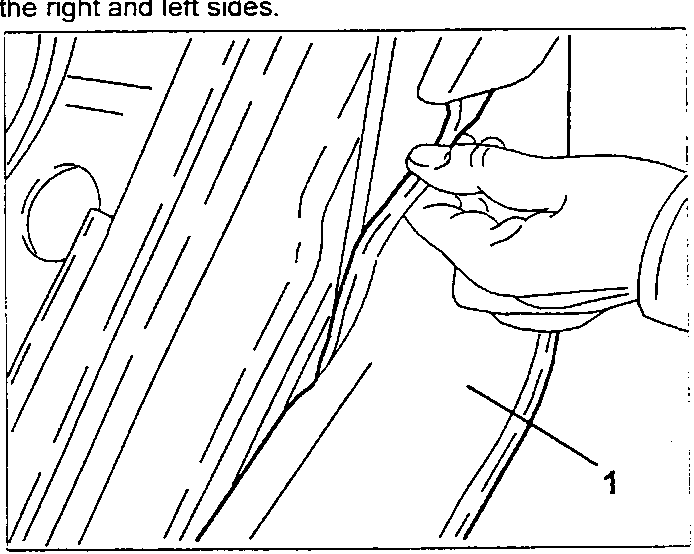

  1. Release the seat cover from the base of the seat on the right and left sides.
Diagram showing hands releasing the seat cover from the side base of the seat.

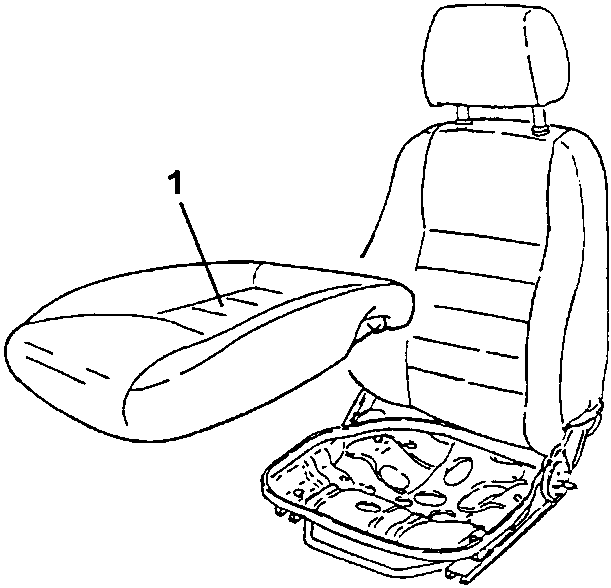

  1. Remove the cushion.
Diagram showing a car seat with the cushion removed, revealing the base and internal components.
