BodyworkLuggage compartment protective trim

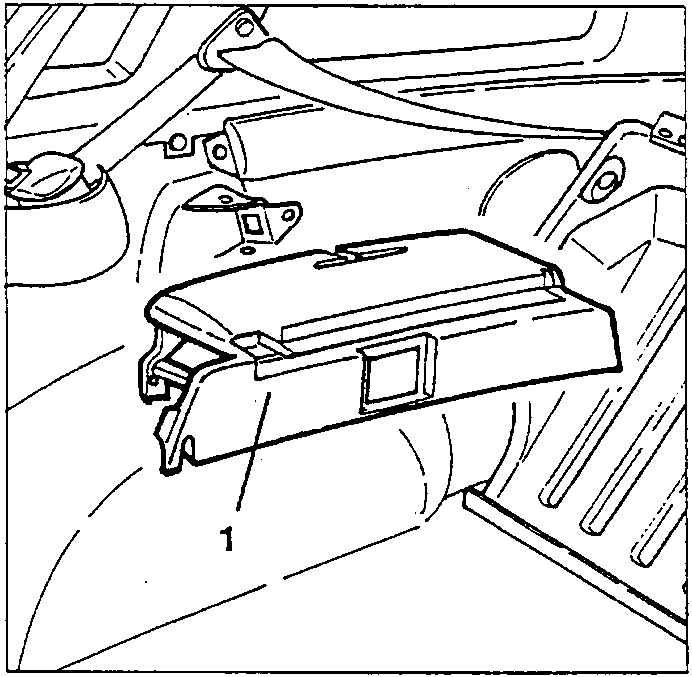

  1. Remove the side parcel shelf support bracket withdrawing the safety belt from its housing.
Side parcel shelf support bracket with safety belt

LUGGAGE COMPARTMENT PROTECTIVE TRIM

REMOVAL/REFITTING

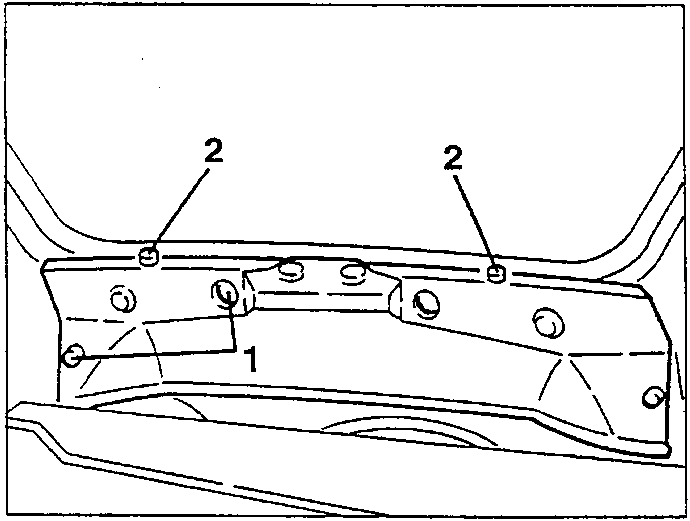

  1. Working from the luggage compartment, remove the four plastic nails fastening the protective trim.
  2. Slacken the two screws fastening the luggage compartment protective trim and remove it.
Luggage compartment protective trim with plastic nails and screws

FRONT SEAT BELTS

REMOVAL/REFITTING

  • Unarm the pre-tensioning device as described in "Removing/Refitting the arming rod".

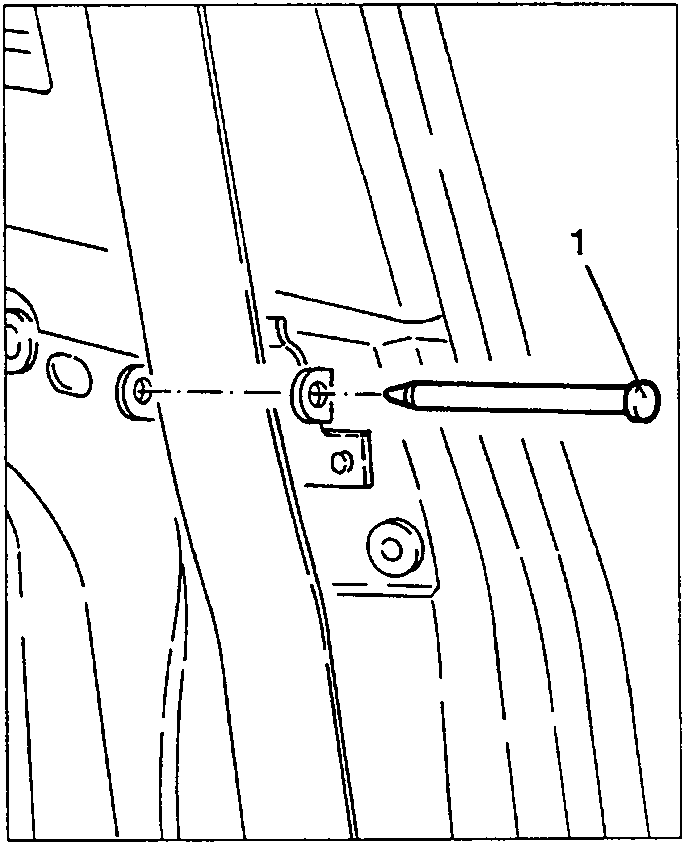

  1. Withdraw the belt holder bracket guide pin.
Belt holder bracket guide pin

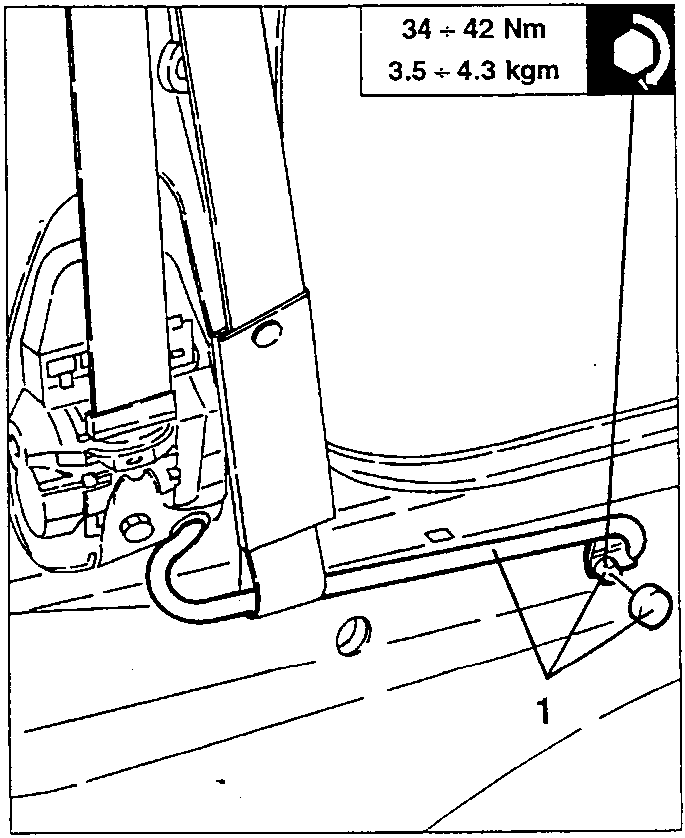

  1. Remove the cap, slacken the fastening screw, then remove the lower seat belt slider connection.
Lower seat belt slider connection with torque specification

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm
