Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Disassembling/reassembling the backrest

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Internal trim › Disassembling/reassembling the backrest
BodyworkDisassembling/reassembling the backrest · page 1 of 2

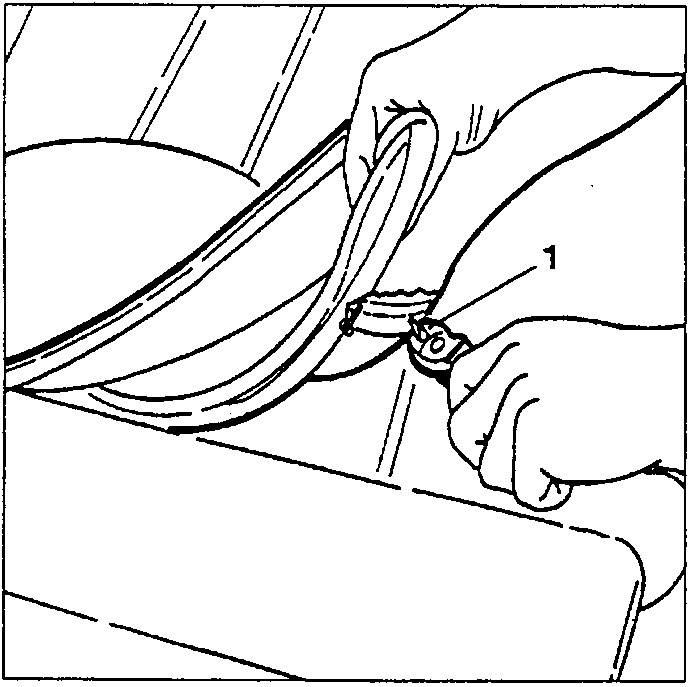

  1. Using a pair of shears cut the clips securing the cover to the seat and remove the cover.
Hand using shears to cut clip securing cover to seat

Refit by reversing the procedure followed for removal and note the following:

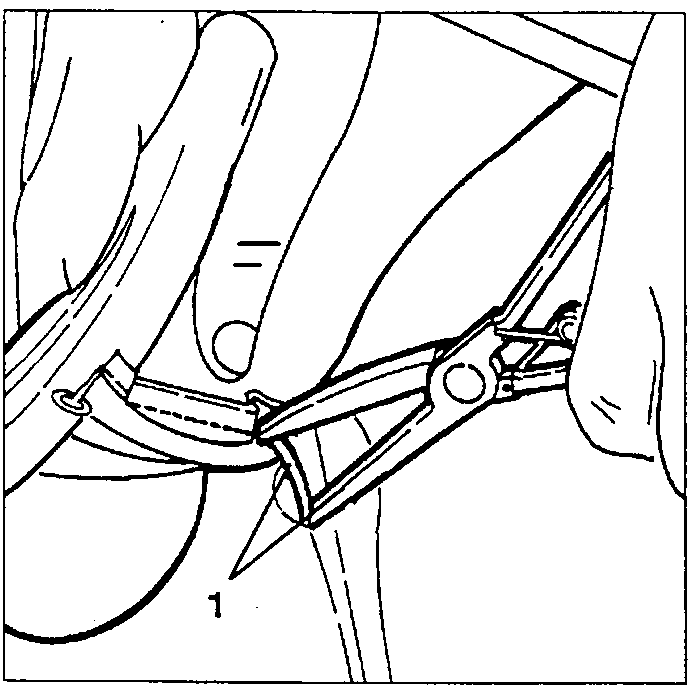

  1. Secure the covering with the clips using the appropriate pliers supplied as a spare part.
Hand using pliers to secure clip on covering
  • Using a plastic mallet clinch the edge of the covering attachment.

DISASSEMBLING/REASSEMBLING THE BACKREST

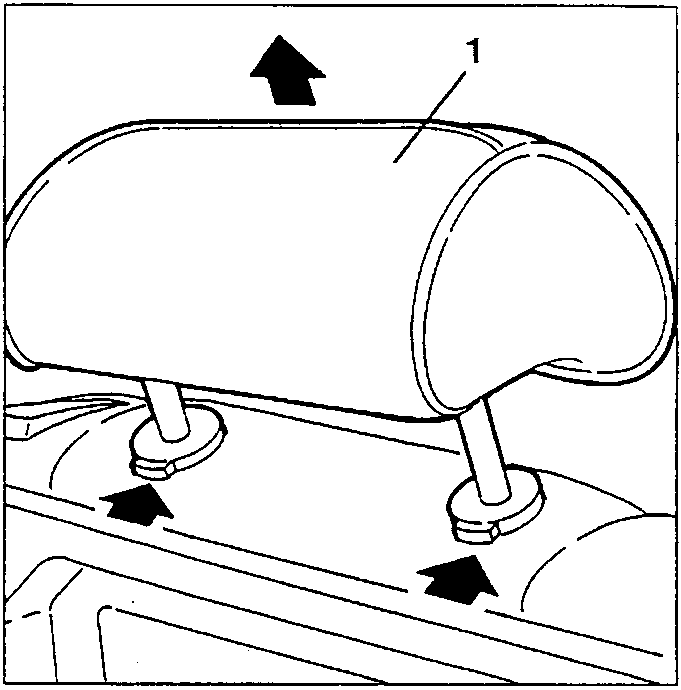

  1. Remove the headrest by pressing the clips and at the same time pulling the headrest upwards.
Headrest being pulled upwards from backrest hinge

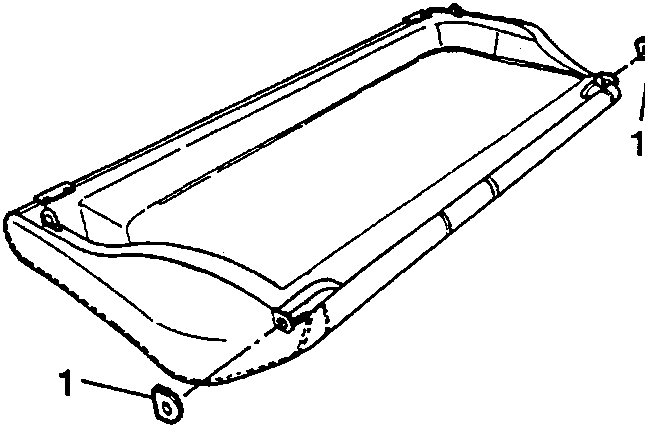

  1. Remove the two plastic trim pieces from the backrest hinge.
Two plastic trim pieces removed from backrest hinge

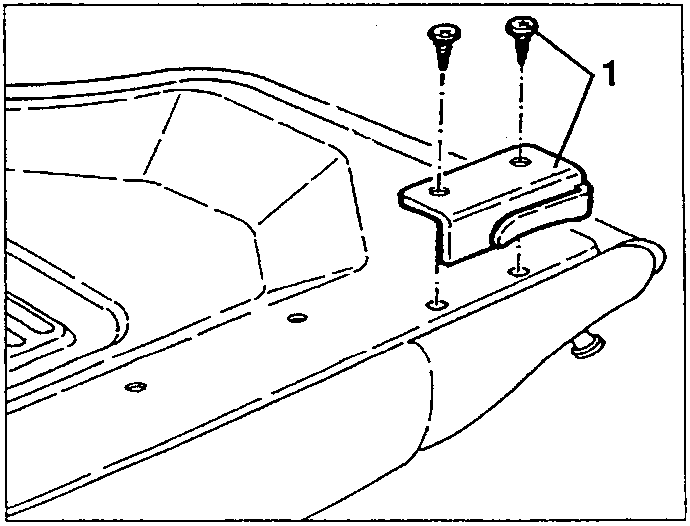

  1. Loosen the two screws and remove the seat belt runners.
Two screws being loosened to remove seat belt runners
