Disassembling/reassembling the backrest (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 145/146 Factory Service Manual
- Year
- 1994–1999
- Section
- Internal trim
BodyworkDisassembling/reassembling the backrest · page 2 of 2

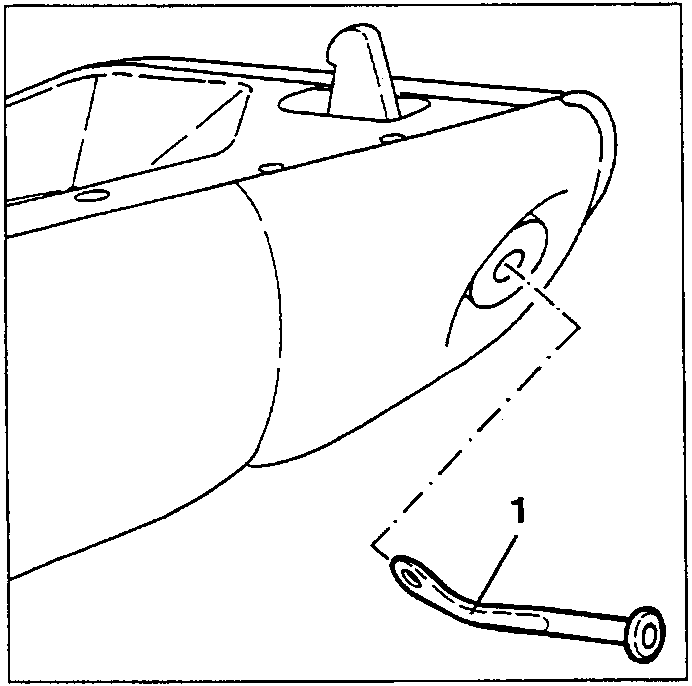

- Remove the pins releasing the backrest catch.

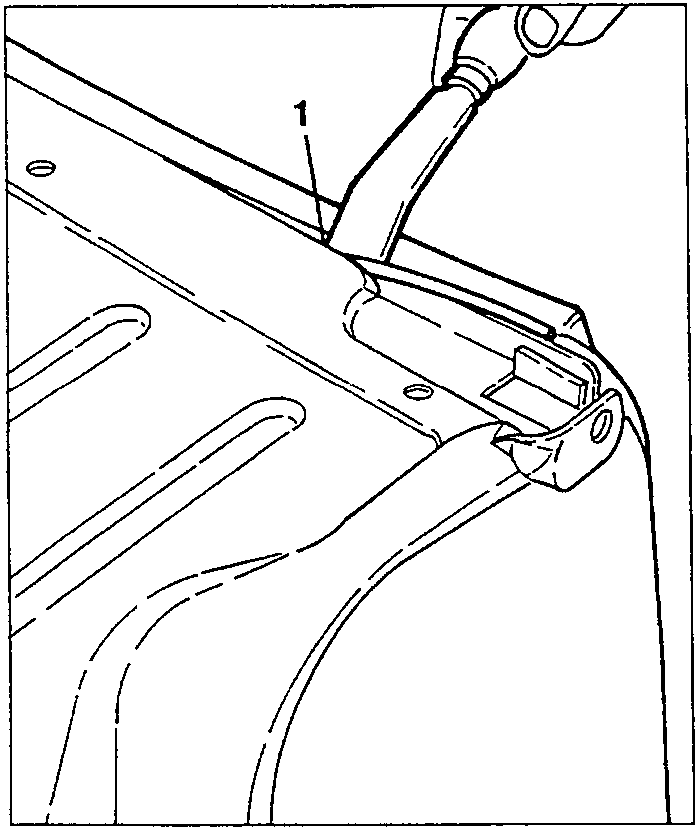

- Working as shown in the diagram, pull the covering from the backrest.
NOTE: Care should be taken when removing the covering from the backrest release pins trim.

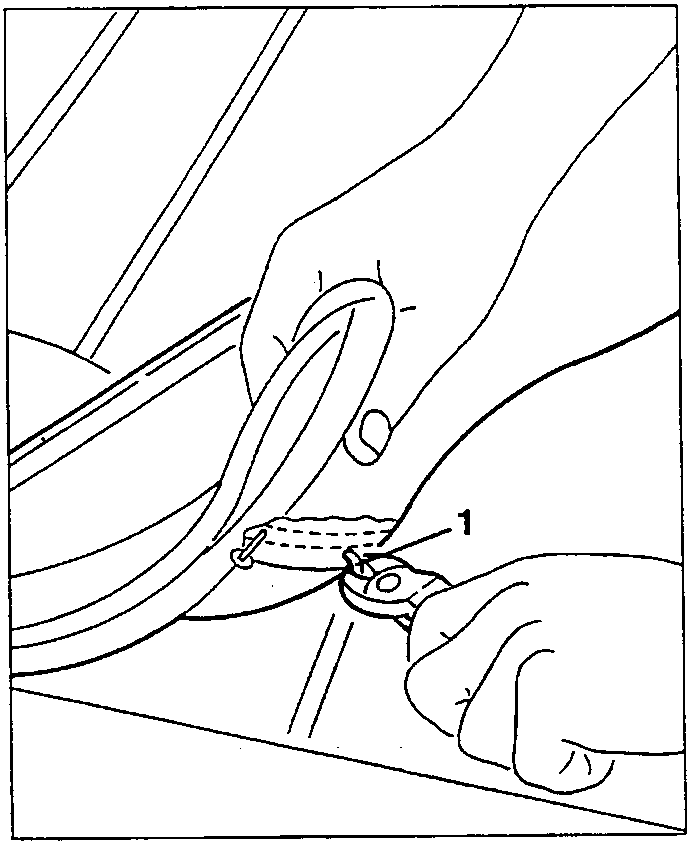

- Using a pair of shears, cut the clips securing the backrest covering.

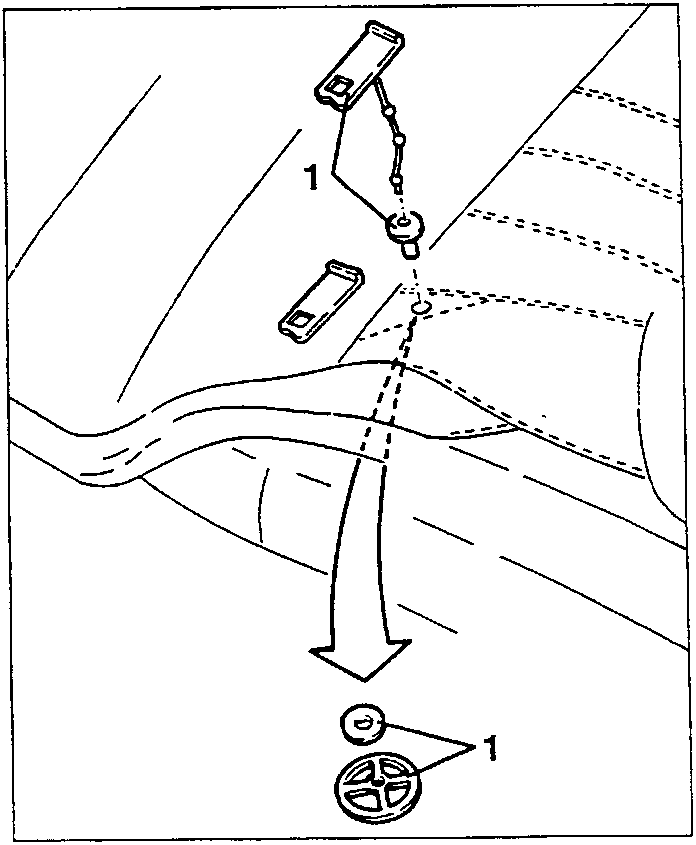

- Remove the seat belt support attachments from the backrest and remove the covering.
