Dismantling/reassembling passenger seat

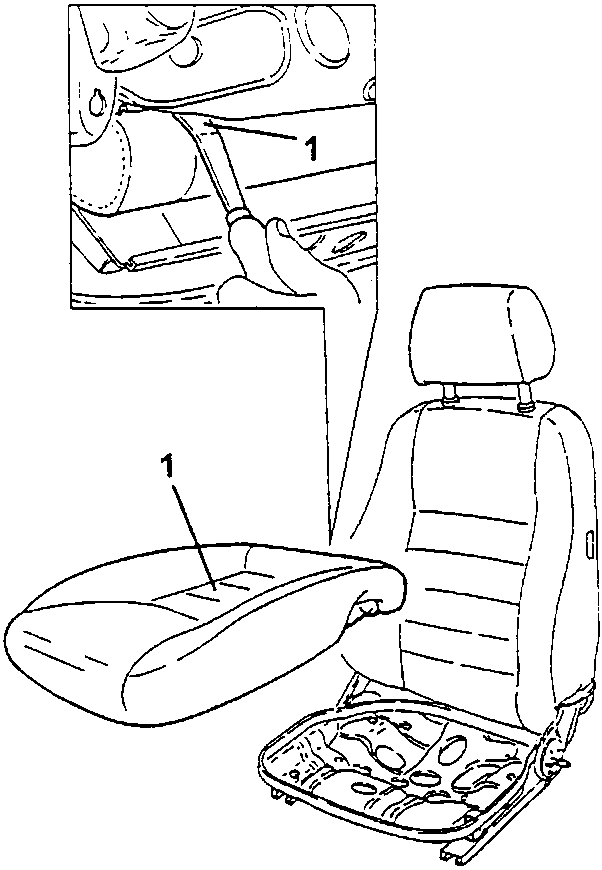

Remove the cushion cover, then remove the cushion complete with cover.

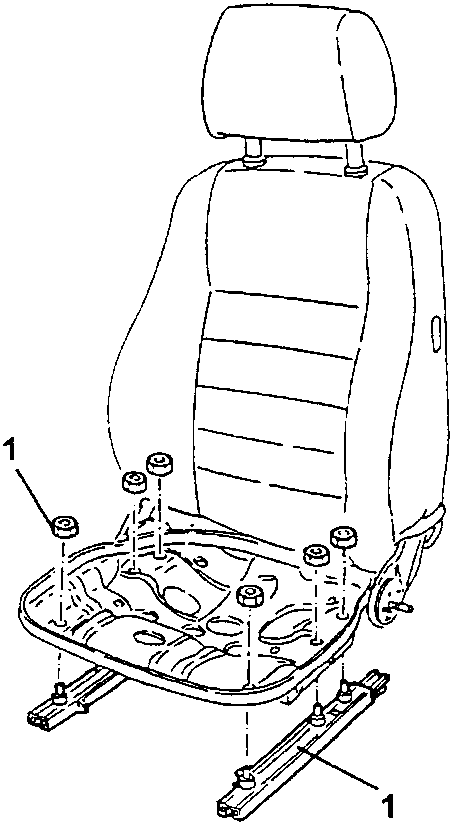

1. Undo the six fixing bolts and remove the seat runners.

DISMANTLING/REASSEMBLING PASSENGER SEAT

Proceed with the dismantling, working in the same way as described for the driver's seat without height adjustment, making the following changes.

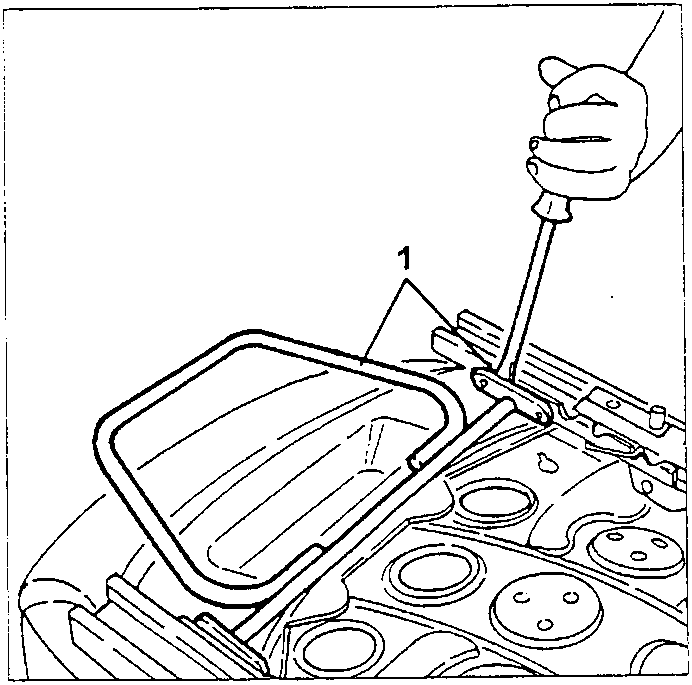

1. Fully retract the runners, then remove the seat sliding lever, releasing it from the side fastenings.

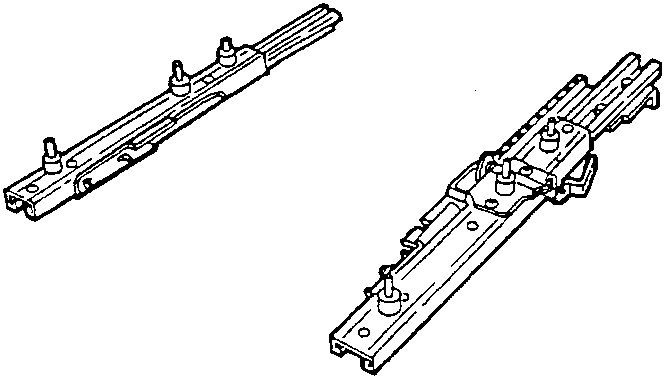

• The seat guides in question do not have a seat height adjustment device, but another device which allows the side to slide forwards and then return to its original position.
• For the removing-refitting, follow the instructions for the driver's seat.
