BodyworkCentre console

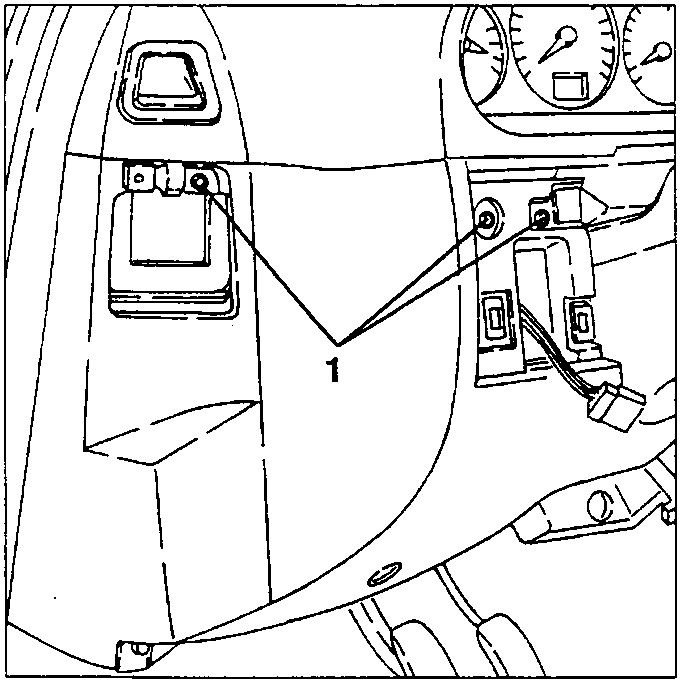

  1. Slacken the three upper screws fastening the fuse-box cover trim.
Diagram showing upper screws on fuse-box cover trim

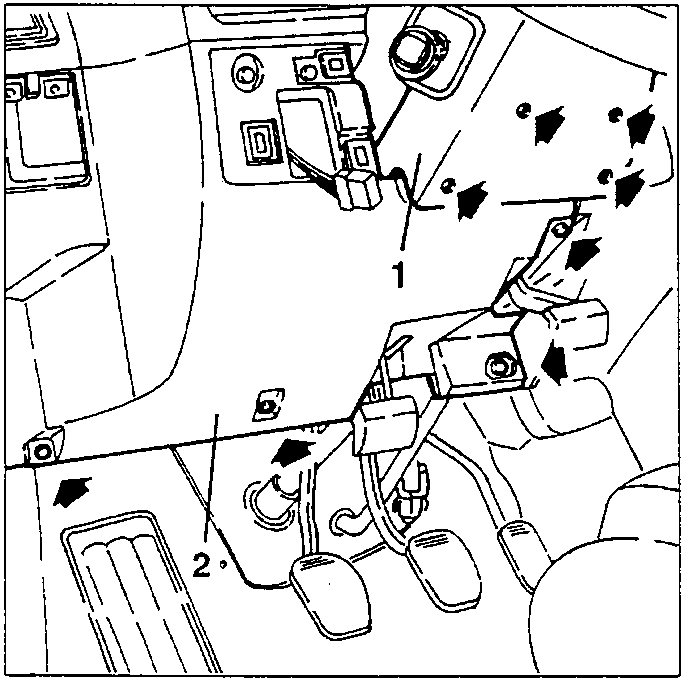

  1. Slacken the four fastening screws and remove the steering column lower half box.
    2. Slacken the four lower screws fastening the fuse-box cover trim and remove it.
Diagram showing screws on steering column and fuse-box cover trim

CENTRE CONSOLE

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.

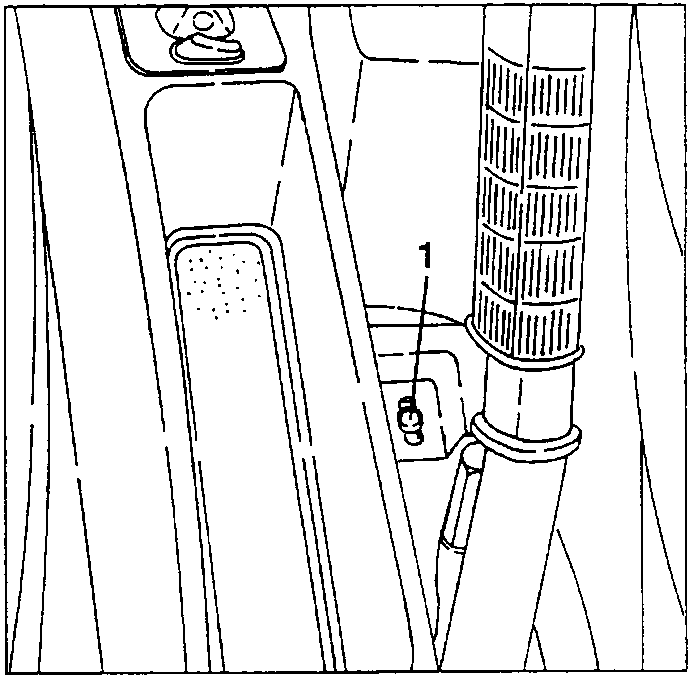

    1. Remove the protective cover from the handbrake lever, then slacken the screw below fastening the centre console.
Diagram showing screw under handbrake lever

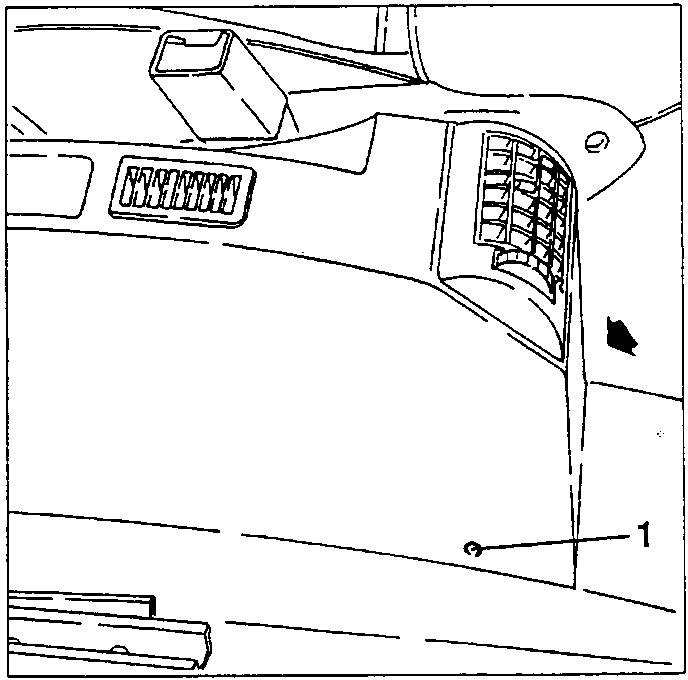

  1. Slacken the two rear screws fastening the centre console.
Diagram showing rear screws on centre console
