BodyworkDismantling/reassembling seat lifting device

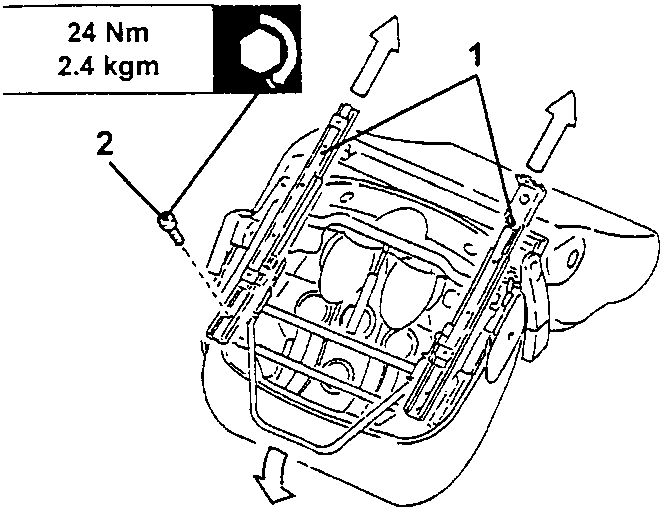

Retract the guides using the runner.

  1. Tighten the front bolt fixing the outer guide to the recommended torque.
Diagram showing retraction of guides with arrows and torque specification

24 Nm
2.4 kgm

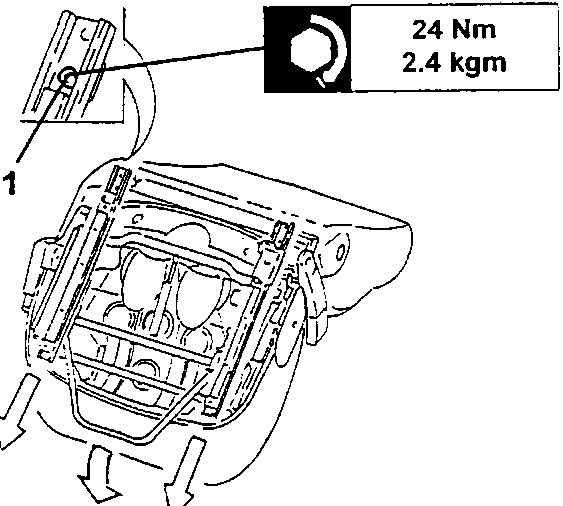

  • Move the guides forwards using the runner.
  1. Tighten the rear bolt fixing the outer guide to the recommended torque.
Diagram showing forward movement of guides with arrows and torque specification

24 Nm
2.4 kgm

  • Fit the front seat (refer to the specific procedure).

DISMANTLING/REASSEMBLING SEAT LIFTING DEVICE

  • Remove the seat guides after having place the seat in the highest position (see "Dismantling/Reassembling driver's seat guides").

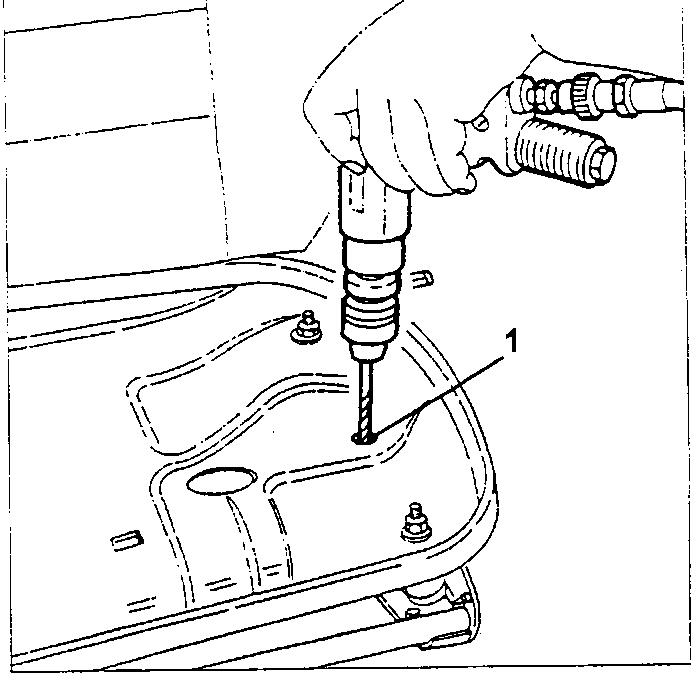

Diagram showing drill removing rivets from seat lifting device
  1. Using a drill, remove the two rivets fixing the seat lifting device.

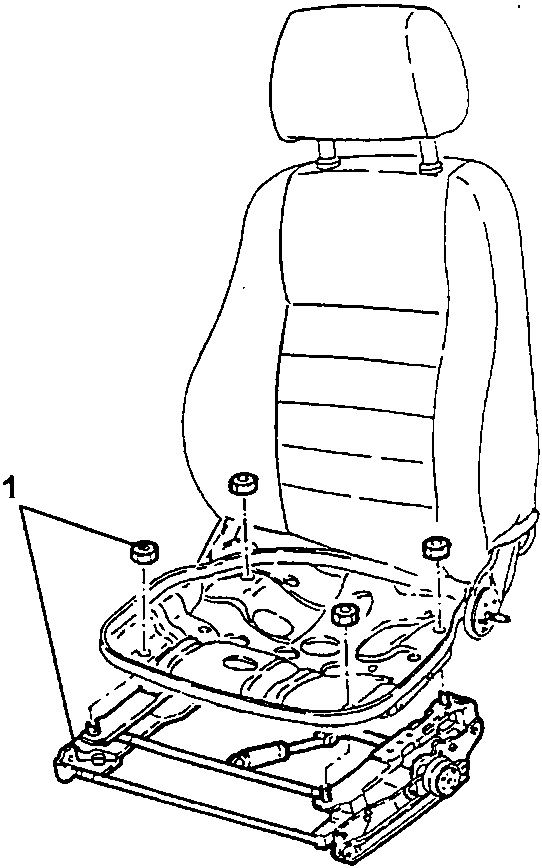

Diagram showing seat lifting device with four nuts and lever
  1. Undo the four fixing nuts and remove the seat lifting device.
  • Recover the seat lifting lever.
