Workshop Manuals Factory service & repair Alfa Romeo
Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Glove compartment

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Internal trim › Glove compartment
BodyworkGlove compartment

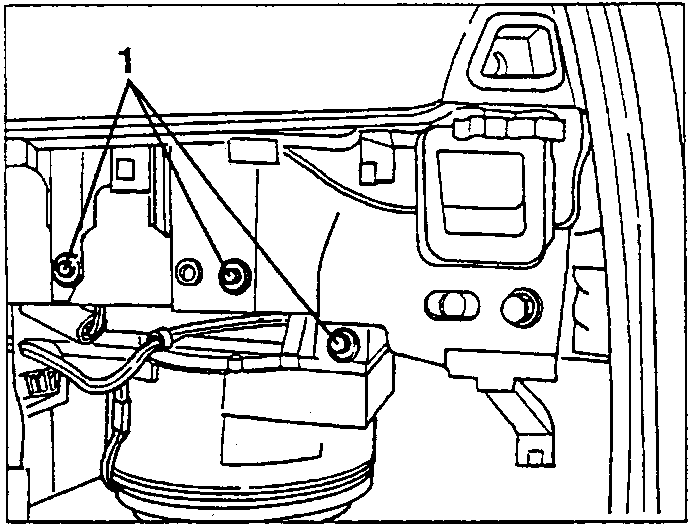

  1. Loosen the screws on the passenger side securing the dashboard.
Diagram showing screws on passenger side securing dashboard

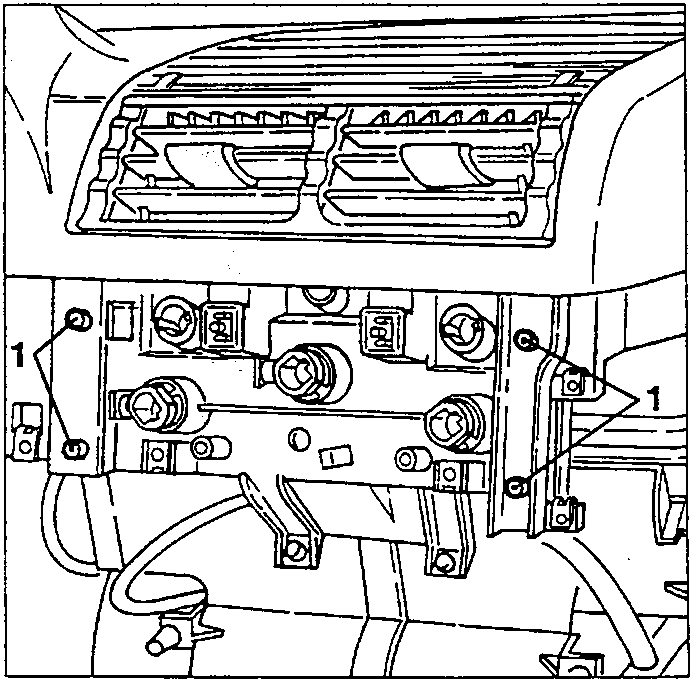

  1. Loosen the four central screws securing the heating-ventilation controls.
Diagram showing four central screws securing heating-ventilation controls

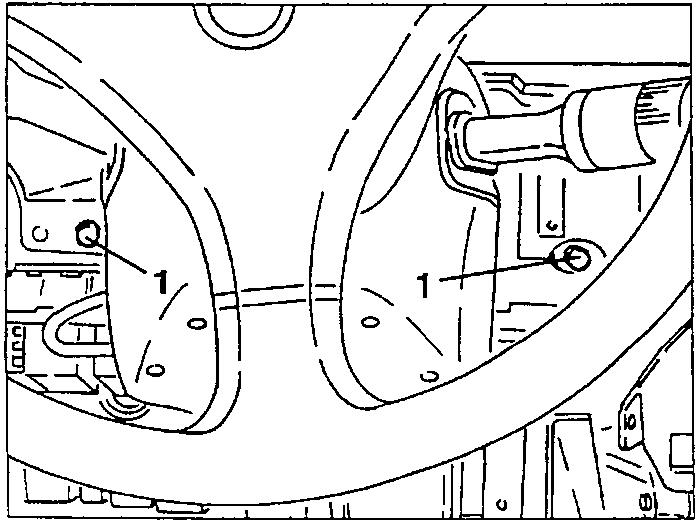

  1. Loosen the two screws on the driver's side securing the dashboard.
Diagram showing two screws on driver's side securing dashboard

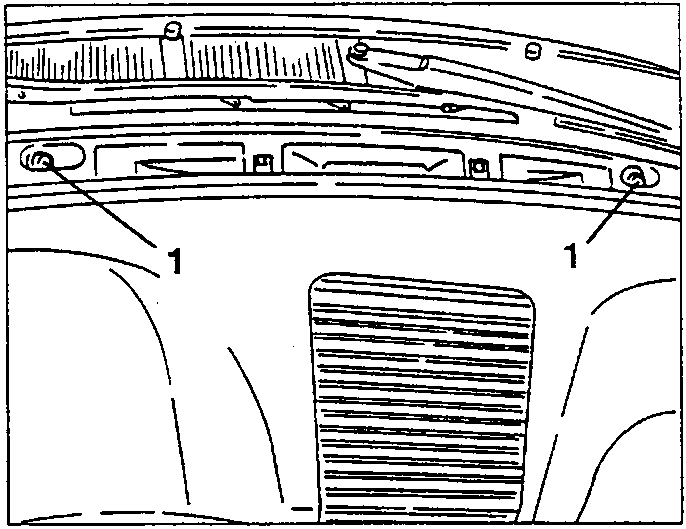

  1. Loosen the two screws securing the dashboard shown in the diagram and remove the upper part of the dashboard.
Diagram showing two screws securing upper part of dashboard

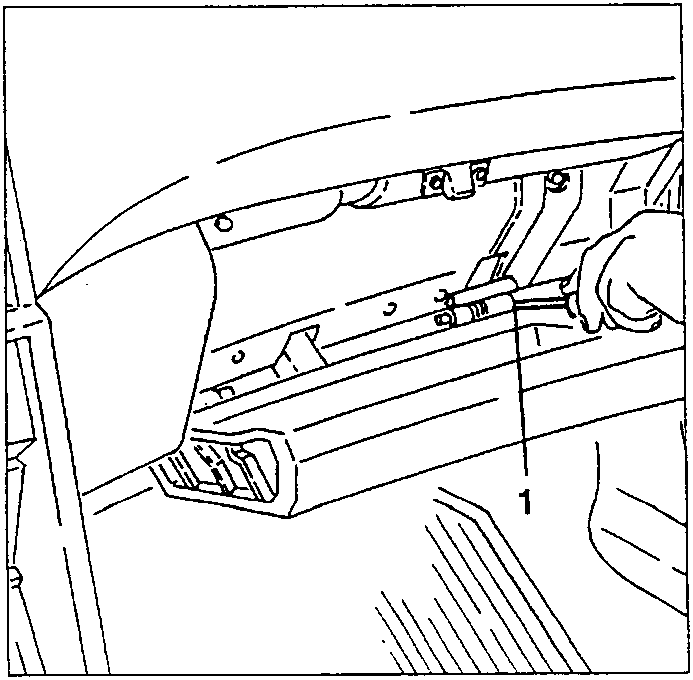

  1. Open the glove compartment and holding the spring flap downwards use a screwdriver as a lever to free it from the attachments.
Diagram showing opening glove compartment with screwdriver as lever

GLOVE COMPARTMENT

REMOVAL/REFITTING

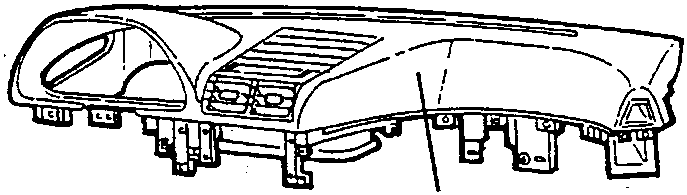

Diagram showing glove compartment with attachment points
