Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Dashboard (page 3 of 3)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Internal trim
BodyworkDashboard · page 3 of 3

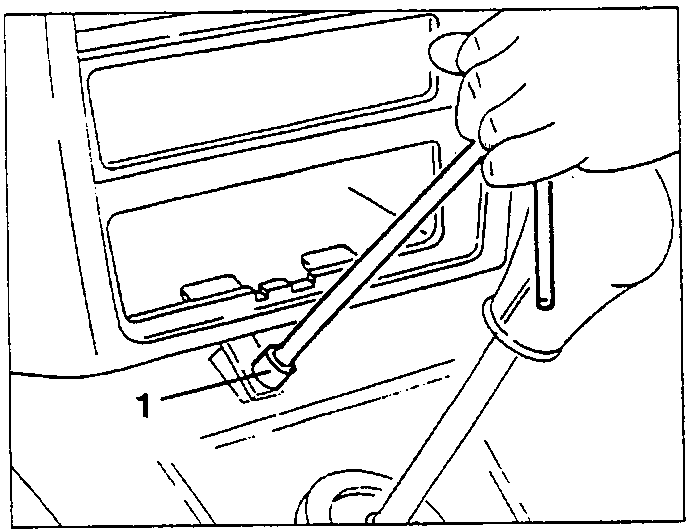

  1. Slacken the lower screw fastening the centre console.
Hand using a tool to slacken a screw on the lower part of the centre console.

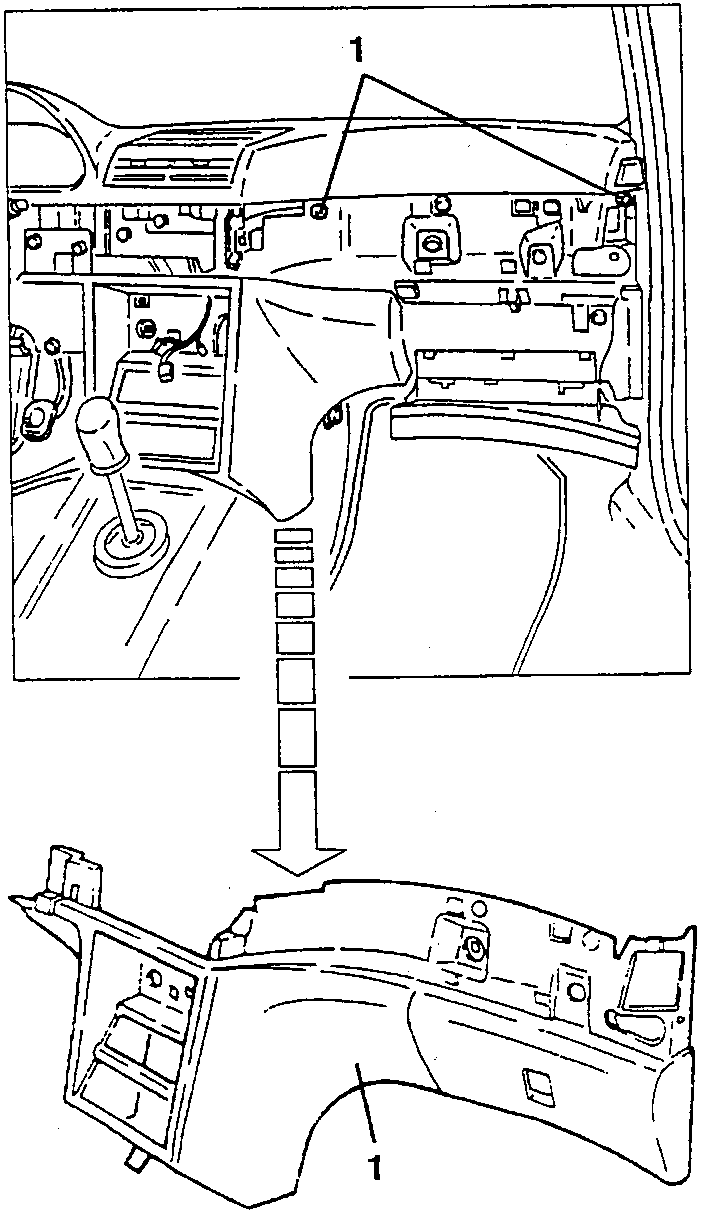

  1. Slacken the screws fastening the lower part of the dashboard and remove it.
Diagram showing the removal of the lower dashboard section, with an arrow indicating downward movement.

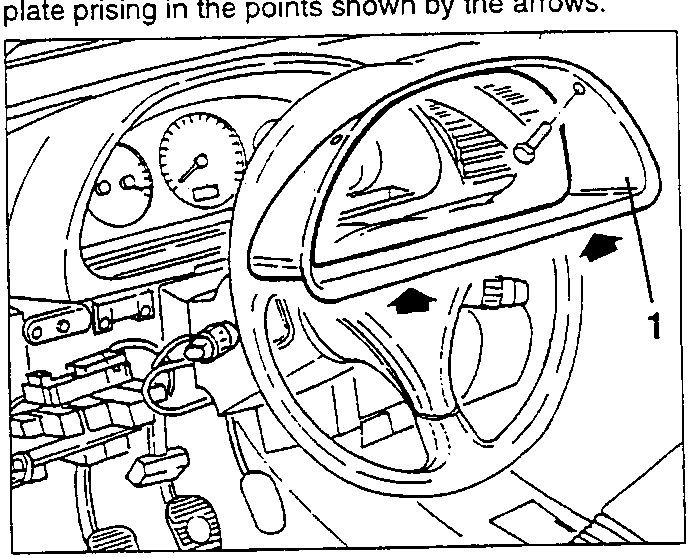

  1. Slacken the two fastening screws and remove the plate prising in the points shown by the arrows.
Diagram showing the steering wheel and instrument cluster area with arrows indicating where to prise out a plate.

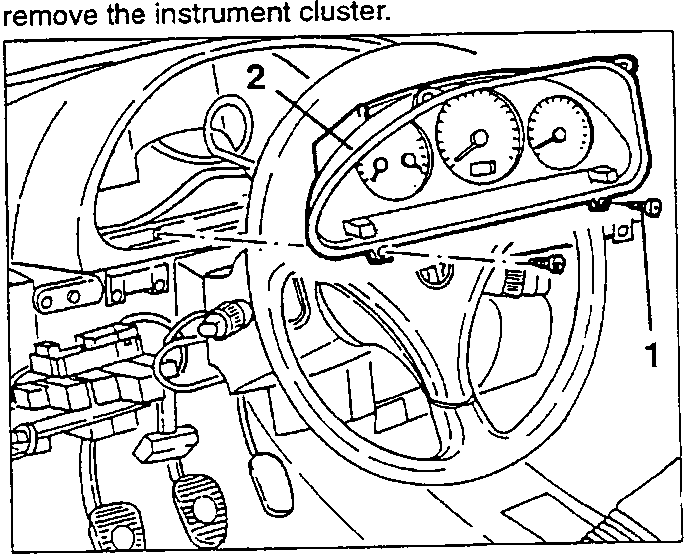

  1. Slacken the four screws fastening the instrument cluster.
  2. Disconnect the two side electrical connections and remove the instrument cluster.
Diagram showing the instrument cluster with arrows indicating where to disconnect electrical connections.

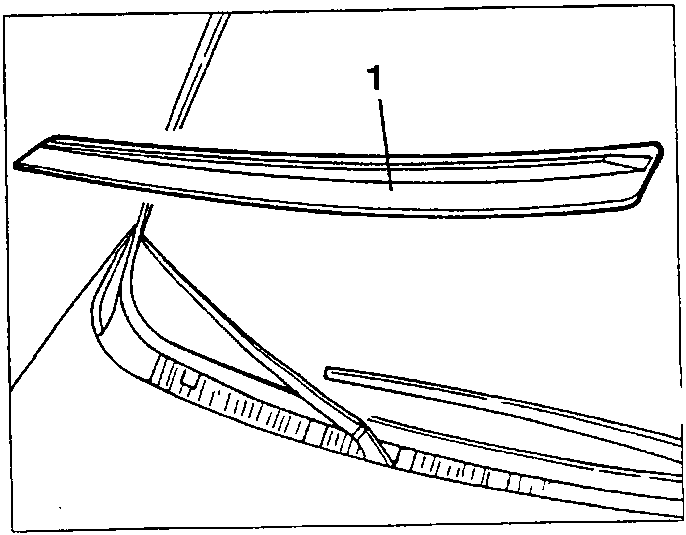

  1. Prise and remove the windscreen air grille.
Diagram showing the windscreen air grille being prised out from the top edge.
