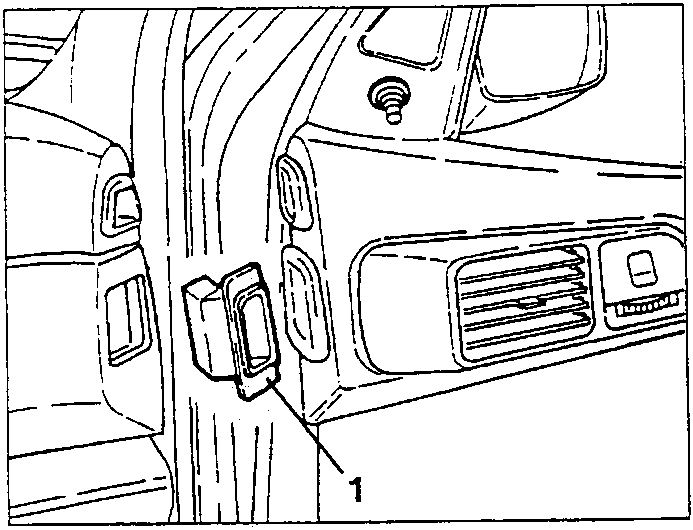

1. Remove the passenger air vent from the dash-board.

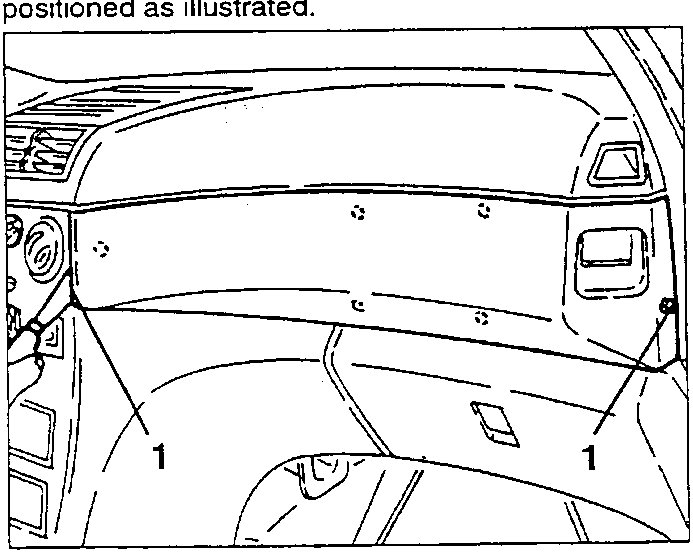

1. Slacken the fastening screw then remove the right hand dashboard trim prising it off the plastic rivets positioned as illustrated.

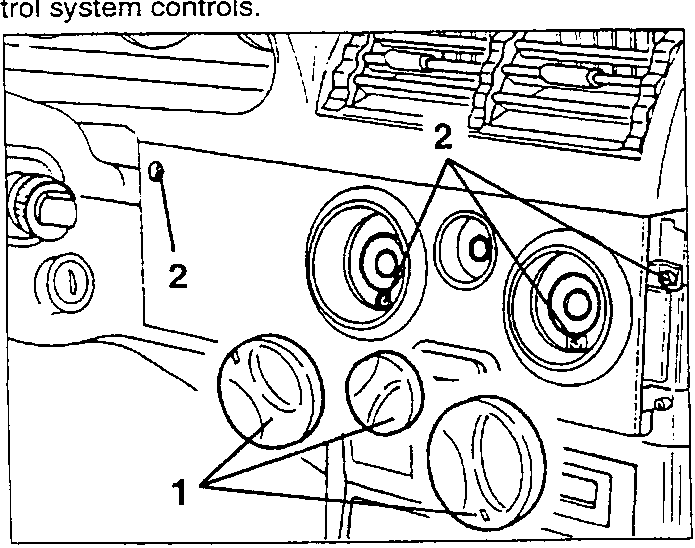

1. Prise and remove the climate control knobs.
   2. Slacken the four screws fastening the climate control system controls.

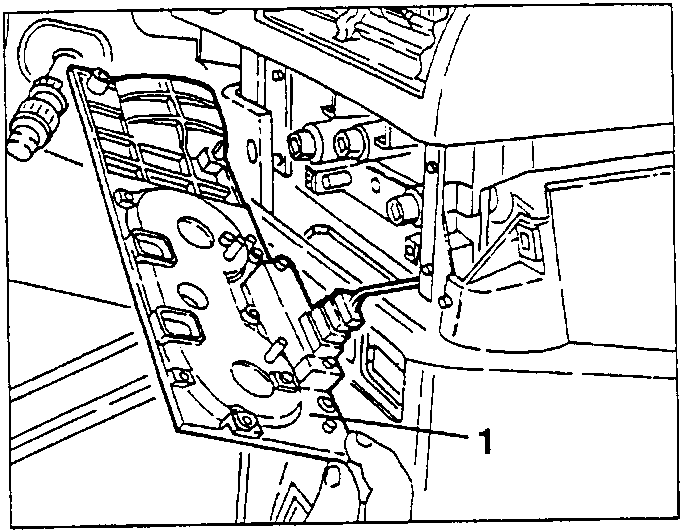

1. Prise the climate control system controls trim from the plastic rivet, then remove it after disconnecting the electrical connection for recirculation control.

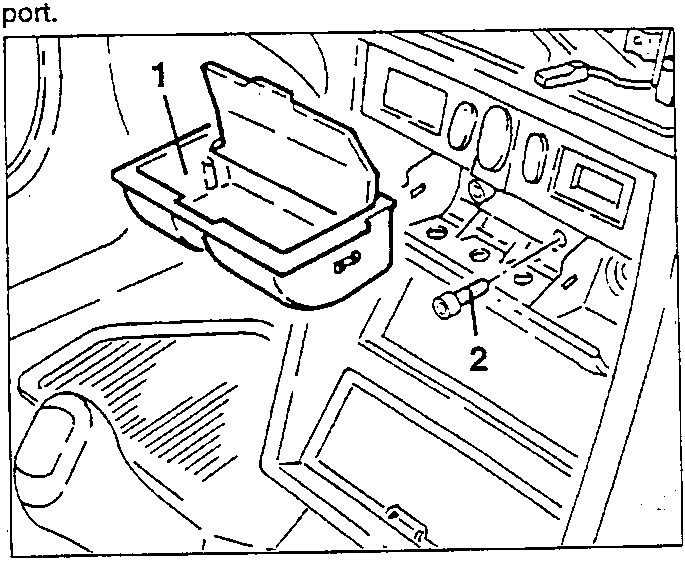

1. Remove the ashtray.
   2. Slacken the two screws fastening the ashtray support.

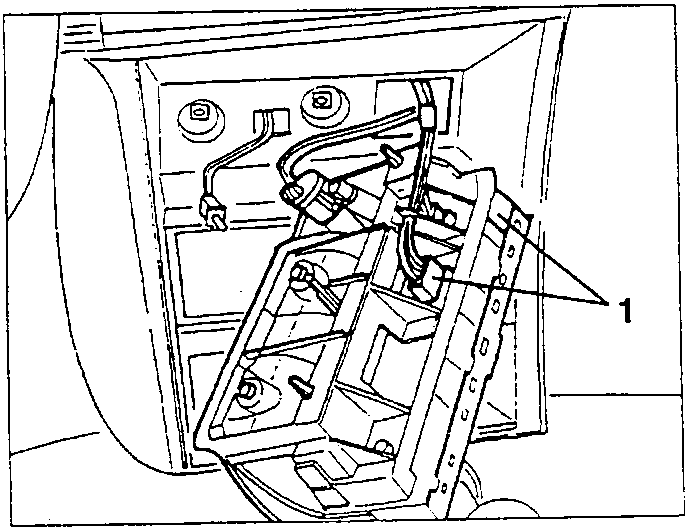

1. Remove the ashtray support complete with the services control unit and remove it after disconnecting the electrical connections.
