Glued roof panel (for versions without sunroof)

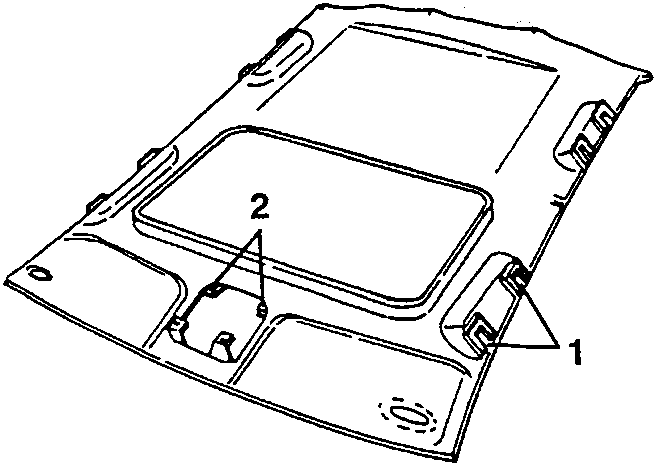

When refitting check that the gaskets (1) and the clip (2)s for the front screws, indicated in the diagram, are present on the roof panel.

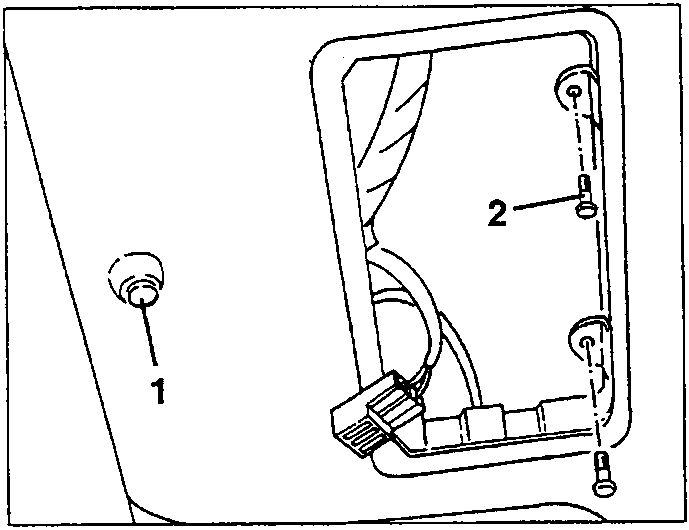

1. Remove the plastic nail securing the front part of the roof panel.
   2. Loosen the two screws securing the front of the roof panel.

GLUED ROOF PANEL (FOR VERSIONS WITHOUT SUNROOF)

REMOVAL/REFITTING

• Disconnect the negative cable from the battery.
• Remove the front and rear seats (see specific paragraphs).
• Remove the rear window mouldings (see specific paragraph).
• Remove the front roof light (see GROUP 55).
• Remove the passenger grab handles and the caps on the driver’s side (see specific paragraphs).
• Remove the sun visors (see specific paragraph).
• Remove the trim from the front pillars (see specific paragraph).

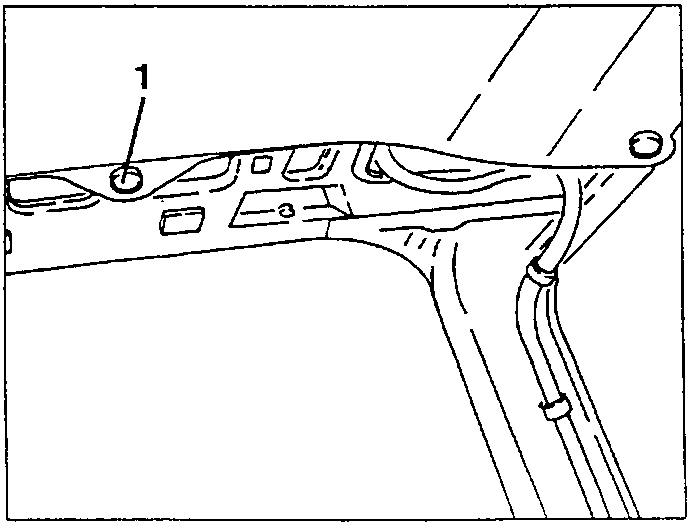

1. Remove the four plastic nails securing the rear part of the roof panel.

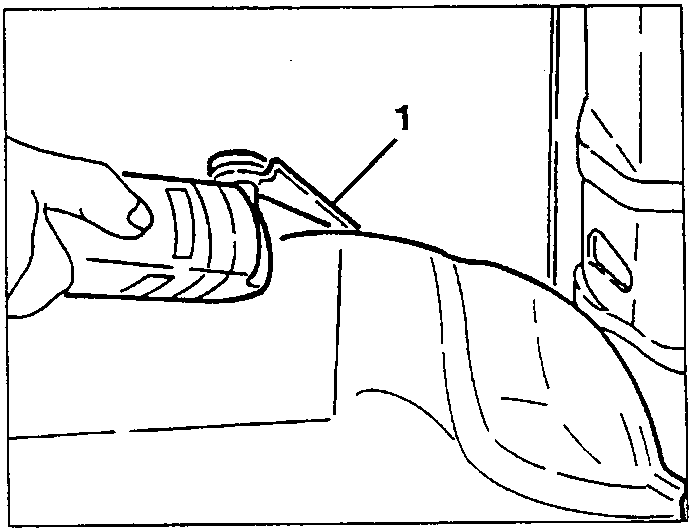

1. Lower the rear part of the roof panel just enough to permit the glue to be cut as shown in the diagram.

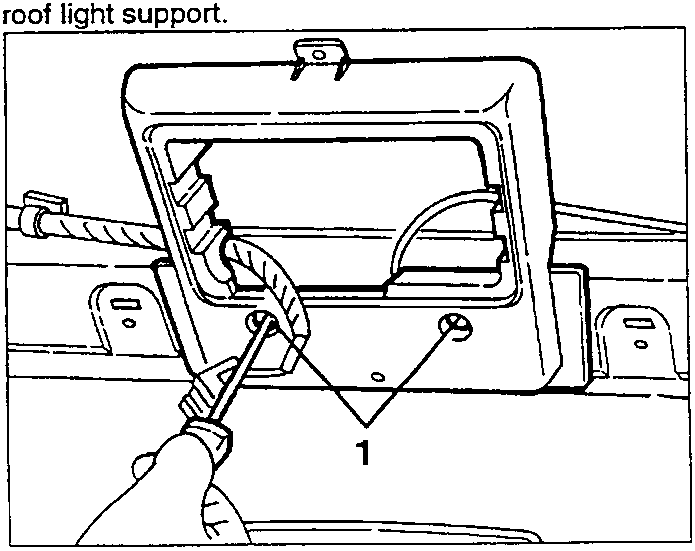

1. If necessary loosen the two screws and remove the roof light support.
