Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Rear-view mirror

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Internal trim › Rear-view mirror
BodyworkRear-view mirror

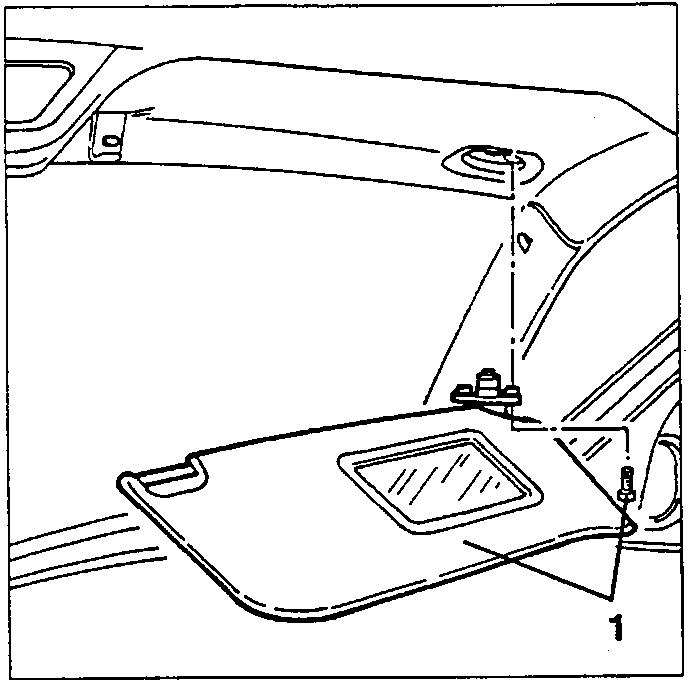

  1. Loosen the two screws and remove the sun visor.
Sun visor removal diagram showing screws and visor support

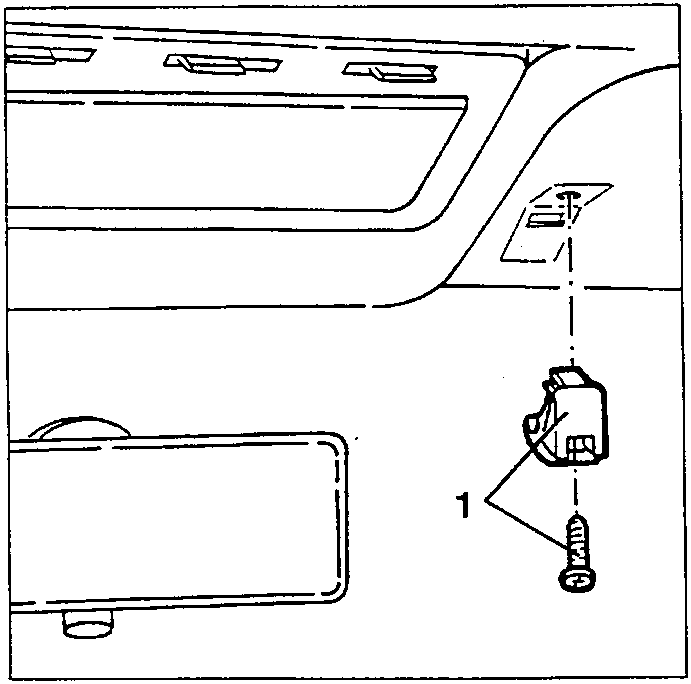

  1. Pull off the cover, loosen the screw and remove the sun visor support.
Sun visor support removal diagram showing cover and screw

REAR-VIEW MIRROR

REMOVAL/REFITTING

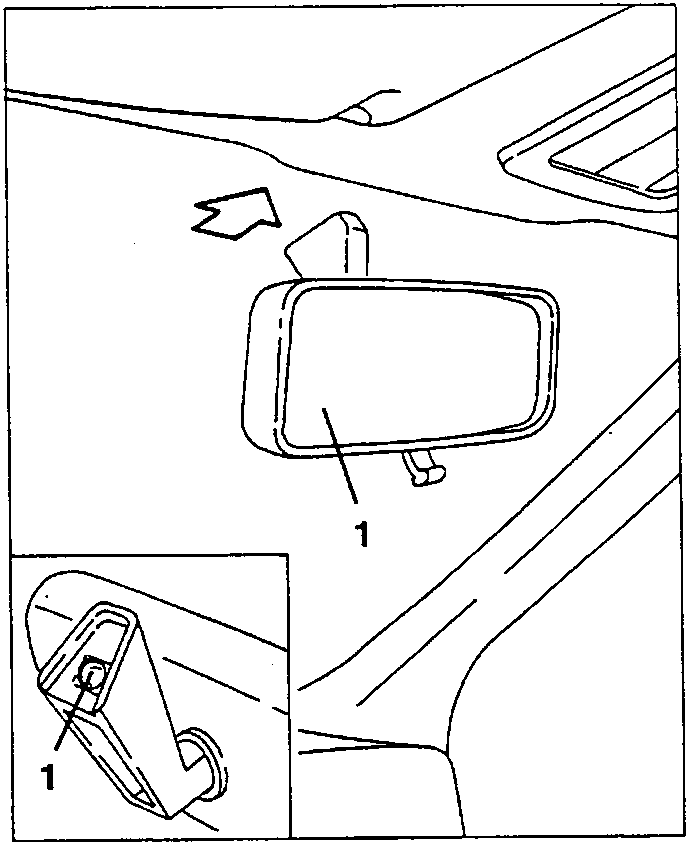

  1. Remove the rear-view mirror by pushing it upwards overcoming the force exerted by the locking ball.
Rear-view mirror removal diagram showing mirror and locking ball

PASSENGER GRAB HANDLES

REMOVAL/REFITTING

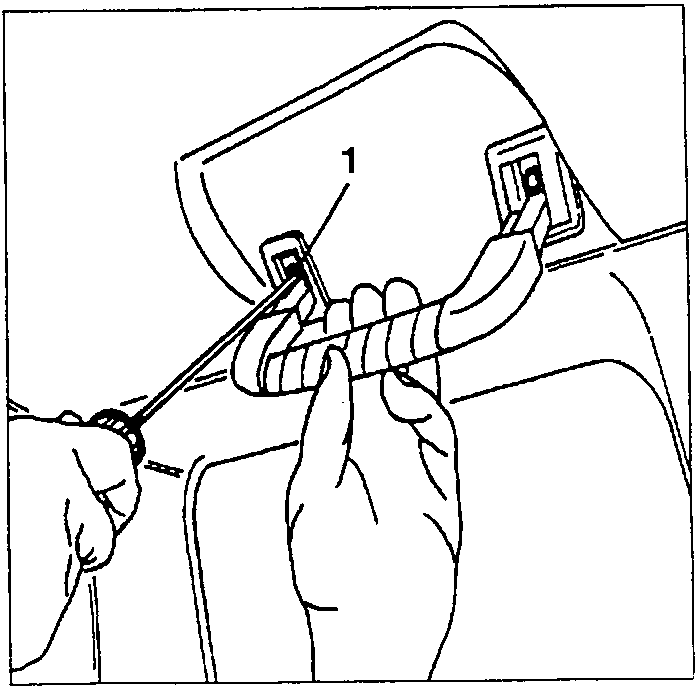

  1. Lower the passenger grab handle, loosen the two screws and remove it.
Passenger grab handle removal diagram showing hand lowering handle and loosening screws
