Workshop Manuals Factory service & repair Alfa Romeo
Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Roof panel side seals (page 2 of 2)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Internal trim
BodyworkRoof panel side seals · page 2 of 2

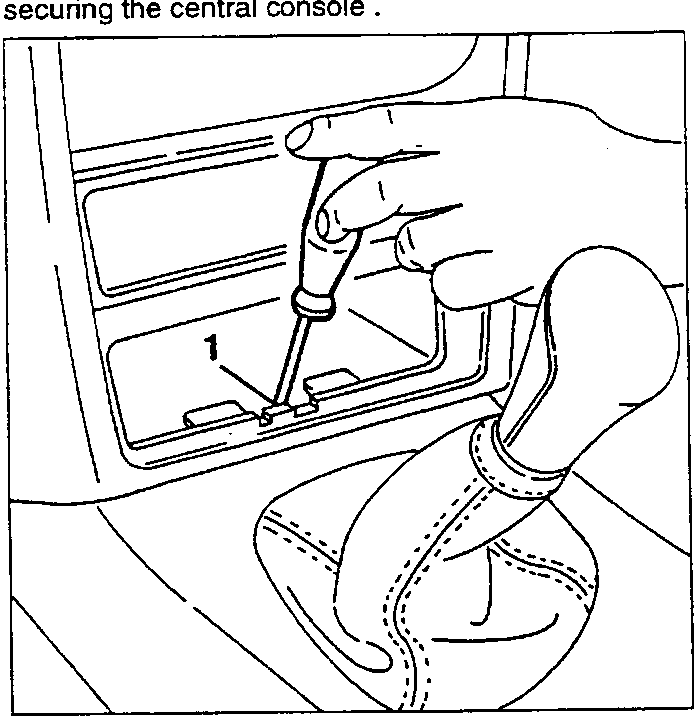

  1. Remove the object tray and loosen the front screw securing the central console .
Hand using screwdriver to loosen screw near gear shift lever

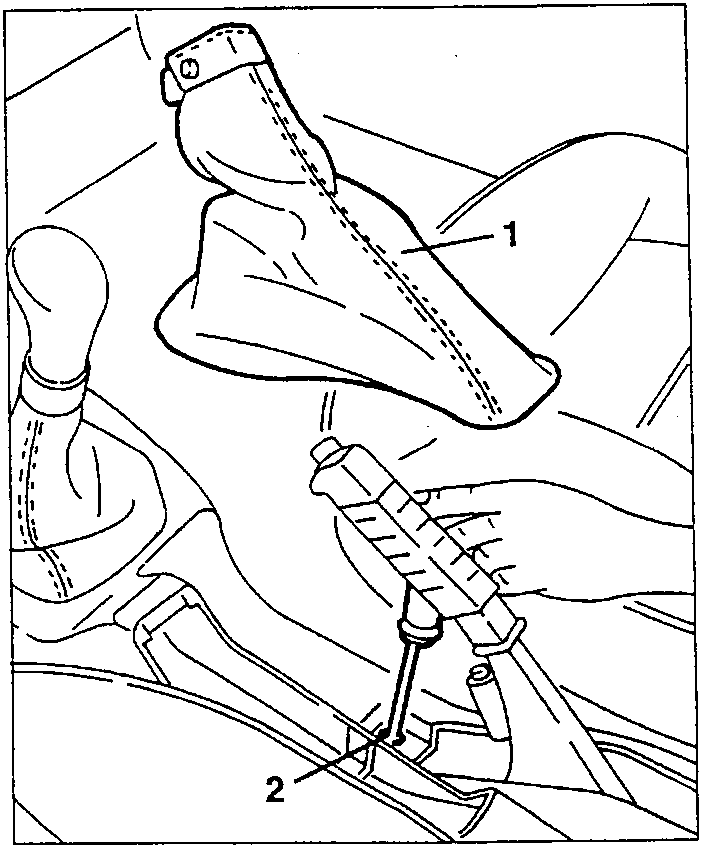

  1. Pull off and remove the covering from the hand brake .
  2. Loosen the central screw securing the central console .
Screwdriver loosening a screw under the handbrake lever

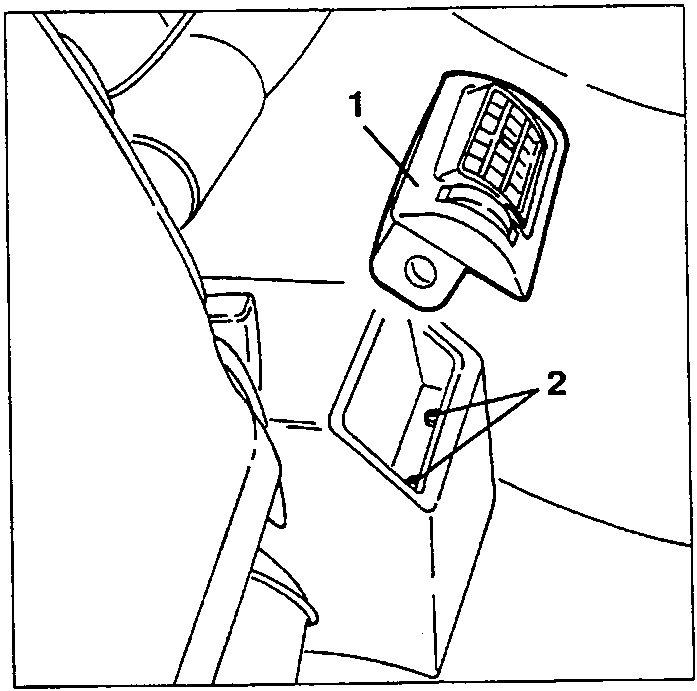

  1. Pull and remove the rear air distribution vent from the console .
  2. Loosen the two rear screws securing the central console .
Hand pulling out rear air vent and showing two screws

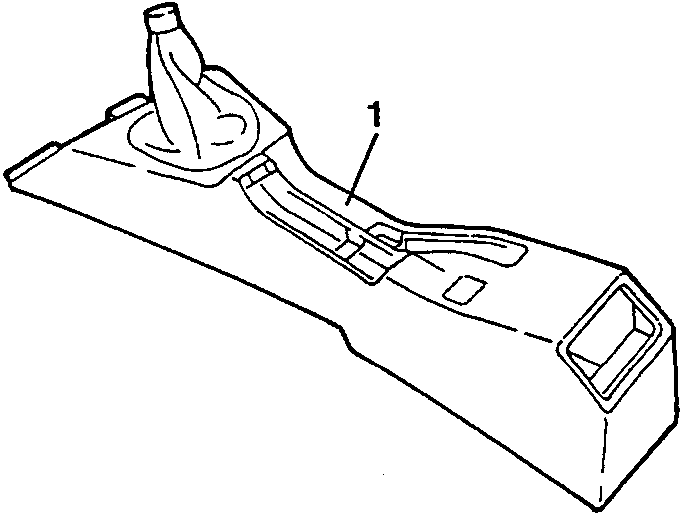

  1. Withdraw and remove the central console .
Central console being pulled out from the car interior
