Rear control cables

• Lower the car.

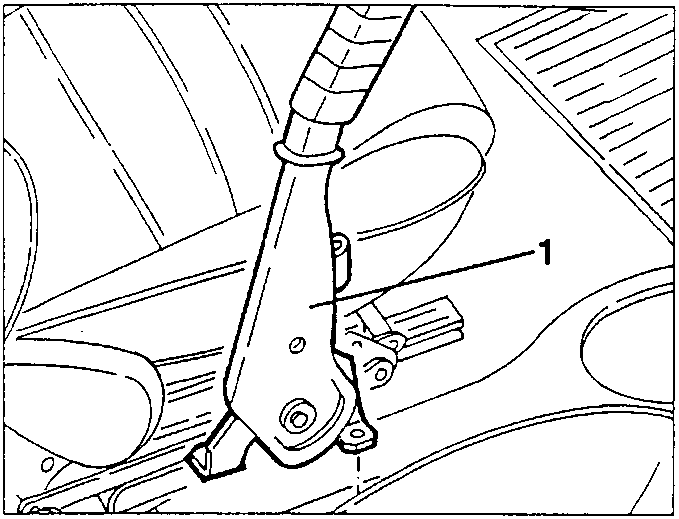

1. Remove the handbrake control lever.

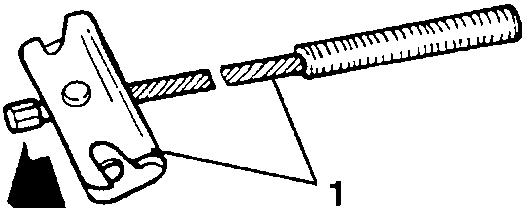

1. Raise the car and retrieve the handbrake front cable withdrawing it from the grommet.

When refitting, make sure that the cable grommet is correctly positioned.

REAR CONTROL CABLES

REMOVAL/REFITTING

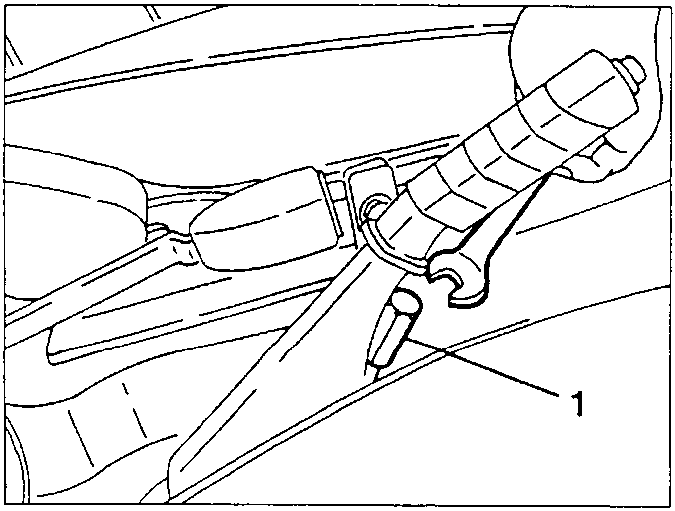

1. Remove the boot and slacken the tension of the handbrake cables using the special adjustment nut.

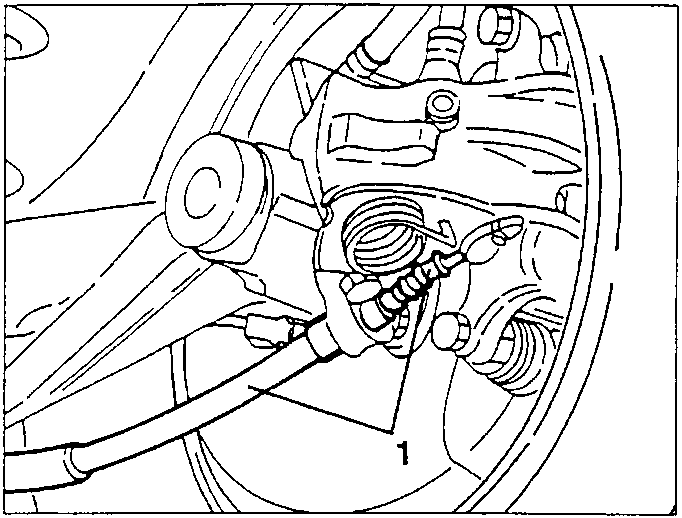

1. Disconnect the handbrake rear cables from the brake calipers.

• Free the handbrake rear cables from the support clamps.

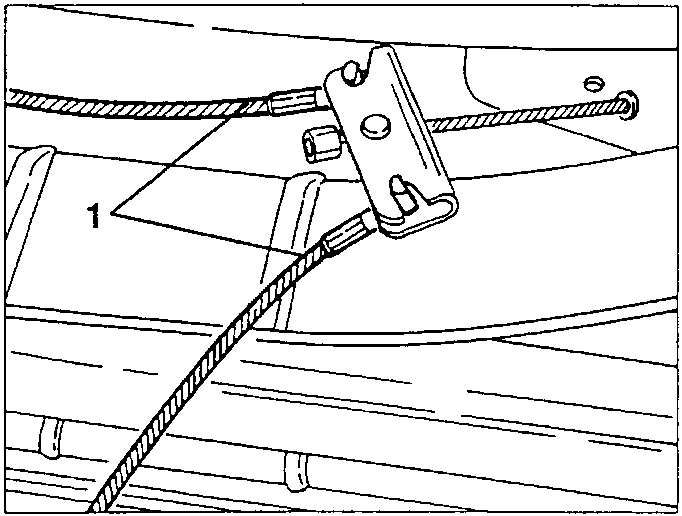

1. Disconnect the handbrake rear cables from the hooking brackets and remove them.

ADJUSTING THE CONTROL CABLES

The handbrake should be adjusted only after changing the brake pads, or the control cables, or the brake caliper, as wear takeup is automatic.

• Disconnect the handbrake cables from the brake calipers and pump the brake pedal forcefully at least ten times.
• Reconnect the handbrake cables to the calipers.
• Move the handbrake lever to the third position on the toothed sector and tighten the adjustment nut until the rear wheels are braked.

With the lever in the rest position, check that the wheels turn freely.
