Alfa Romeo 145/146 Factory Service Manual (1994-1999)04 · Clutch
04 · Transmission

Clutch pedal

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Clutch command (1929 TD) › Clutch pedal
ClutchClutch pedal

CLUTCH PEDAL

REMOVAL/REFITTING

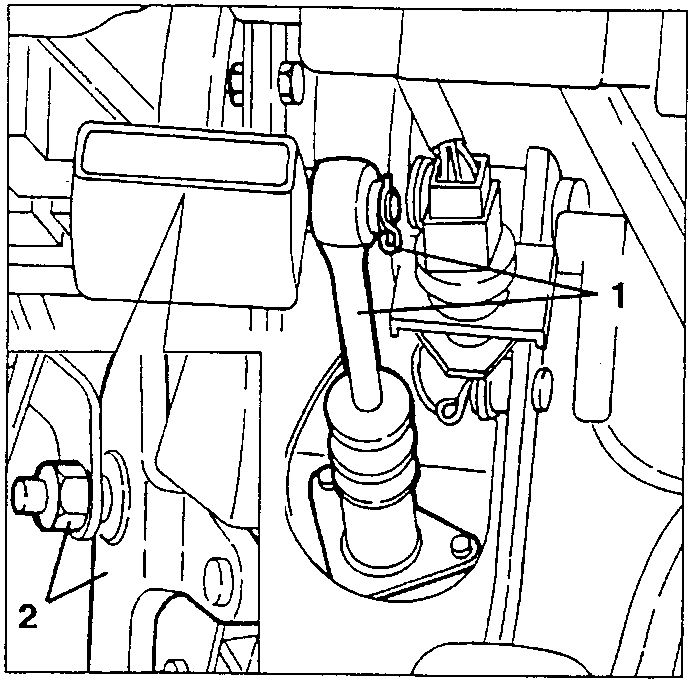

  1. Remove the safety catch and disconnect the clutch pump from the pedal.
  2. Slacken the fastening bolt and remove the clutch pedal.
Clutch pedal with numbered parts 1 and 2 shown in engine bay context

CLUTCH CONTROL CYLINDER

REMOVAL/REFITTING

  • Remove the battery (see GROUP 55).
  • Empty the brake-clutch fluid reservoir using a suitable syringe.

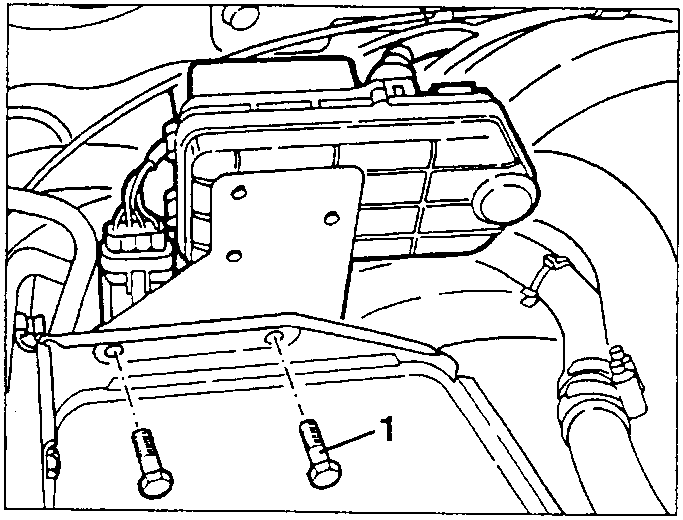

  1. Slacken the two fastening screws and move the fan relays to one side.
Battery area with numbered part 1 indicating screw location
  • Remove the battery acid drain duct.

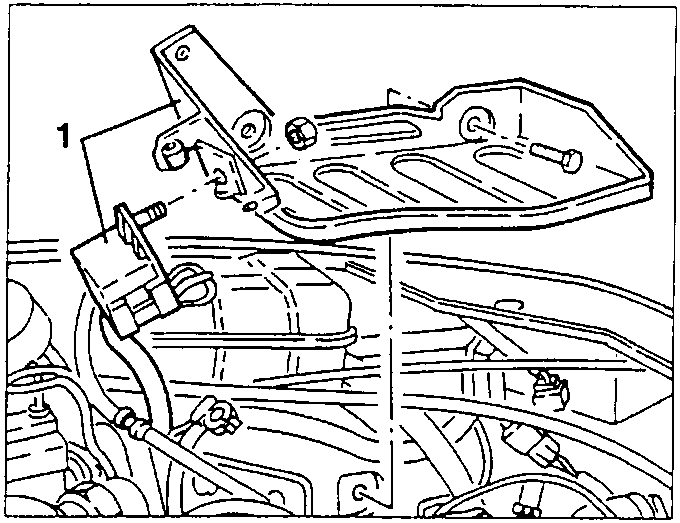

  1. Slacken the battery bracket fastening screws, then remove it after disconnecting the glow plug control unit cables from it.
Clutch pedal with numbered part 1 shown in engine bay context

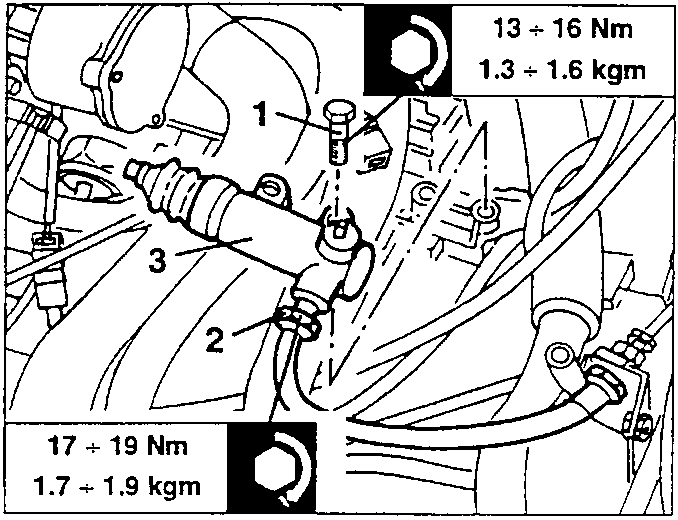

  1. Slacken the two screws fastening the clutch control cylinder.
  2. Disconnect the pump inlet hose fitting from the clutch control cylinder.
  3. Remove the clutch control cylinder.
Clutch control cylinder with numbered parts 1, 2 and 3 shown in engine bay context

13 ÷ 16 Nm
1.3 ÷ 1.6 kgm

17 ÷ 19 Nm
1.7 ÷ 1.9 kgm

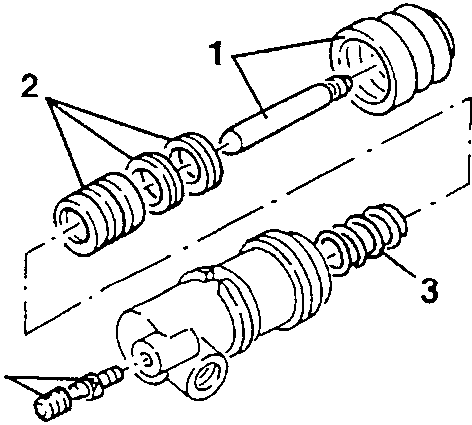

DIS-ASSEMBLY/RE-ASSEMBLY

  1. Prise off the rubber boot and remove it together with the control prod.
  2. Remove the piston from the cylinder body with its seals.
  3. Remove the spring.
  4. Only if necessary, remove the air relief screws.
Disassembled clutch control components 1, 2, 3 and 4 shown in exploded view
