CLUTCH PUMP

REMOVAL/REFITTING

  • Disconnect the battery (-) terminal. - Empty the brake-clutch fluid reservoir using a suitable syringe.
  1. Disconnect the reservoir connection hoses from the clutch pump.

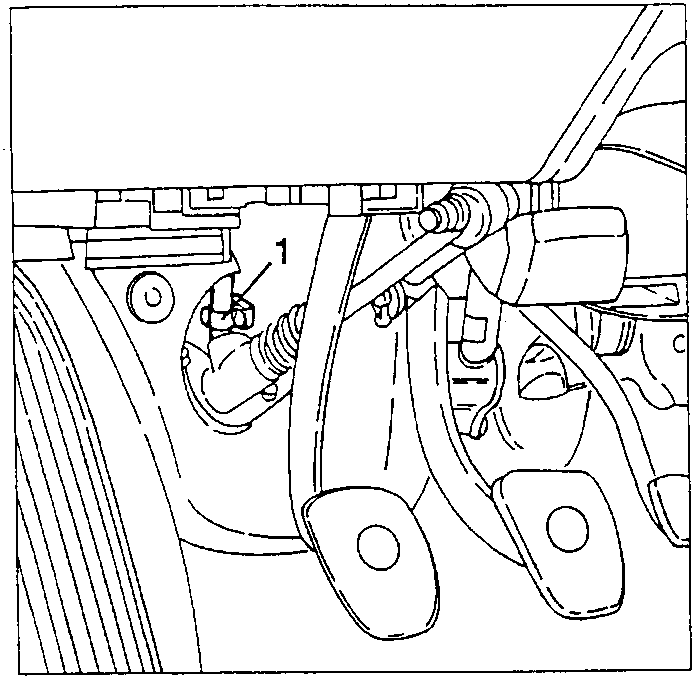

Clutch pump disconnection diagram showing safety catch and pedal connection
  1. Remove the safety catch and disconnect the clutch pump from the pedal. 2. Slacken the two nuts fastening the clutch pump.

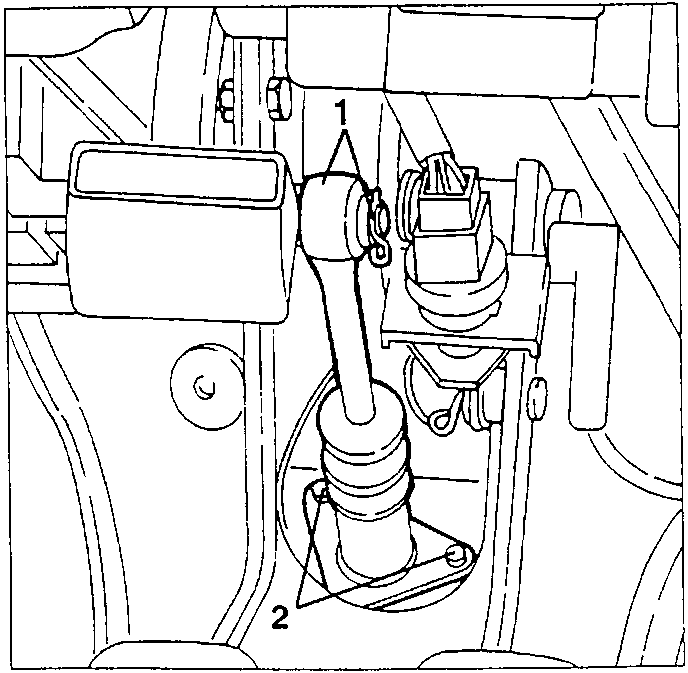

Clutch pump removal diagram showing backward movement to disconnect union pipes
  1. Move the clutch pump backwards just enough to disconnect the union of the cylinder connection pipes, then remove it.

DIS-ASSEMBLY/RE-ASSEMBLY

Clutch pump disassembly diagram showing protective boot and piston retainer ring removal
  1. Prise off the protective boot. 2. Remove the piston retainer ring.

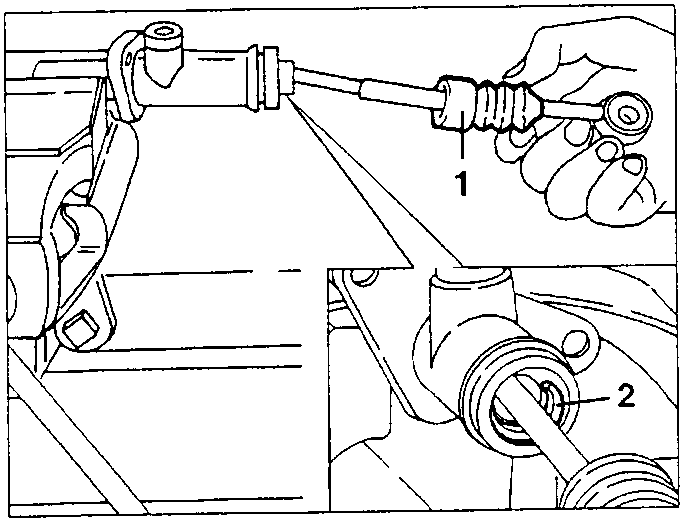

Clutch pump disassembly diagram showing piston and operating lever removal
  1. Remove the piston and the operating lever. 2. Remove the gasket.

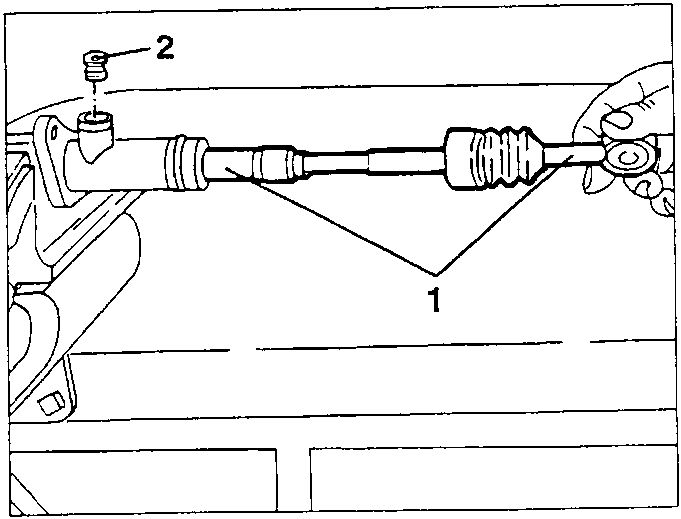

Clutch pump inspection diagram showing piston and cylinder inner surface check
  • Check the piston and the cylinder inner surface for marks, scores, scratches or rust and change the pump assembly if necessary.
