Air intake resounder

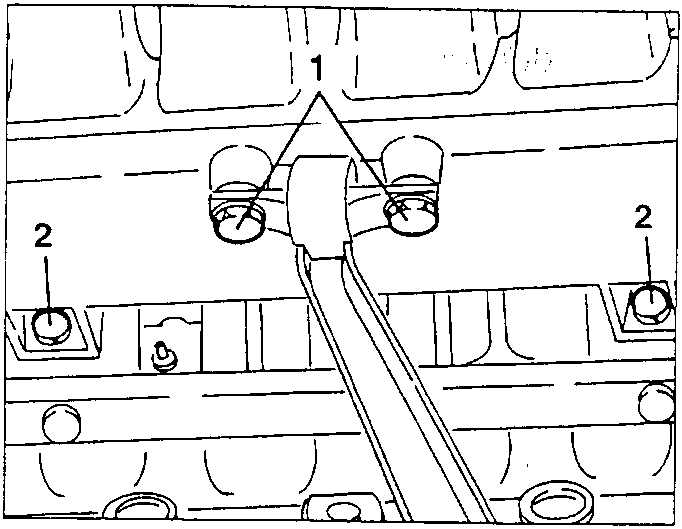

1. Slacken the two screws fastening the support to the intake box.
2. Slacken the two screws fastening the intake box to the cylinder head.

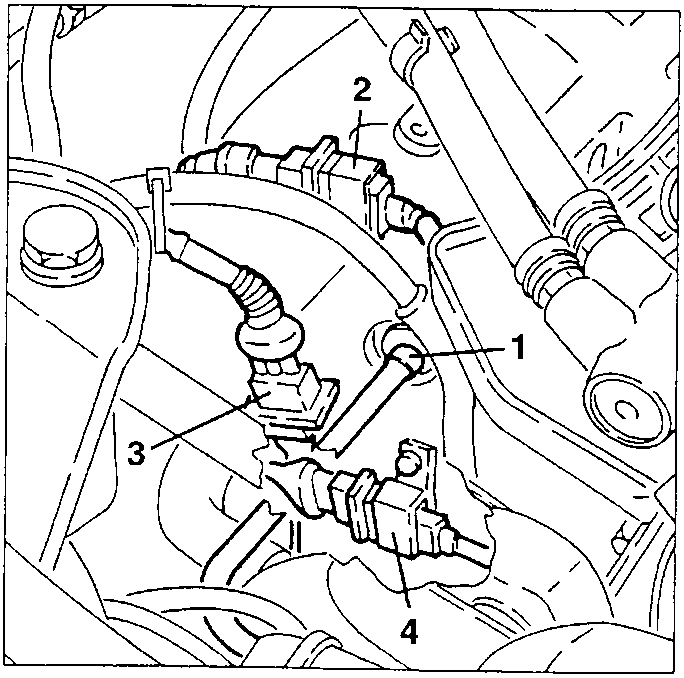

1. Lower the car and disconnect the fuel vapour recirculation pipe from the intake box.
2. Disconnect the electrical connection of the the timing sensor.
3. Disconnect the electrical connection of the pinging sensor.
4. Disconnect the electrical connection of the rpm and timing sensor.

AIR INTAKE RESOUNDER

REMOVING/REFITTING

• Set the car on a lift and raise it.
• Remove the front bumper.

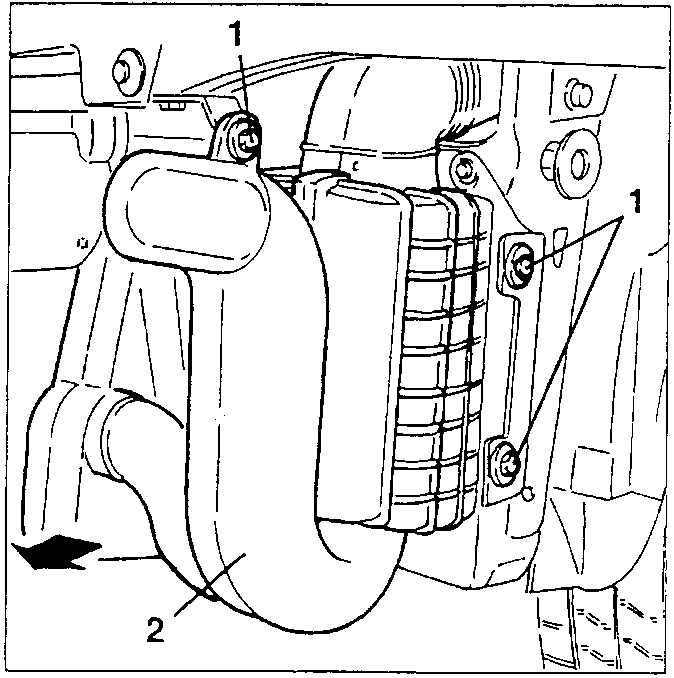

1. Slacken the three screws fastening the air intake resounder.
2. Remove the air intake resounder withdrawing it forwards.

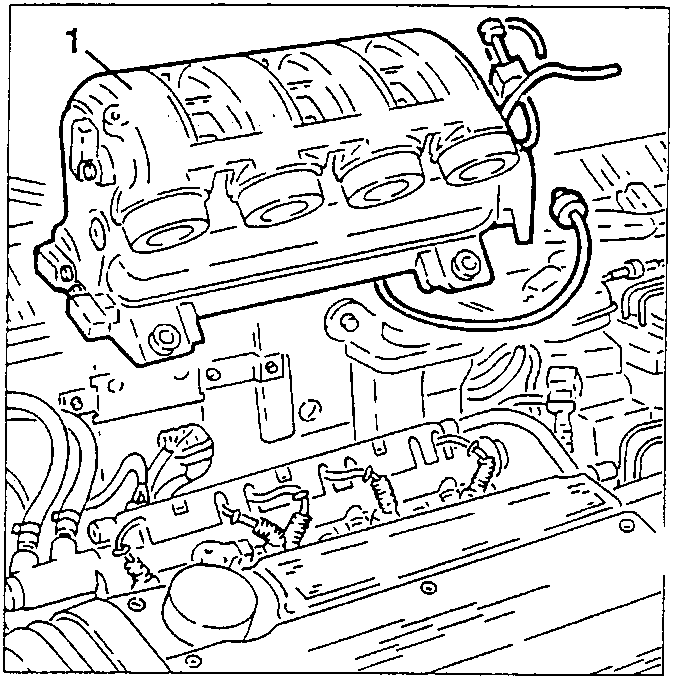

1. Slacken the fastening clamps and remove the intake box pulling it upwards.
