Throttle potentiometer

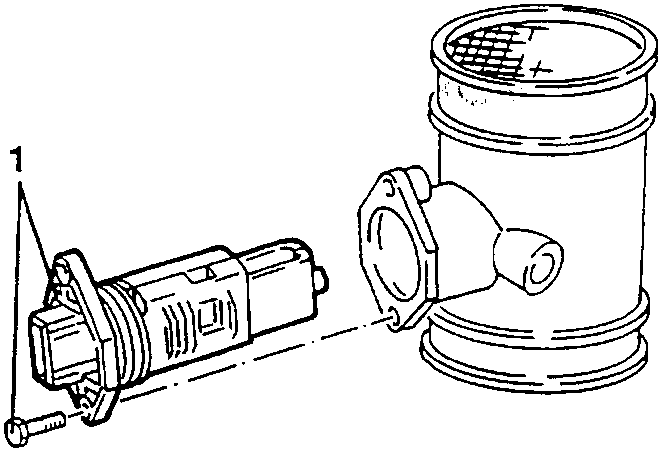

1. If necessary, slacken the two fastening screws and remove the air-flow meter from its support.

THROTTLE POTENTIOMETER

This is a potentiometer the mobile part of which is controlled directly by the throttle valve shaft. The potentiometer signals the control unit instantaneously when there is the need for "full power", anticipating the signal from the air-flow meter which records a considerable increase of the flow of air, thereby obtaining a more immediate response. The potentiometer automatically detects the throttle closed position through a "self-adapting" function. This eliminates the need for potentiometer adjustment operations and makes it possible to follow in time any wear occurring on the throttle closing position.

REMOVAL/REFITTING

• Disconnect the battery (-) terminal.

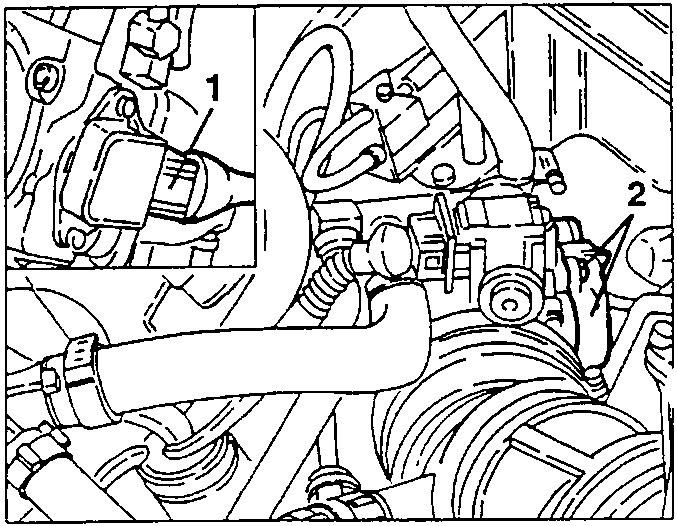

1. Disconnect the electrical connection from the throttle potentiometer.
2. Slacken the two fastening screws and remove the throttle potentiometer.

INTAKE AIR TEMPERATURE SENSOR (NTC)

The intake air temperature sensor is located on the air intake corrugated sleeve and measures the temperature of the air through an NTC thermistor with a negative resistance coefficient, i.e. capable of lowering its resistance as the temperature increases. The electric signal obtained reaches the electronic control unit where it is used to calculate the density of the air.

REMOVAL/REFITTING

• Disconnect the battery (-) terminal.

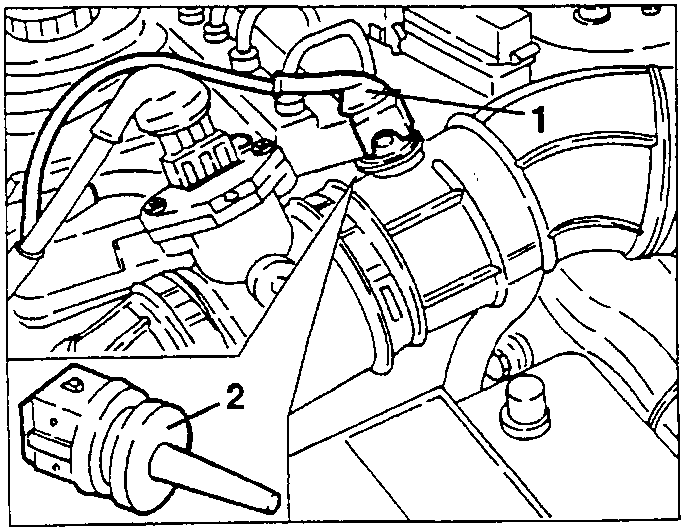

1. Disconnect the electrical connection from the intake air temperature sensor.
2. Withdraw and remove the intake air temperature sensor from the corrugated sleeve.

CONSTANT IDLE SPEED ACTUATOR

Idle speed rpm is controlled by an actuator fitted directly on the throttle body, but since it is more compact and can be operated individually, it is on the whole more cost-effective and reliable. The actuator adjusts the amount of air taken in by the engine when the throttle valve is closed. This makes it possible to compensate the power required by the various services (conditioner compressor, power steering, alternator) so that the engine speed remains unaffected.
