Inertial switch

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Electrical - electronic components (1970 T. SPARK 16V) › Inertial switch

EngineInertial switch

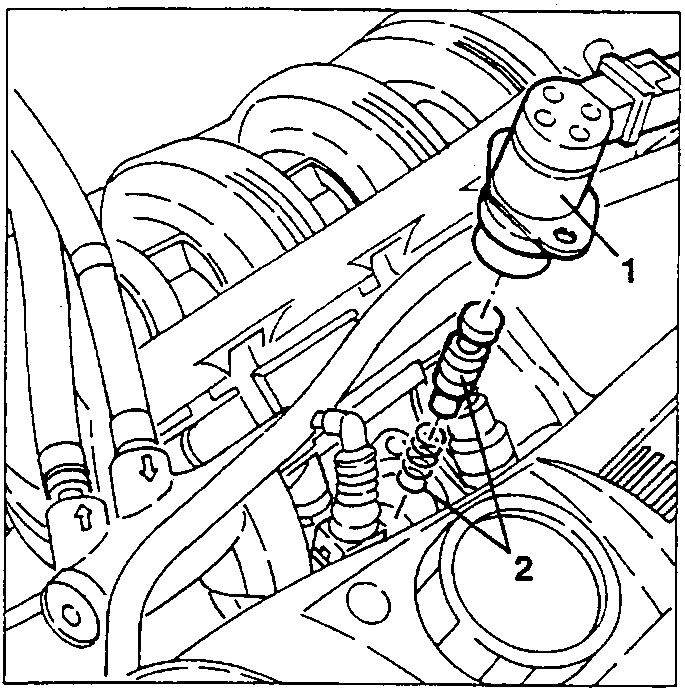

1. Slacken the two fastening screws and remove the timing variator solenoid.
2. Remove the valve complete with the timing variator spring.

INERTIAL SWITCH

See 1712 16V Boxer engine.

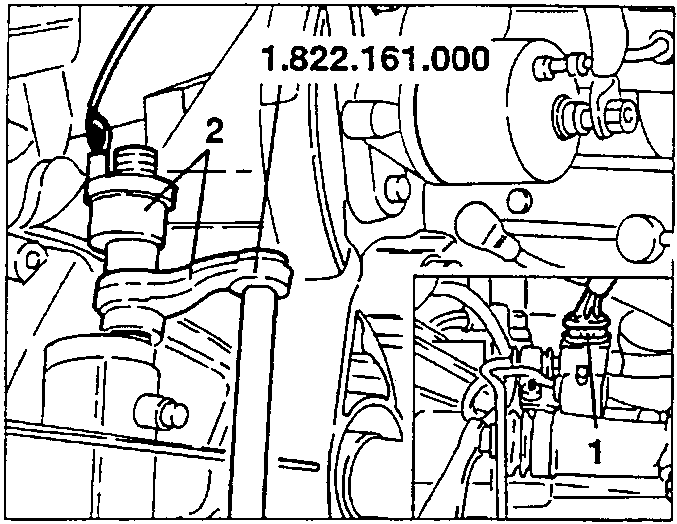

SPEEDOMETER SENSOR

REMOVAL/REFITTING

• Set the car on a lift.
• Disconnect the battery (-) terminal.

1. Disconnect the electrical connection of the speedometer sensor.
2. Raise the car and using wrench no. 1.822.161.000, slacken and remove the speedometer sensor.

03 Engine
