COOLING FAN

The two-speed cooling fan makes it possible to increase the heat dispersal capacity of the radiator. A thermal contact with double threshold where the first contact takes place at 92 °C and the second, through an additional resistance, at 97 °C activates the fan at two different speeds.

REMOVAL/REFITTING

  • Disconnect the battery (-) terminal.

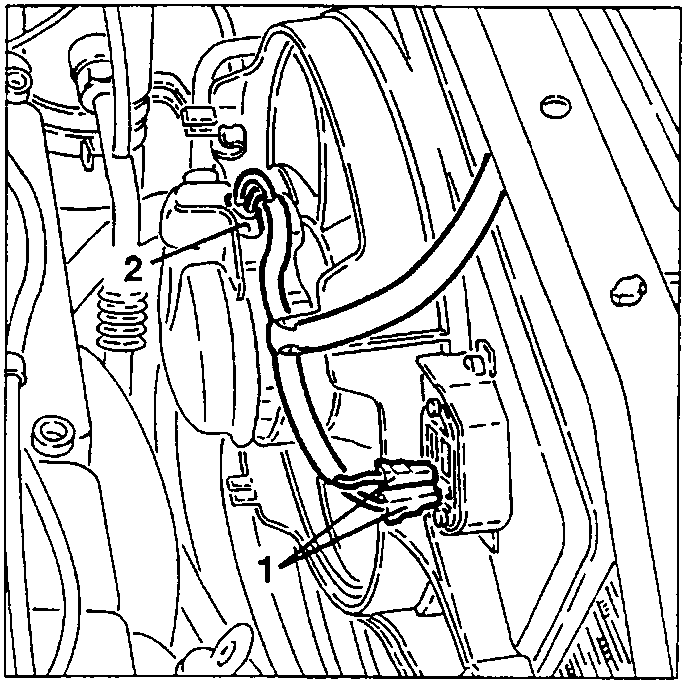

  1. Disconnect the electrical connections of the fan additional coil.
  2. Disconnect the cooling fan electrical supply connection.
Cooling fan electrical connections

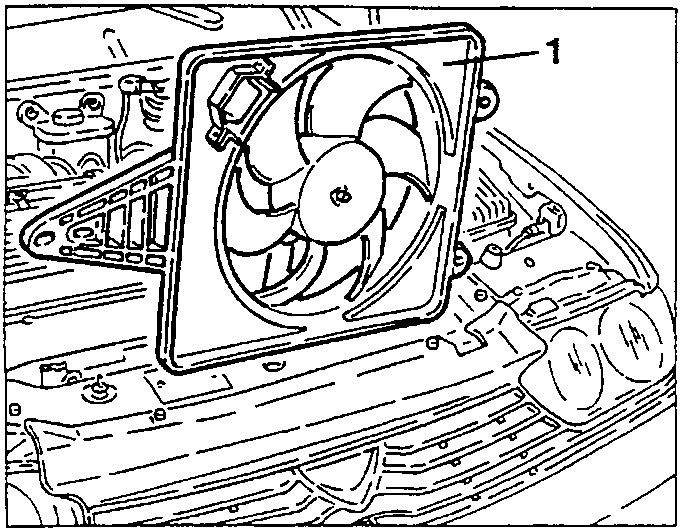

  1. Slacken the fastening screws and remove the cooling fan.
Cooling fan mounted on engine

DIS-ASSEMBLY

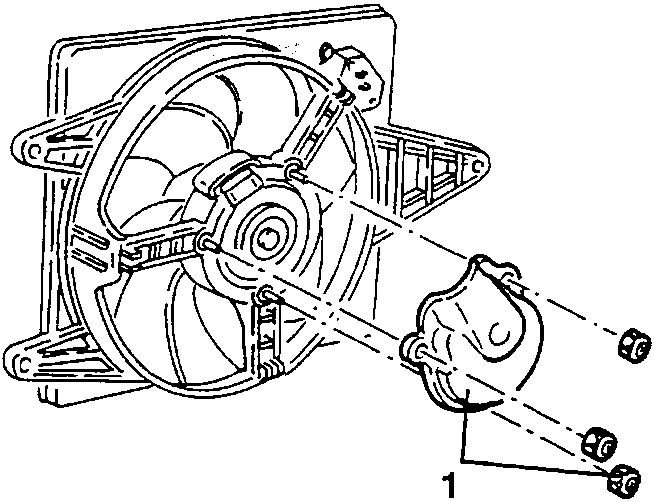

  1. Slacken the three fastening nuts and remove the heat shield.
Heat shield removal

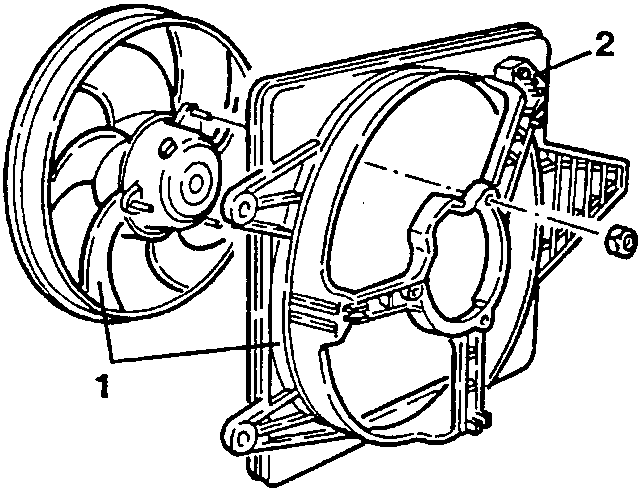

  1. Slacken the three fastening nuts, then separate the fan from the duct.
  2. Remove the additional resistance slackening the two fastening screws.
Fan and additional resistance
