WATER PUMP

The water pump is of the centrifugal type with blades. It is fastened to the cylinder head and operated by the crankshaft via the timing gear belt. An O-Ring ensures tightness between the cylinder head and the pump. The water pump is kept running constantly to ensure that the coolant fluid circulates continuously.

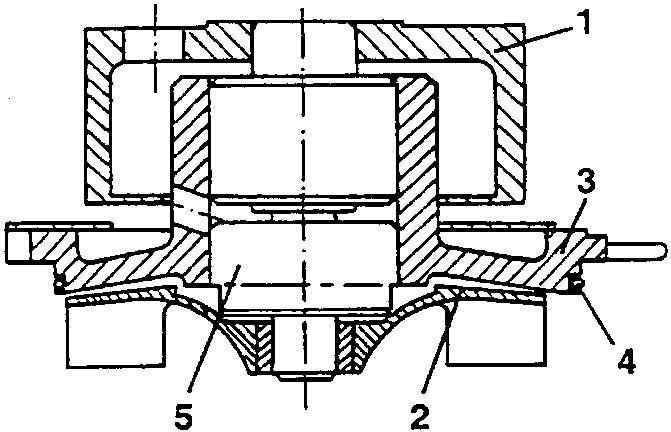

Cross-section of water pump showing pulley, impeller, pump casing, O-ring, and bearing
1. Pulley
2. Impeller
3. Pump casing
4. O-Ring
5. Bearing

REMOVAL/REFITTING

  • Set the car on a lift.
    - Disconnect the battery (-) terminal.
    - Drain the engine cooling system (see relative paragraph).
  1. Slacken the screws and move the header tank to one side without disconnecting the piping.

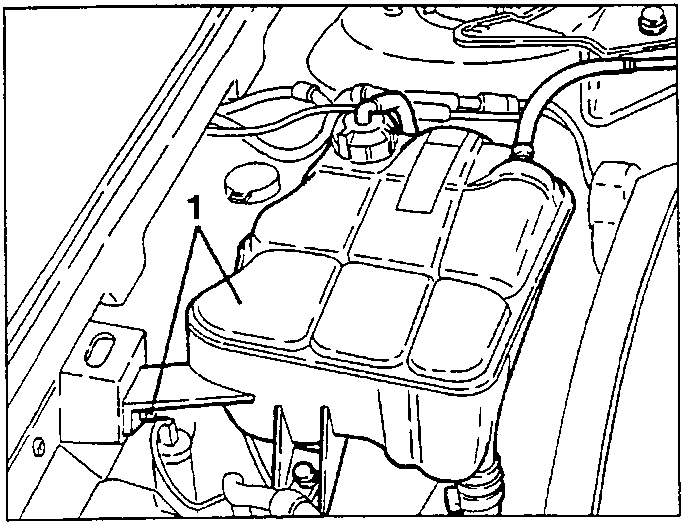

Illustration showing header tank being moved aside while connected to piping
  1. Raise the car and working as illustrated on the belt tensioner loosen the tension of the auxiliary components drive belt and remove it.
  2. Slacken the four fastening screws and remove the auxiliary components drive pulley.

24 ÷ 29 Nm
2.4 ÷ 3.0 kgm

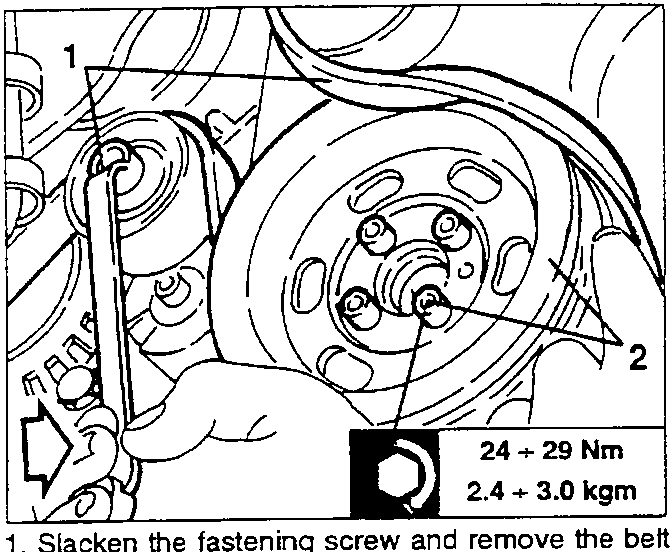

Illustration showing removal of belt tensioner, drive belt guide pulley, and lower cover of timing gear and counter-rotating shaft drive belts
1. Slacken the fastening screw and remove the belt tensioner.
2. Slacken the fastening screw and remove the auxiliary components drive belt guide pulley.
3. Slacken the fastening screws and remove the lower cover of the timing gear and counter-rotating shaft drive belts.
  • Slacken the lower screws of the upper cover of the timing gear and counter-rotating shaft drive belts.
    1. Lower the car, slacken the fastening screws and remove the upper cover.

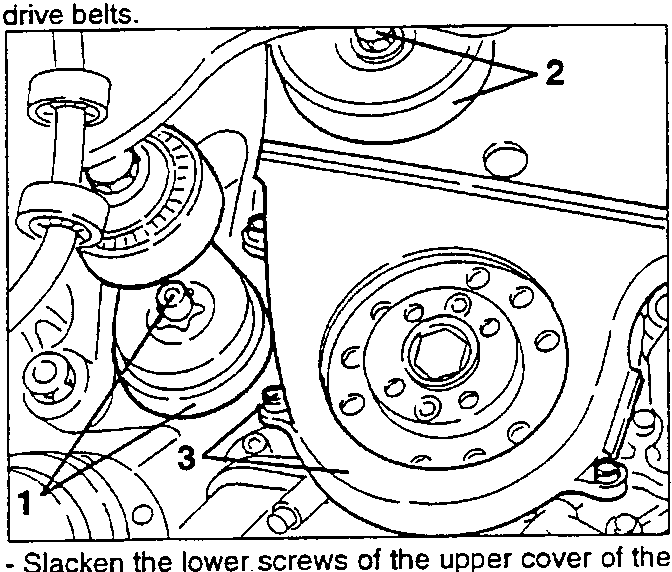

Illustration showing removal of upper cover of timing gear and counter-rotating shaft drive belts

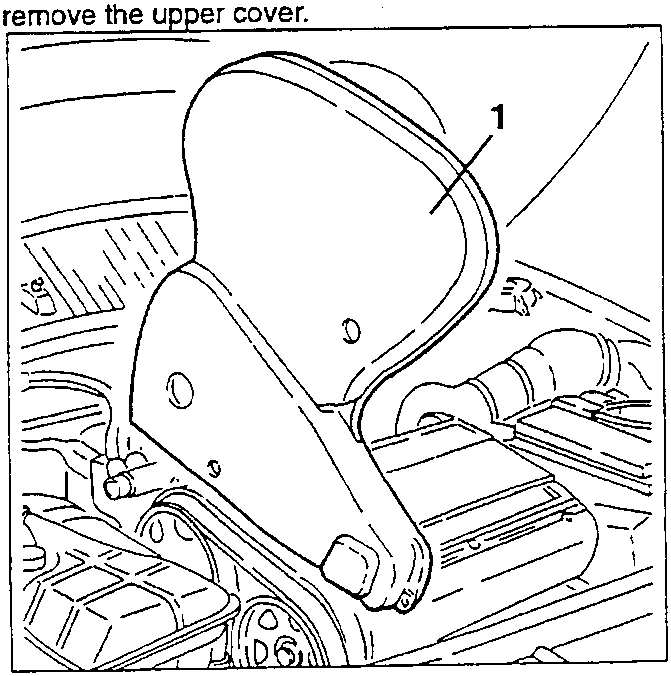

Illustrates removal of upper engine cover component
