Guard under engine

GUARD UNDER ENGINE

REMOVING/REFITTING

• Set the car on a lift and raise it.

1. Remove the two plastic buttons fastening the guard under the engine to the body.
2. Slacken the six fastening screws and remove the guard under the engine.

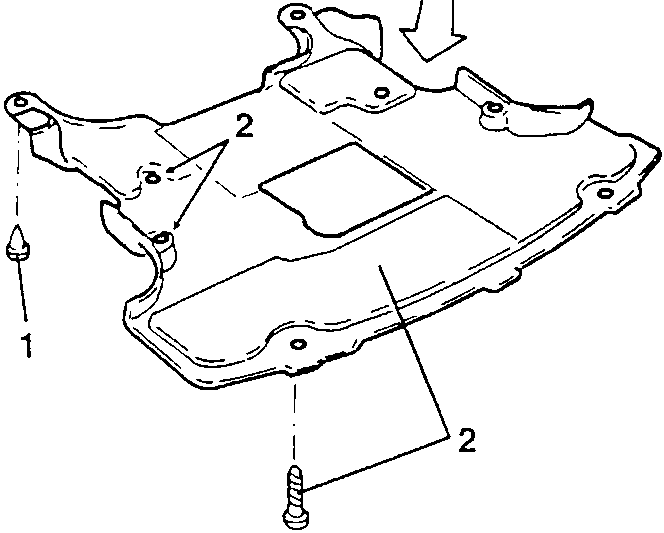

1. Fastening screw
2. Guard under engine

WHEEL HOUSE GUARDS

REMOVING/REFITTING

• Set the car on a lift and raise it.
• Turn the wheel just enough to gain access to the left guard.

1. Disconnect the electrical connection of the brake pad wear signalling cable and remove the latter from the hole on the left guard.
2. Slacken the fastenings and remove the left wheel house guard.

• Carry out the same procedure for removing/refitting the right wheel house guard.

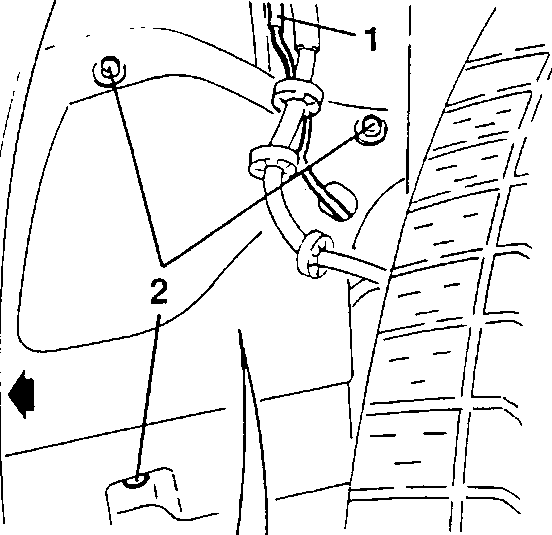

1. Brake pad wear signalling cable
2. Wheel house guard

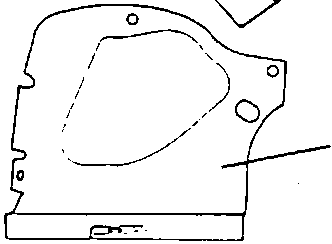

1. Wheel house guard
