EngineRemoval/Refitting (Twin Spark 16V) · page 2 of 2

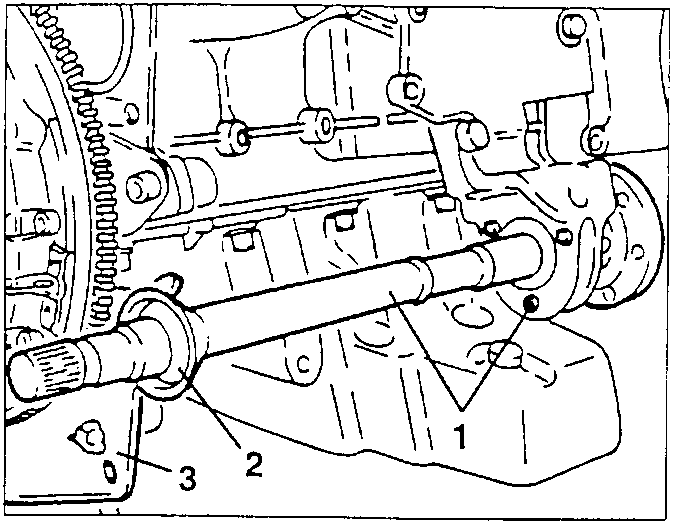

  1. Slacken the three fastening screws and remove the intermediate shaft.
  2. Remove the dust guard ring.
  3. Retrieve the lower flywheel guard.
Engine with intermediate shaft, dust guard ring, and lower flywheel guard shown with callouts 1, 2, and 3

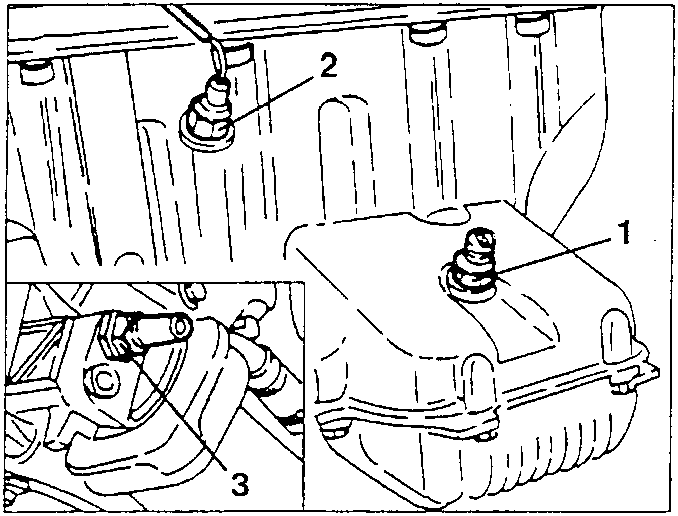

  1. Slacken and remove the engine oil temperature sensor.
  2. Slacken and remove the engine oil minimum level sensor.
  3. Slacken and remove the engine oil minimum pressure sensor.
Engine oil sensors shown with callouts 1, 2, and 3

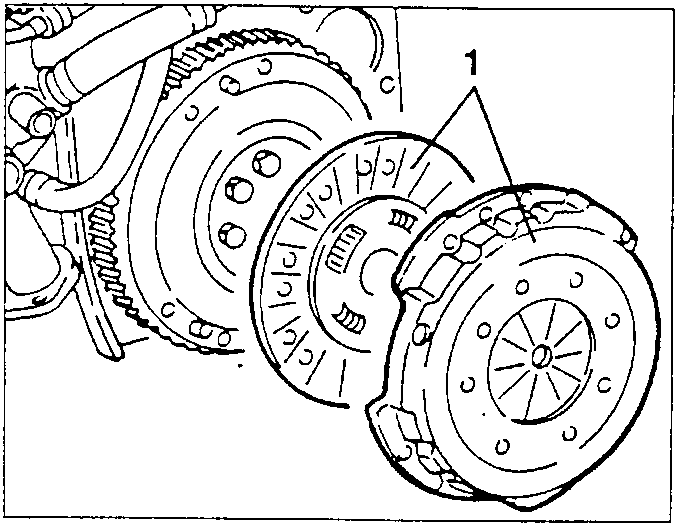

  1. Slacken the fastening screws and remove the pressure plate body and clutch plate.
Clutch assembly showing pressure plate body and clutch plate with callout 1

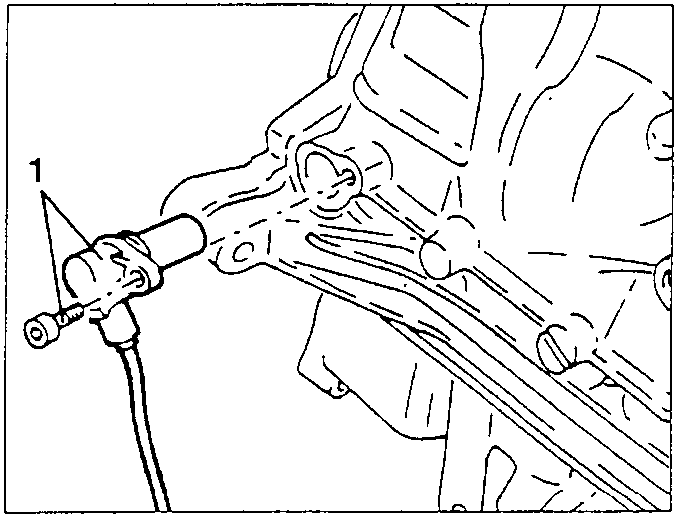

  1. Slacken the fastening screw and remove the rpm sensor.
Rpm sensor shown with callout 1

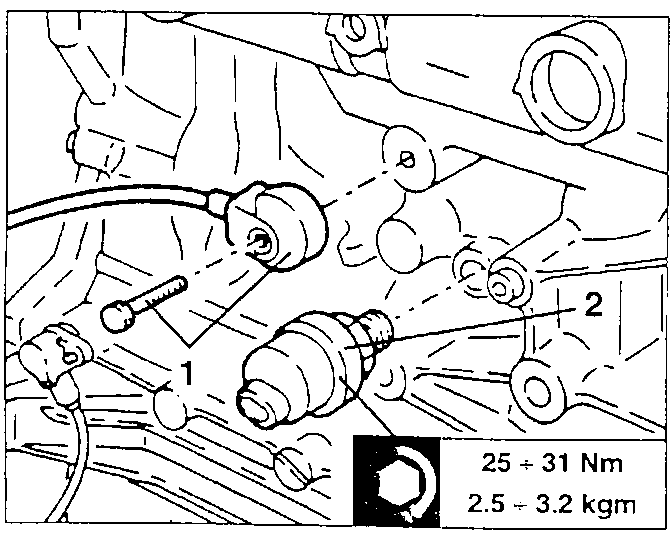

  1. Slacken the fastening screw and remove the pinging sensor from the crankcase.
  2. Remove the engine oil pressure meter.
Engine oil pressure meter and pinging sensor shown with callouts 1 and 2

25 ÷ 31 Nm
2.5 ÷ 3.2 kgm
